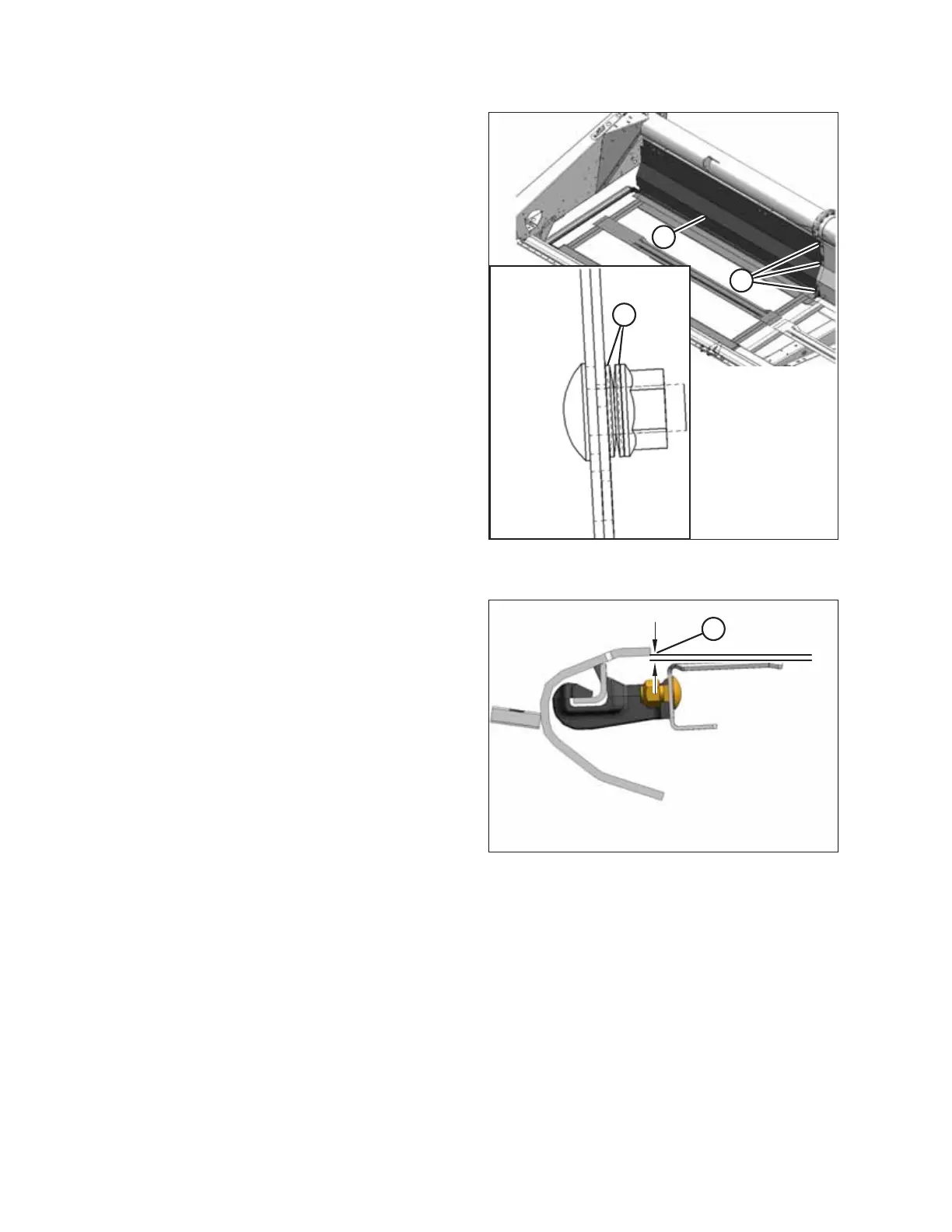

Figure 3.199: Deck Extension Backsheet, Existing
Backsheet, and Belleville Washers
13. Attach deck extension backsheet (A) to existing backsheet
with existing hardware (B). Position Belleville washers (C)
as shown.
Figure 3.200: Deck Height Gap
14. Adjust deck height to obtain clearance (A) of 7–11 mm
(1/8–7/16 in.) between top of deck and inside cutterbar
(i.e., the thickness of the draper plus 3 mm).
15. Tighten all hardware except support casting hardware.
