215184 130 Revision A

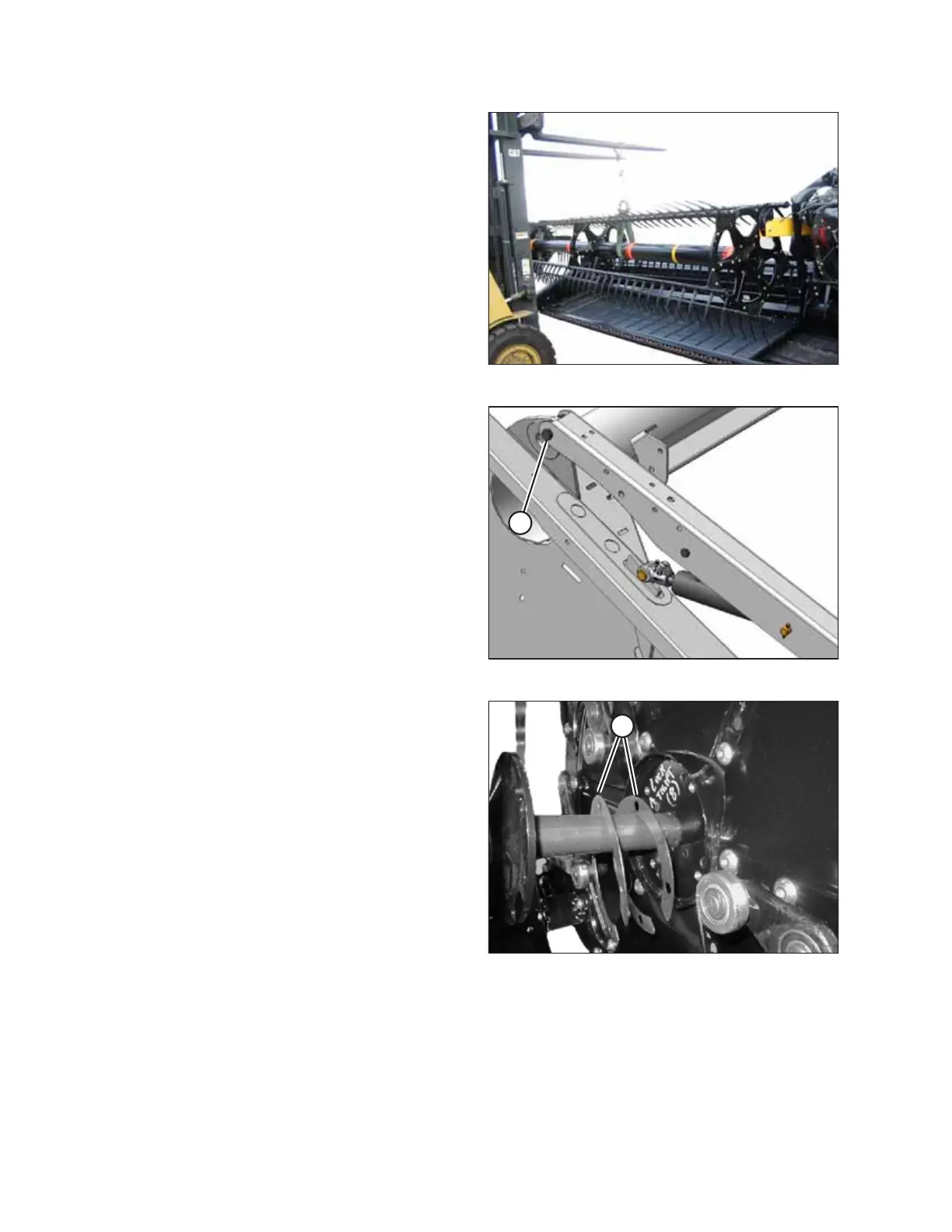

Figure 3.275: Forklift and Sling
4. Position sling around right reel tube at approximately the
center disc and attach to a forklift (or equivalent).
Figure 3.276: Reel Arm Pivot Bolt
5. Ensure bolt (A) at right reel arm pivot is loose.
6. Carefully position reel in header. At right arm, line up shaft
on reel arm with hole in reel tube until it engages reel tube
slightly.
Figure 3.277: Right Reel
7. Insert shims (A) (as determined in Step 2, page 129) at cam
end of the right reel, and fully engage reel tube onto shaft.
Shims are supplied in hardware bag B.
ASSEMBLING THE HEADER AND FLOAT MODULE
