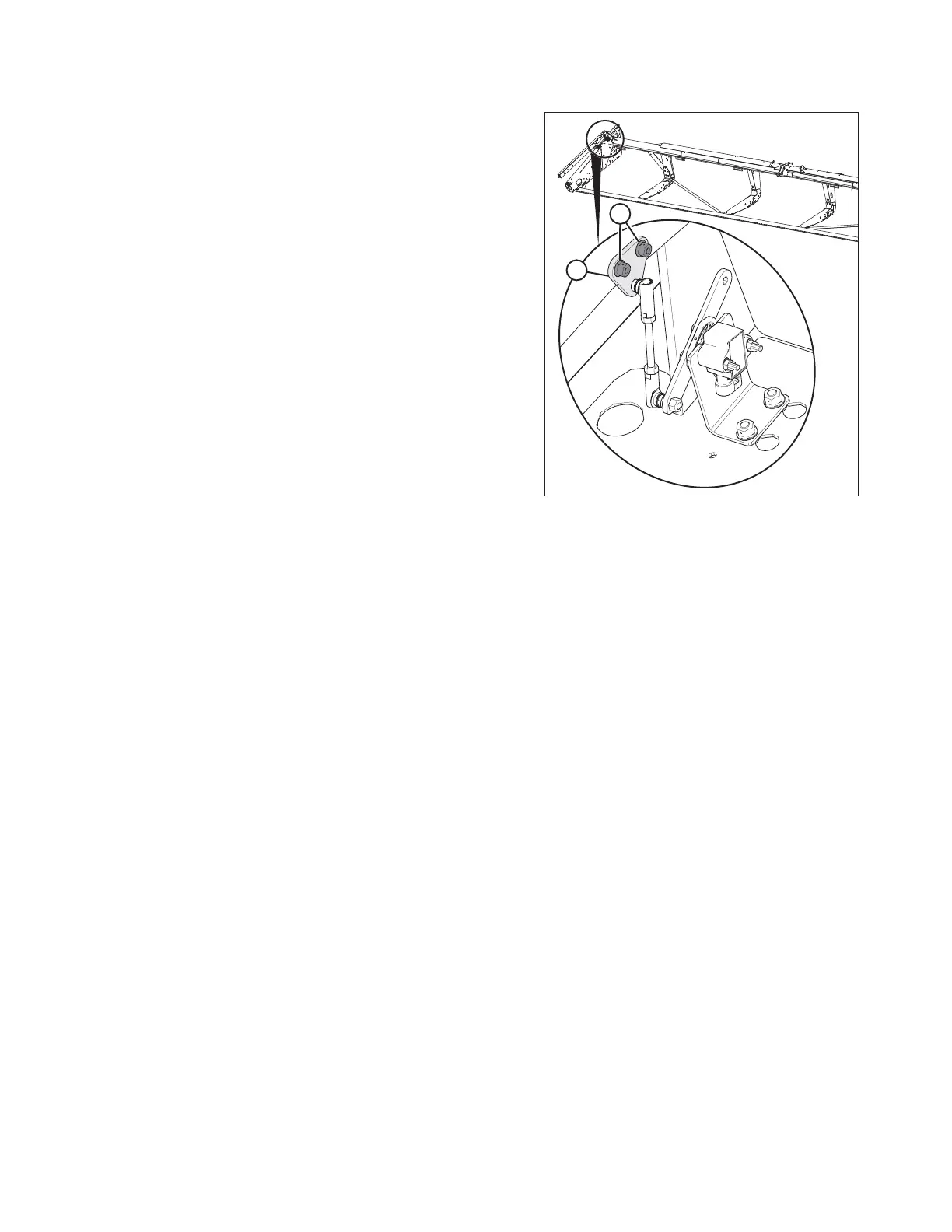

Figure 3.286: Reel Height Sensor
3. Attach reel height sensor plate (A) to reel arm with existing
bolts and nuts (B). Torque to 8.2 Nm (6 lbf·ft).
4. Proceed to 3.5 Installing Reel Endshields, page 136.
ASSEMBLING THE HEADER AND FLOAT MODULE
