MacDon D1 Series - 5.4 Unloading with a Crane

215184 137 Revision A
1010407

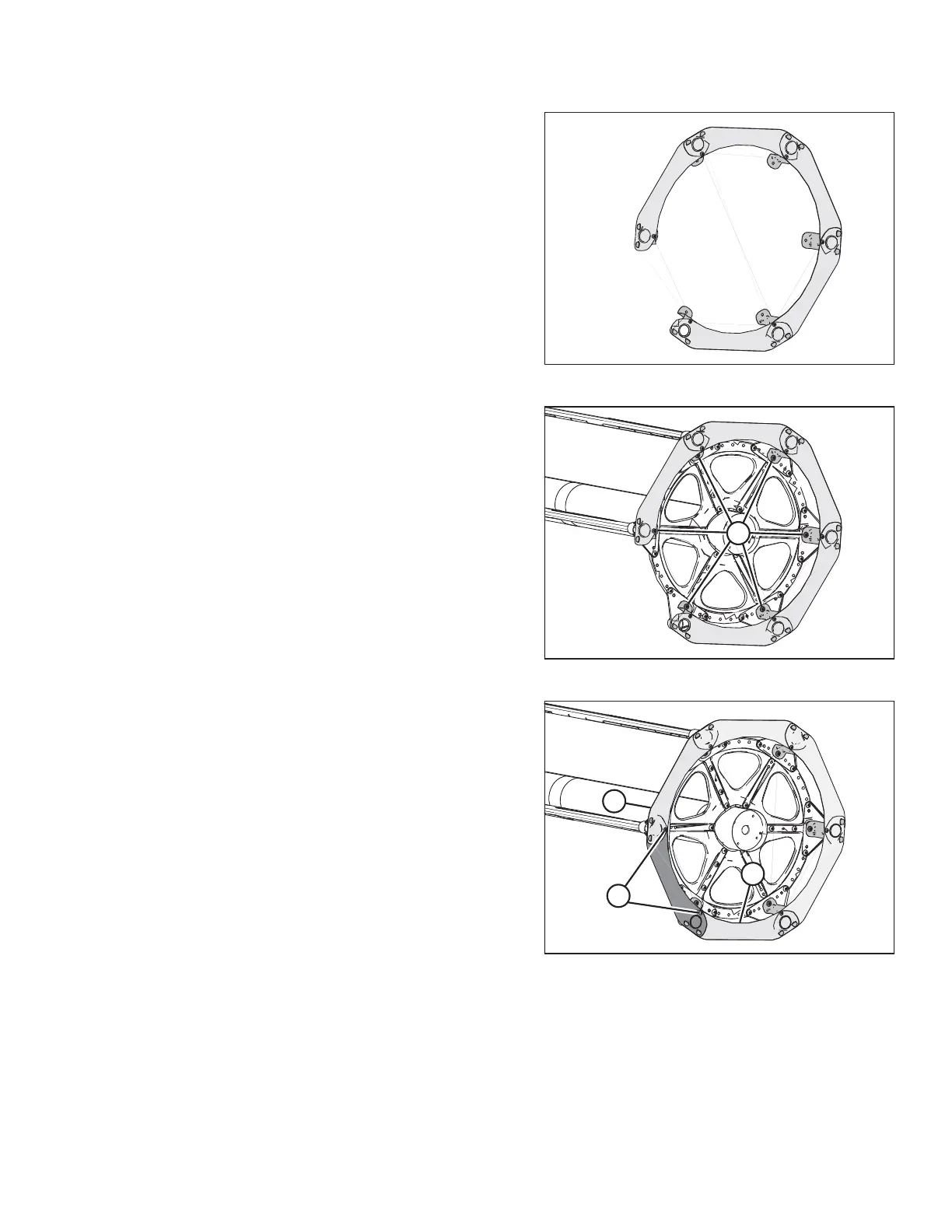

Figure 3.290: Partially Assembled Endshield
7. Repeat Step 5, page 136 and Step 6, page 136 for
remaining segments leaving last segment uninstalled.
1010397
A
Figure 3.291: Partially Assembled Endshield on Reel
8. Position partially assembled endshield onto reel.
9. Remove two 3/8 x 3/4 in. long Torx
®
bolts (A) and retain for
reinstallation.
1010438
C
A
B
Figure 3.292: Last Segment
10. Position last segment over segment (A) and under first
segment (B).
NOTE:
If necessary, loosen hardware and use a pry tool to secure
last segment in place.
11. Engage endshield support tabs through segments, and
reinstall two 3/8 x 3/4 in. long Torx
®
bolts (C) removed in
Step 9, page 137.
ASSEMBLING THE HEADER AND FLOAT MODULE
