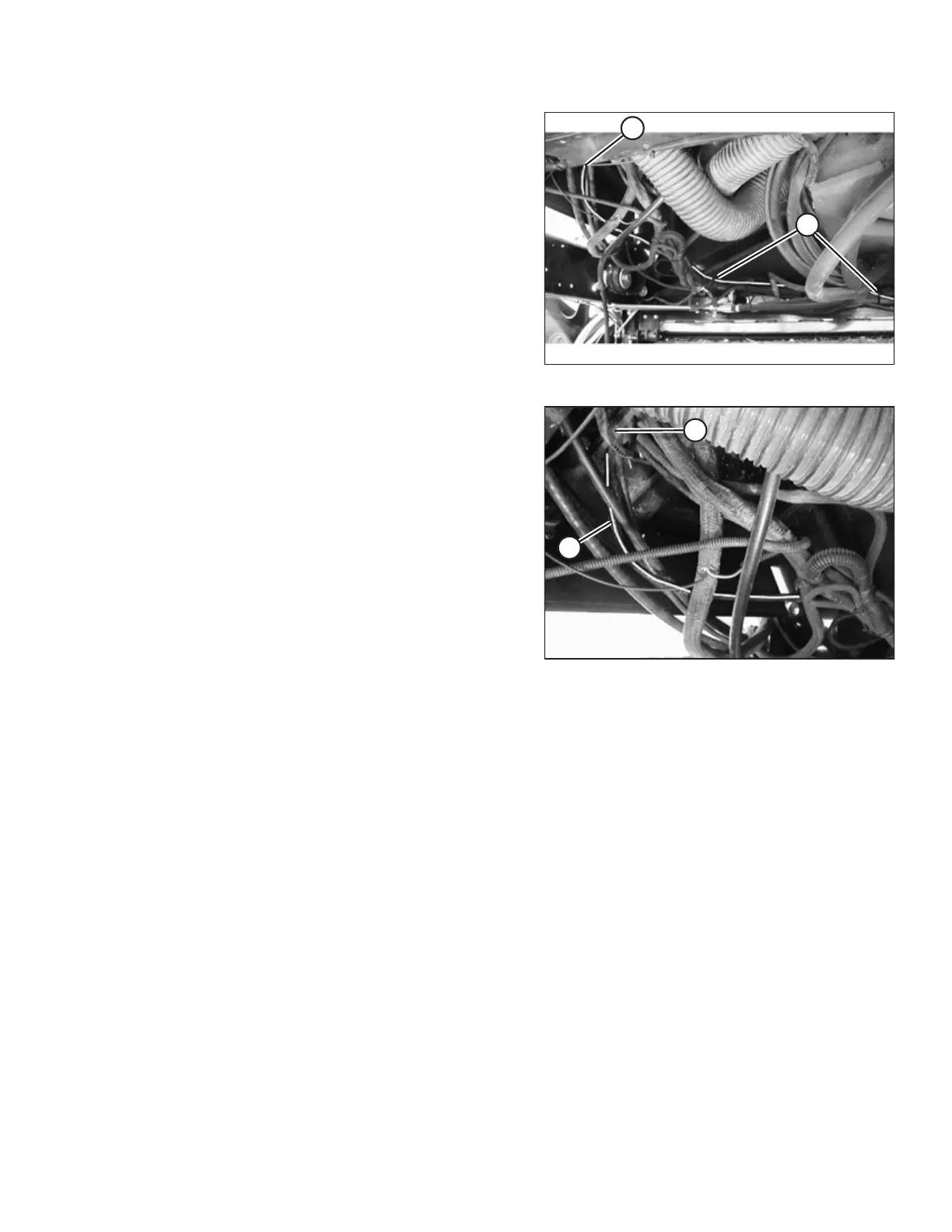

Figure 7.15: Harness under Right Side of Cab Floor
7. Use cable ties (MD #16661) to fasten cab draper extension
harness (A) to the main harness under the cab floor at
location (B).
Figure 7.16: Harness through Cab Floor
8. Route cab draper extension harness (A) under the cab,
through the cab floor, and into console at foam seal (B).
ATTACHING HEADER TO COMBINE
