215184 235 Revision A

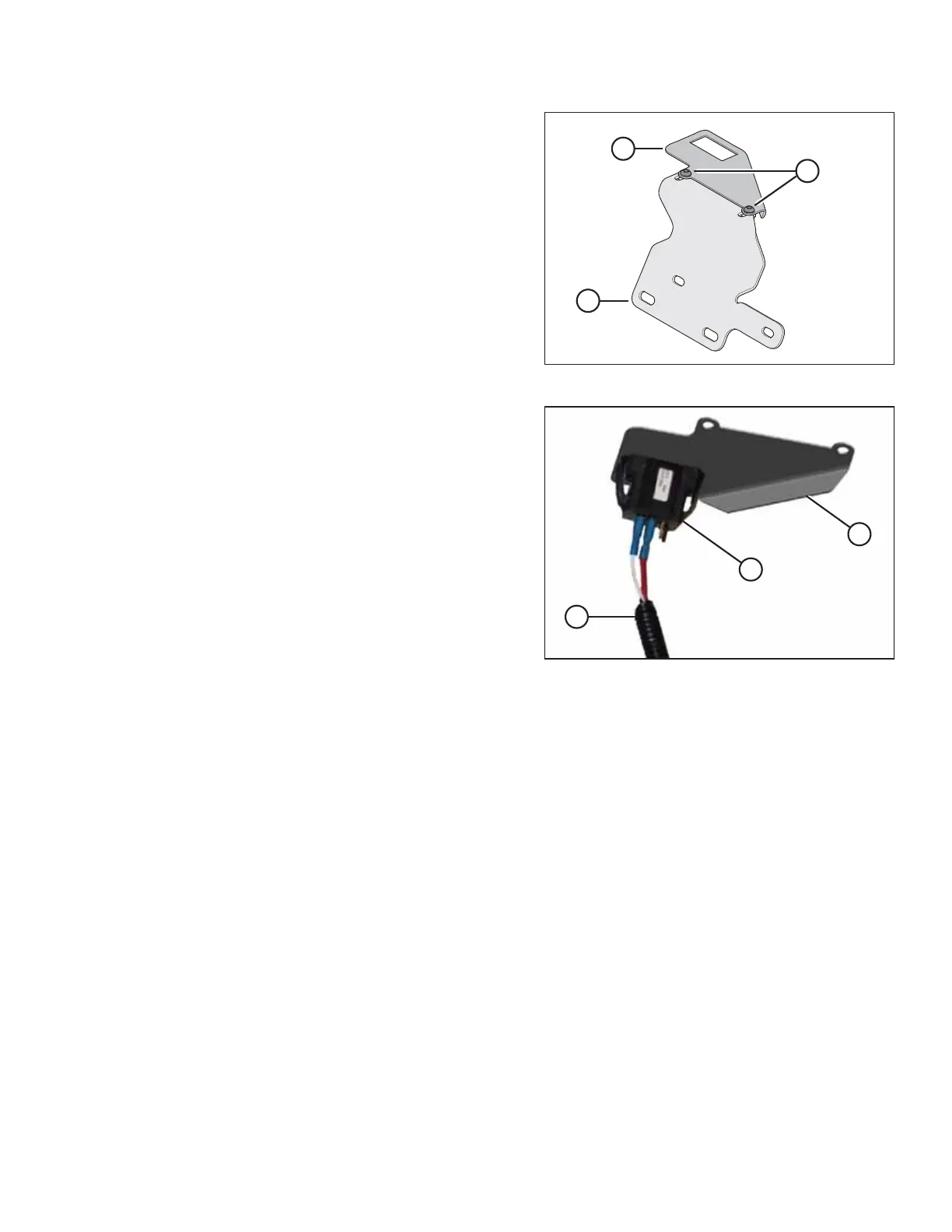

Figure 7.71: Supports for S7 and T7 Series Combines
15. For S7 and T7 Series combines only: Secure rocker switch
support (A) (MD #220734) to tilt/draper speed support (B)
(MD #304111) with two M6 hex socket head screws (C)
(MD #136886) and two M6 hex flange lock nuts
(MD #152668).
Figure 7.72: Switch and Harness
16. Install rocker switch (A) (MD #109064) into rocker switch
support (C) from the top. Ensure the lugs on the underside
of the support have secured the switch.
NOTE:
The tilt/draper speed support needed for S7 and T7 Series
combines is not shown in the illustration.
17. One branch of cab draper control harness (B) ends in two
terminals: T242 and T243. Connect one terminal to the
center terminal on rocker switch (A) and the other to either
outer terminal. The color of the wires does not matter.
For more information, refer to Figure 7.73, page 236.
