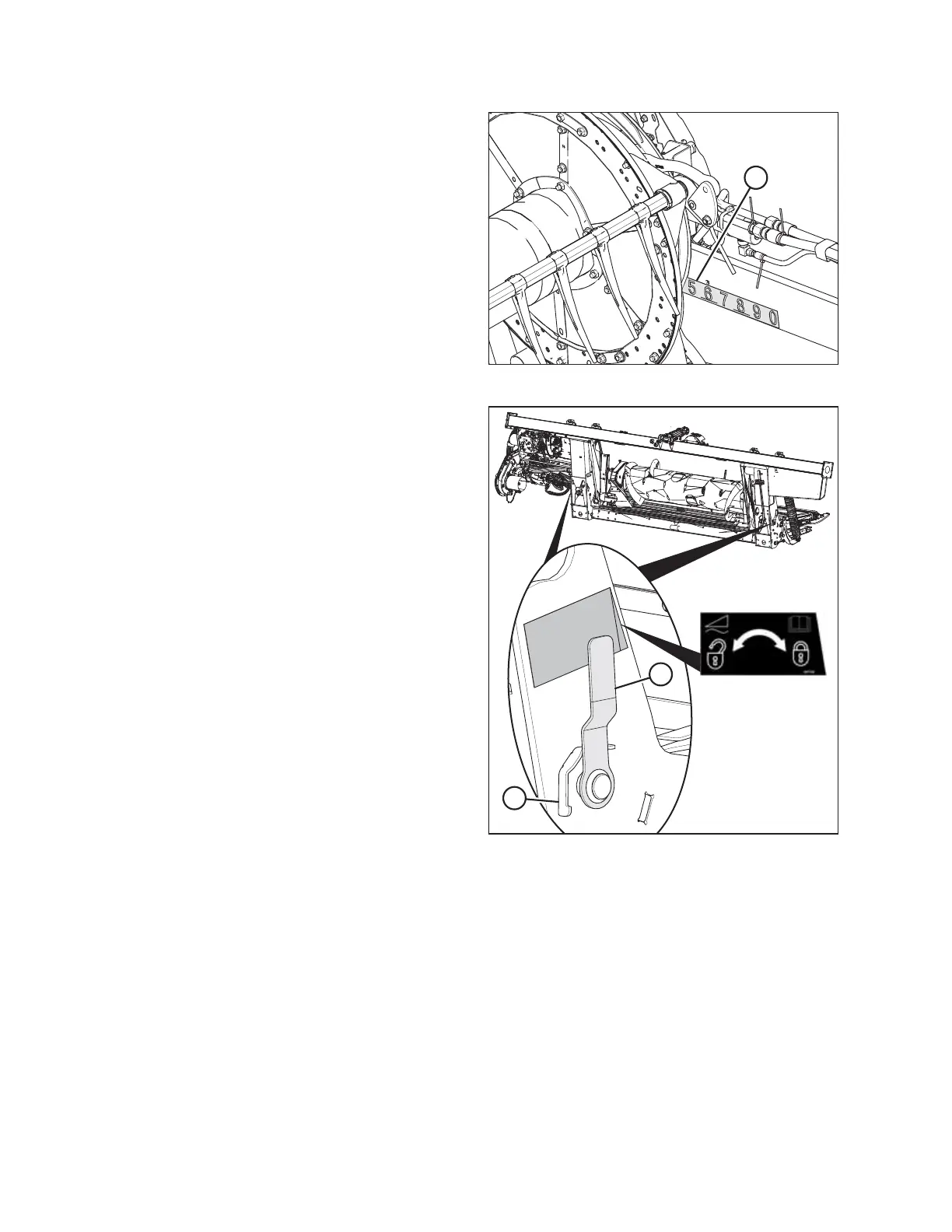

Figure 8.21: Fore-Aft Position
5. Adjust the reel fore-aft position to between 5 and 6 on
position indicator decal (A) located on the reel right arm.
6. Lower the reel fully.
7. Shut down the engine, and remove the key from the
ignition.
Figure 8.22: Header Float Lock in Locked Position
8. Disengage both header float locks by pulling float lock
handle (A) away from the float module and pushing the
float lock handle down and into position (B) (UNLOCK).
PERFORMING PREDELIVERY CHECKS
