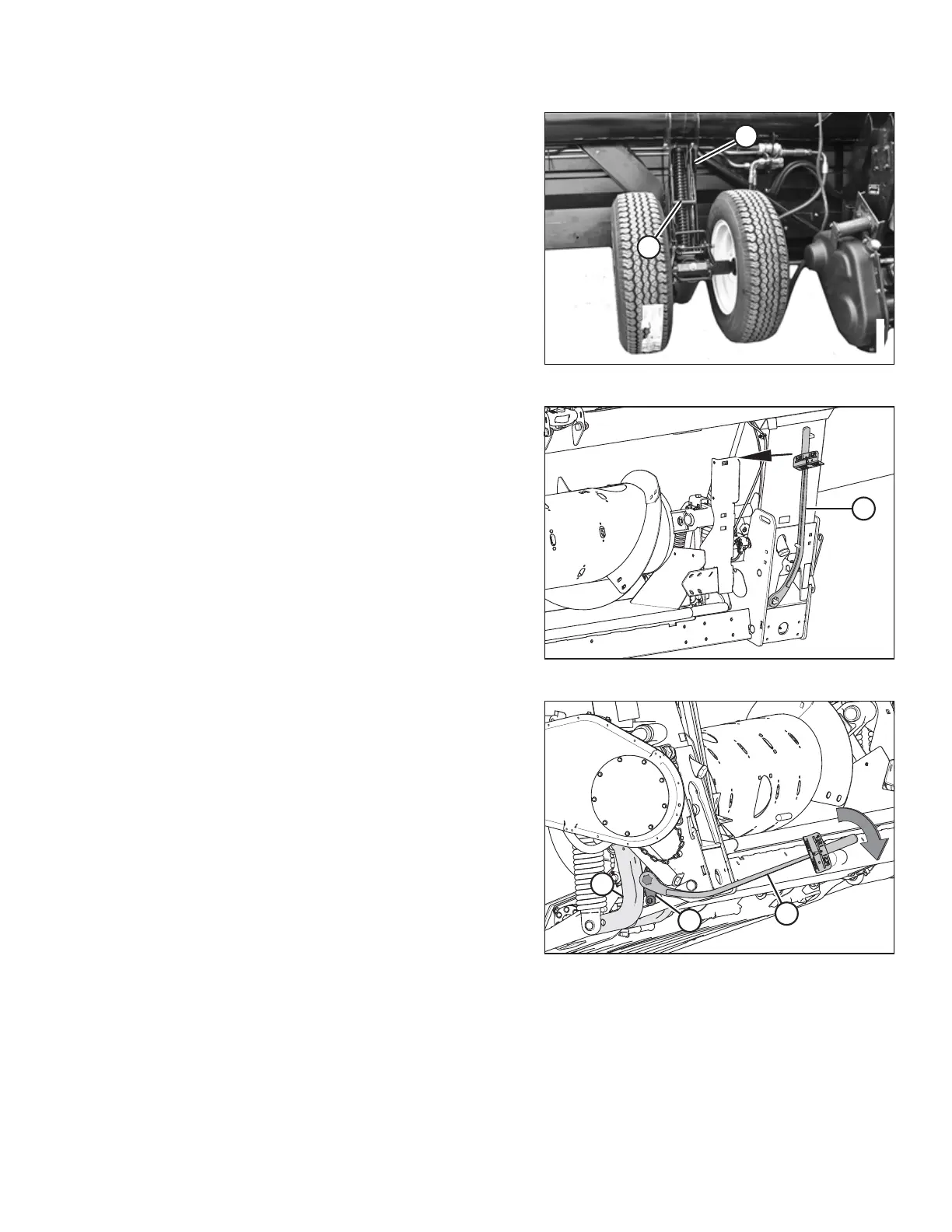

Figure 8.23: Left Wheel
9. Place stabilizer wheels and slow speed transport wheels (if
equipped) in storage position as follows:
a. Support the wheel weight by lifting slightly with one
hand, and pull up on handle (A) to release the lock.
b. Lift the wheels to the desired height, and engage the
support channel into slot (B) in the upper support.
c. Push down on handle (A) to lock.
Figure 8.24: Torque Wrench Storage Location
10. Remove supplied torque wrench (A) from its storage
position at the right side of the float module frame. Pull in
the direction shown to disengage the wrench from
the hook.
Figure 8.25: Float Module – Left Side
11. Place torque wrench (A) onto float lock (B). Note the
position of the wrench for checking left or right side.
12. Push down on wrench to rotate bell crank (C) forward.
