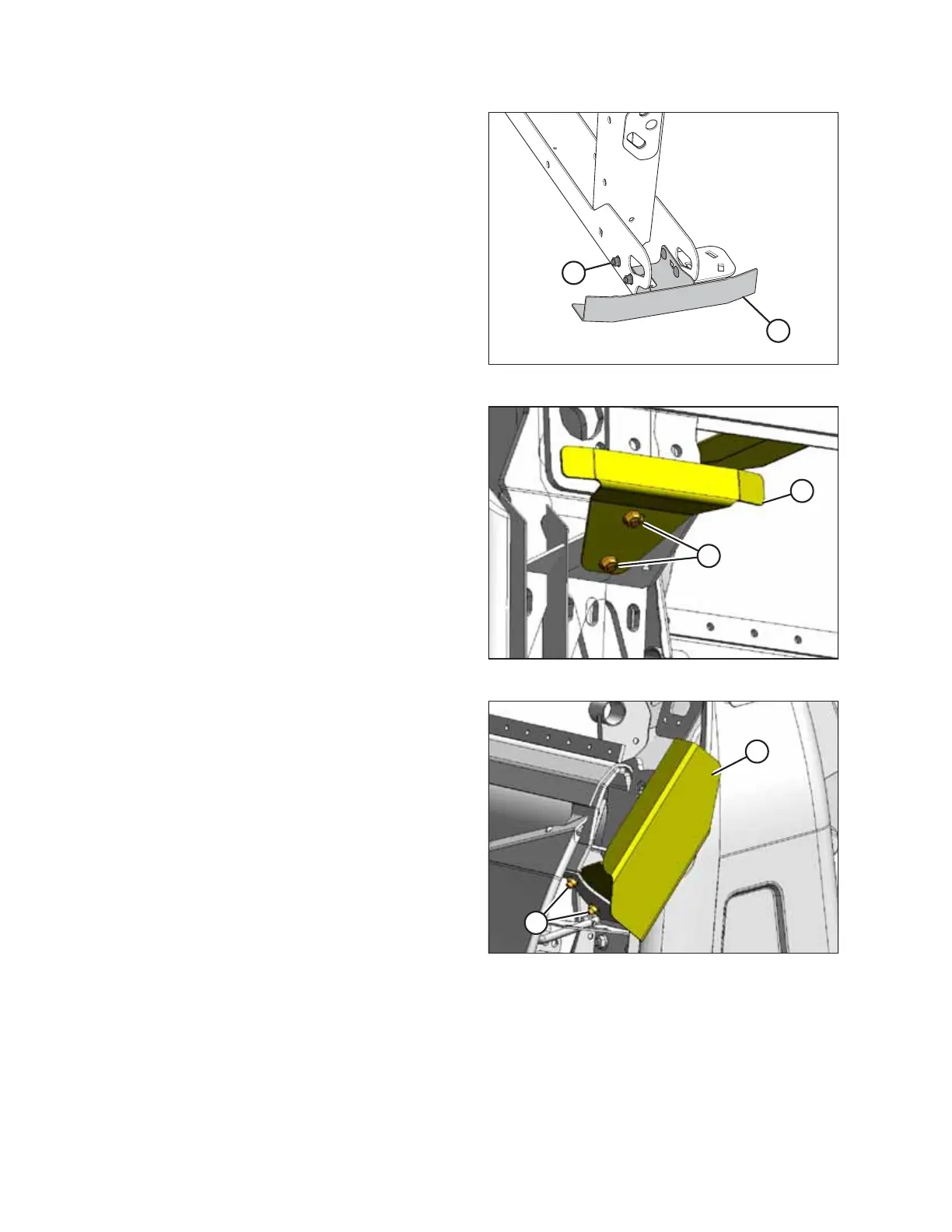

Figure 2.5: Guide
4. Remove four bolts (A), and remove guides (B) from shipping
legs at two places.
Figure 2.6: Wall Guide
5. Remove two bolts (A), and remove wall guides (B) at two
places on cutterbar (for headers without skid shoes).
Figure 2.7: Bumper – 12.2–13.7 m (40–45 ft.) Header
Shown, Narrower Headers are Similar
6. Remove two bolts (A), and remove bumper(s) (B).
NOTE:
When headers of equal length are attached for shipping,
each header has a bumper. When headers of unequal
length are attached, only the longest header has a bumper.
