MacDon D1 Series - Page 33

215184 9 Revision A
1008270
A
B
C

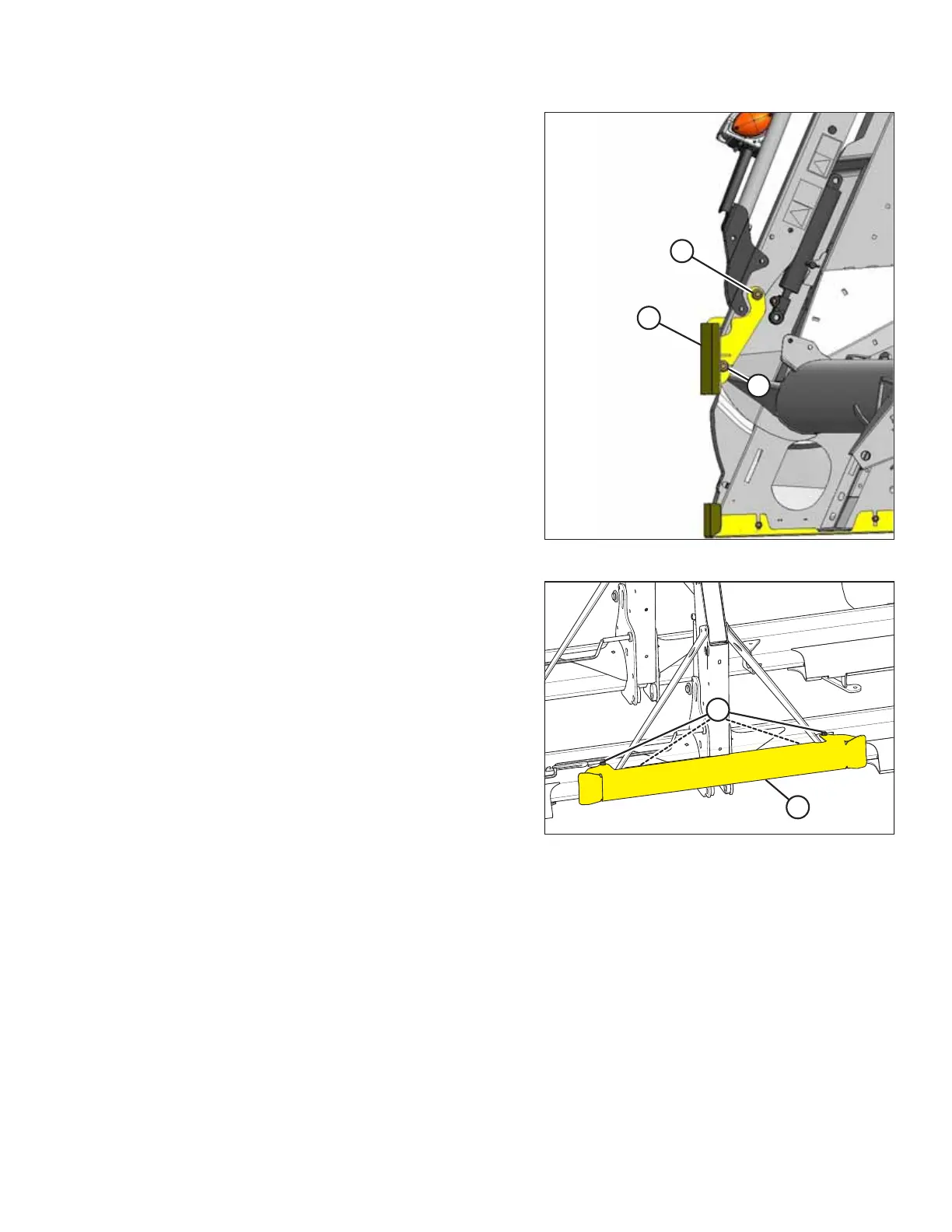

Figure 2.8: Reel Arm Guide
7. Loosen lower bolt (A), remove upper bolt (B), and remove
guide (C) from reel arm.
8. Repeat for the opposite reel arm.
1010266
A
B
Figure 2.9: Center Arm Wall Guide
9. Double reel only: Remove four bolts (A) and remove center
arm wall guide (B).
UNLOADING THE HEADER
