MacDon D1 Series - Page 34

215184 10 Revision A
1008272
A
A
B

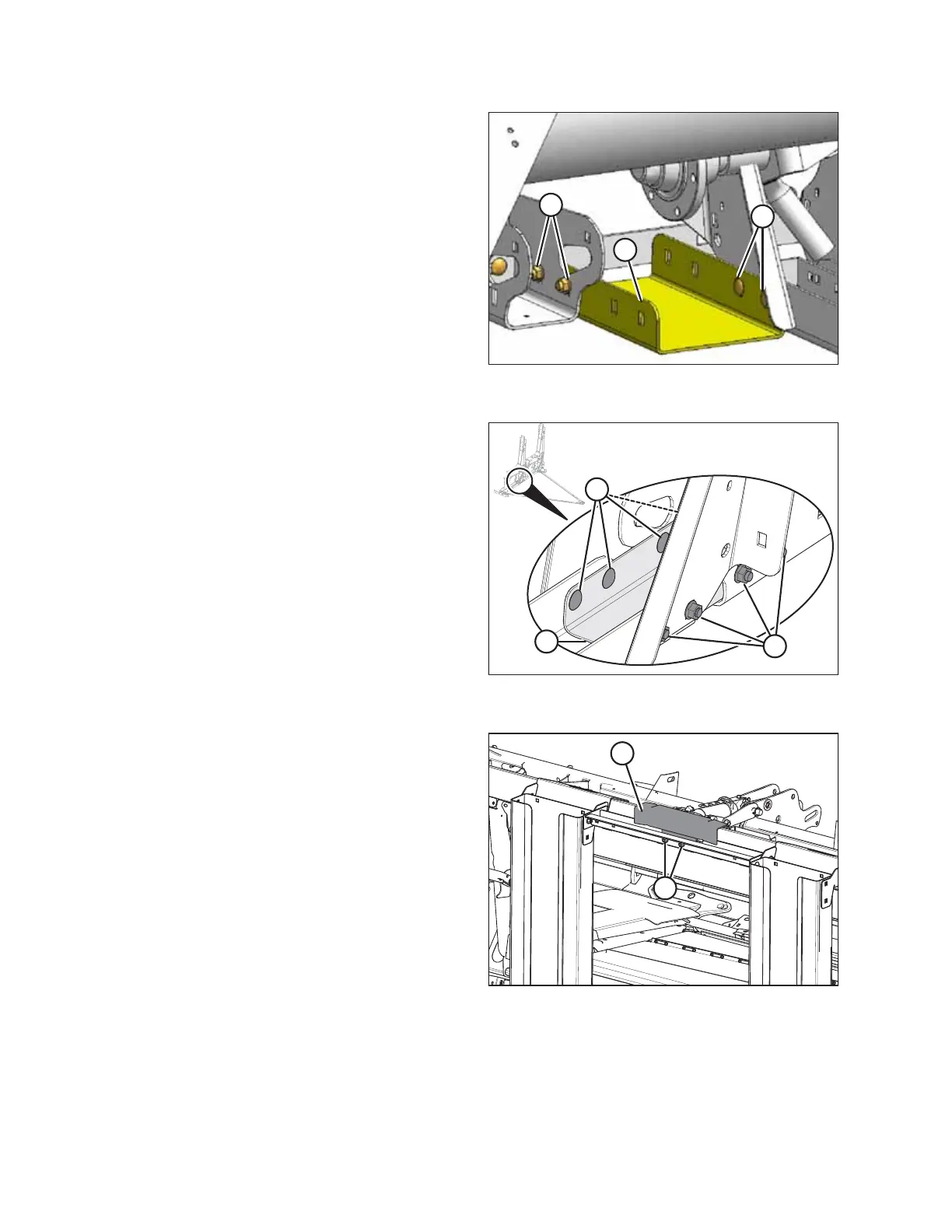

Figure 2.10: Leg Shipping Connector – Staggered
Connection
10. For staggered connection: Remove four bolts (A), and
remove leg shipping connectors (B) at two places.
1020080
A
B
A
Figure 2.11: Leg Shipping Connector – In-Line
Connection
11. For in-line connection: Remove eight bolts (A), and remove
leg shipping connectors (B) at two places.
A
B
1016287
Figure 2.12: Wall Guide Support
12. Remove two bolts (A) and remove wall guide (B).
UNLOADING THE HEADER
