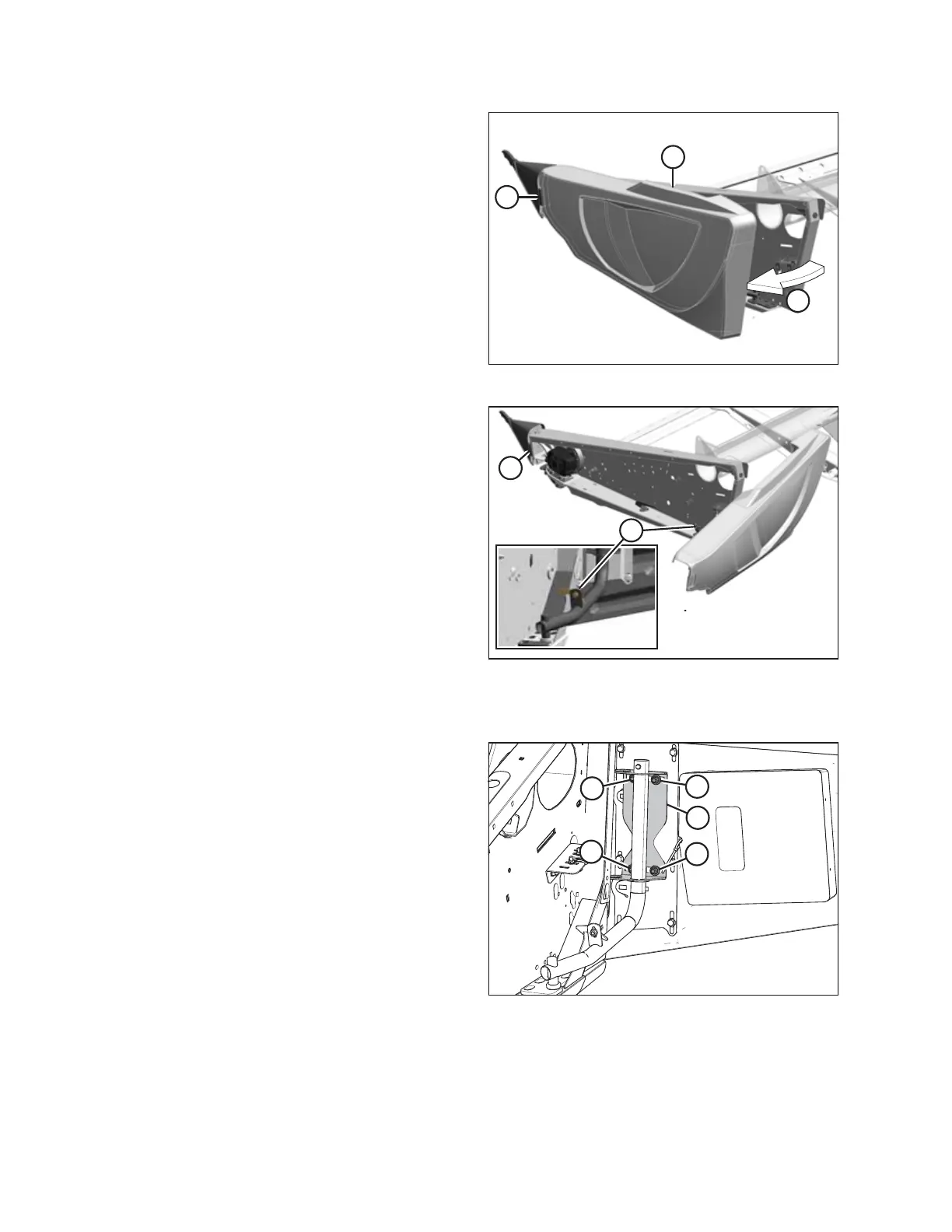

Figure 8.70: Left Endshield
3. Pull endshield at handle depression (A). Endshield is
retained by hinge tab (B) and will open in direction (C).
1012300
A
B
Figure 8.71: Left Endshield
4. Pull the endshield free of hinge tab (A) if additional
clearance is required, and swing shield towards the rear of
the header.
5. Engage safety catch (B) on hinge arm to secure the shield in
fully-open position.
Adjusting the endshield gap:
1025332
A
B
A
A
A
Figure 8.72: Left Endshield Support Tube
1. Loosen four bolts (A) on support tube bracket (B).
