215184 302 Revision A
1024276
A

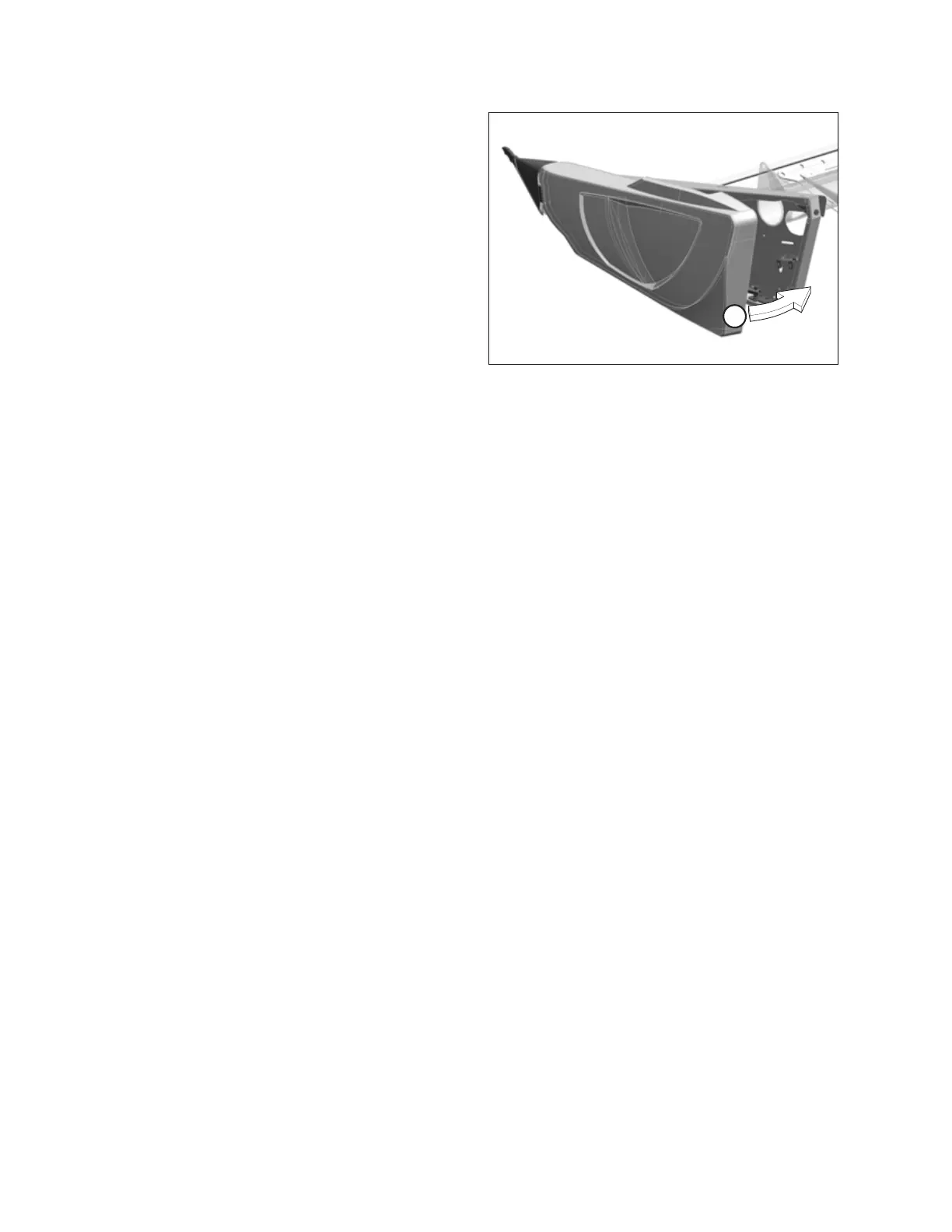

Figure 8.76: Left Endshield
3. Swing endshield in direction (A) into closed position.
Engage lock with a firm push.
4. Verify that endshield is locked.
PERFORMING PREDELIVERY CHECKS
