215184 352 Revision A

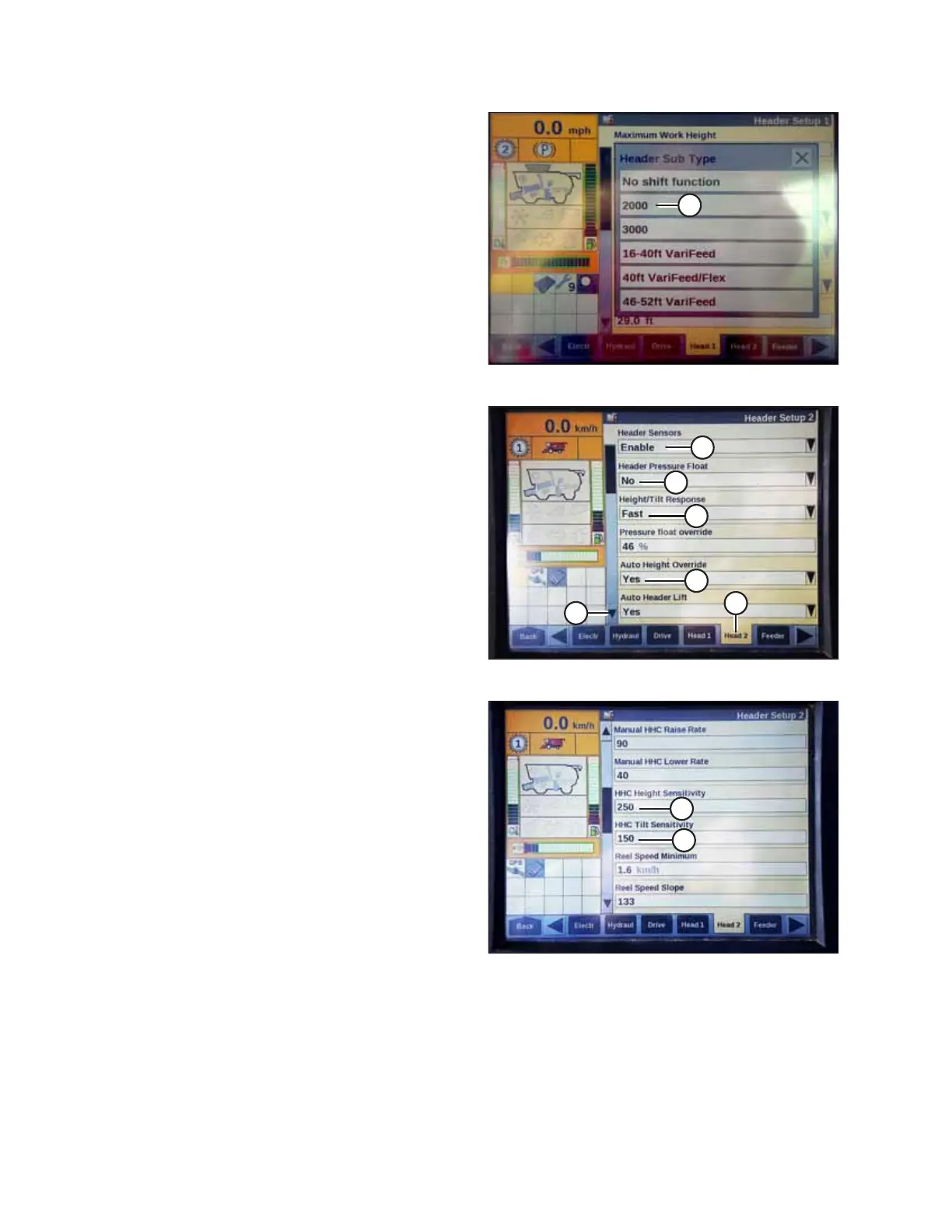

Figure 9.105: Case IH Combine Display
5. Locate the HEADER SUB TYPE field.
6. Select 2000 (A).
Figure 9.106: Case IH Combine Display
7. Select HEAD 2 tab (A).
8. In HEADER SENSORS field (B), select ENABLE.
9. In HEADER PRESSURE FLOAT field (C), select NO.
10. In HEIGHT/TILT RESPONSE field (D), select FAST.
11. In AUTO HEIGHT OVERRIDE field (E), select YES.
12. Press down arrow (F) to go to the next page.
Figure 9.107: Case IH Combine Display
13. Locate HHC HEIGHT SENSITIVITY field (A), and set as
follows:
• If using a single-sensor system: Set HHC HEIGHT
SENSITIVITY to 180.
• If using a two-sensor system: Set HHC HEIGHT
SENSITIVITY to 250.
NOTE:
If hunting occurs during operation, decrease this setting by
20 points at a time until hunting no longer occurs.
14. Set HHC TILT SENSITIVITY (B) to 150. Increase or decrease
as desired.
SETTING UP AUTO HEADER HEIGHT CONTROL
