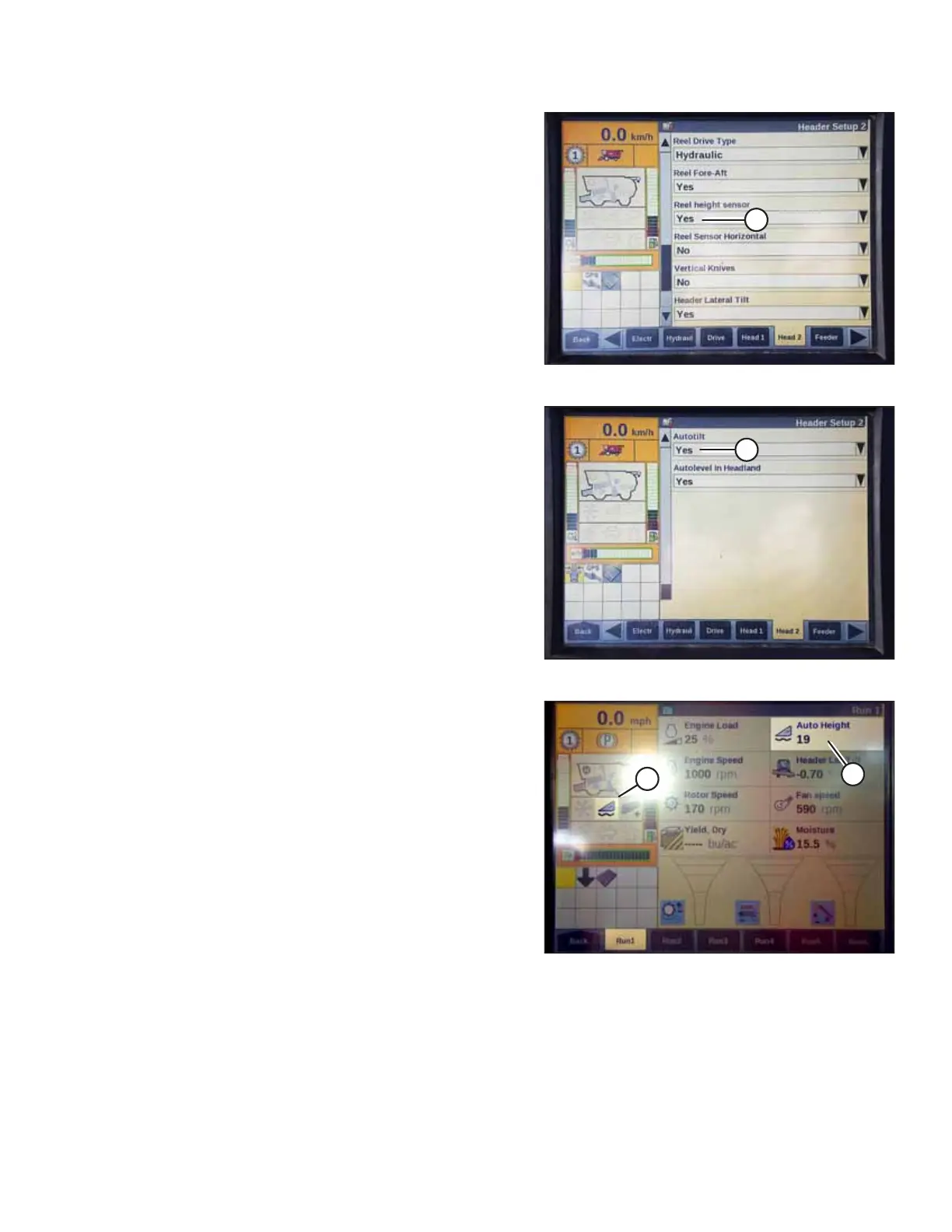

Figure 9.108: Case IH Combine Display
15. From the REEL HEIGHT SENSOR menu, select YES (A).
1025382
A
Figure 9.109: Case IH Combine Display
16. Locate AUTOTILT field (A).
• If using a two-sensor system: Select YES in the
AUTOTILT field.
• If using a single-sensor system: Select NO in the
AUTOTILT field.
1009755
A
B
Figure 9.110: Case IH Combine Display
NOTE:
Icons (A) and (B) appear on the monitor only after engaging
the separator and header, and then pressing HEADER
RESUME button on the control panel.
17. Ensure AUTO HEIGHT icon (A) appears on the monitor and
is displayed as shown at location (B). When the header is
set for cutting on the ground, this verifies that the combine
is correctly using the sensor on the header to sense ground
pressure.
NOTE:
AUTO HEIGHT field (B) may appear on any of the RUN tabs
and not necessarily on the RUN 1 tab.
SETTING UP AUTO HEADER HEIGHT CONTROL
