215184 413 Revision A

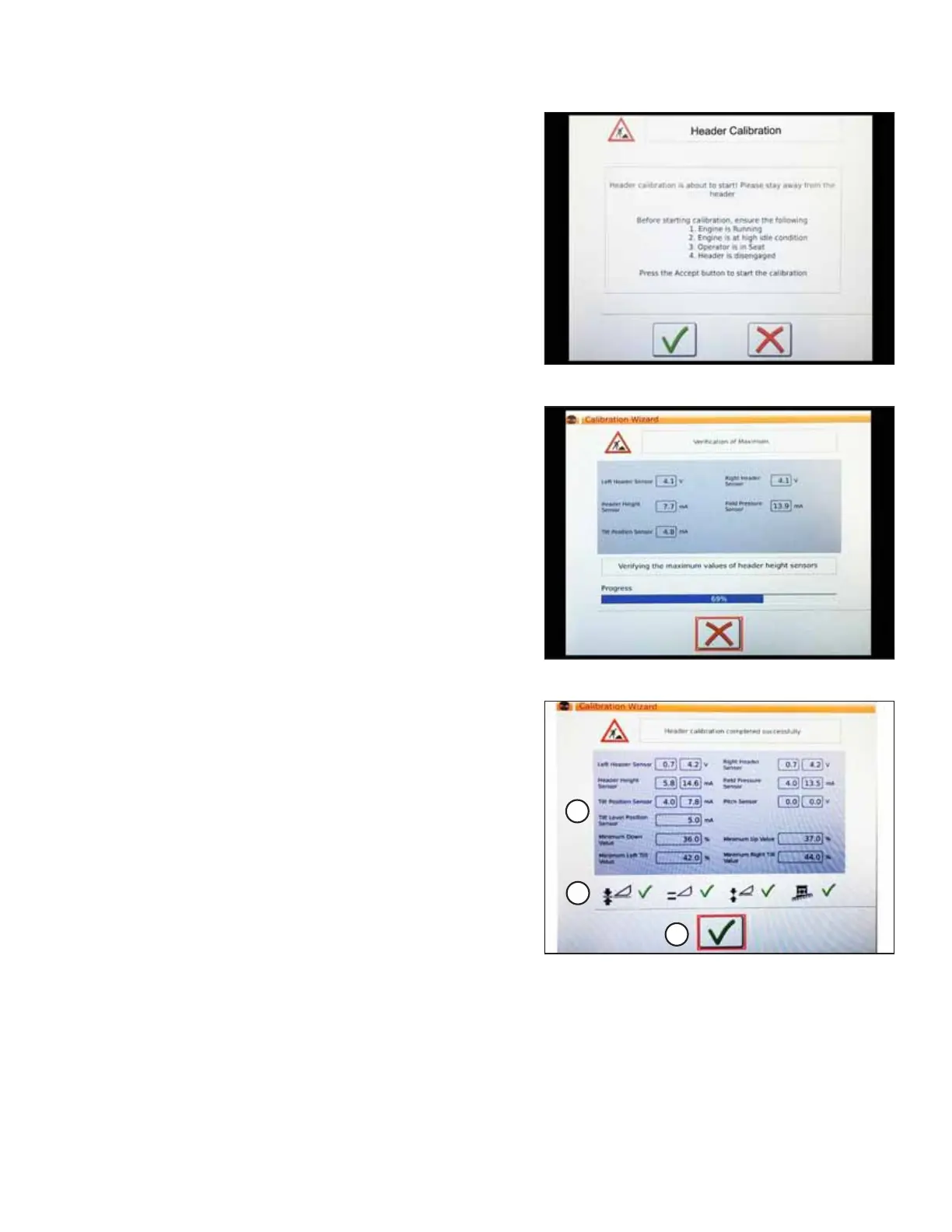

Figure 9.237: Header Calibration Warning
5. The hazard warning for HEADER CALIBRATION appears.
Make sure that all conditions are met.
6. Touch the green check mark at the bottom of the page to
start the CALIBRATION WIZARD.
Figure 9.238: Calibration in Progress
A progress bar is provided and the calibration can be
stopped at any time by touching the red X. The header
moves automatically and erratically during this process.
Figure 9.239: Completed Calibration Page
7. When the calibration is complete, a message displays, and
summary information (A) is shown. Green check marks
confirm the functions have been calibrated (B). Touch
bottom green check mark (C) to save.
SETTING UP AUTO HEADER HEIGHT CONTROL
