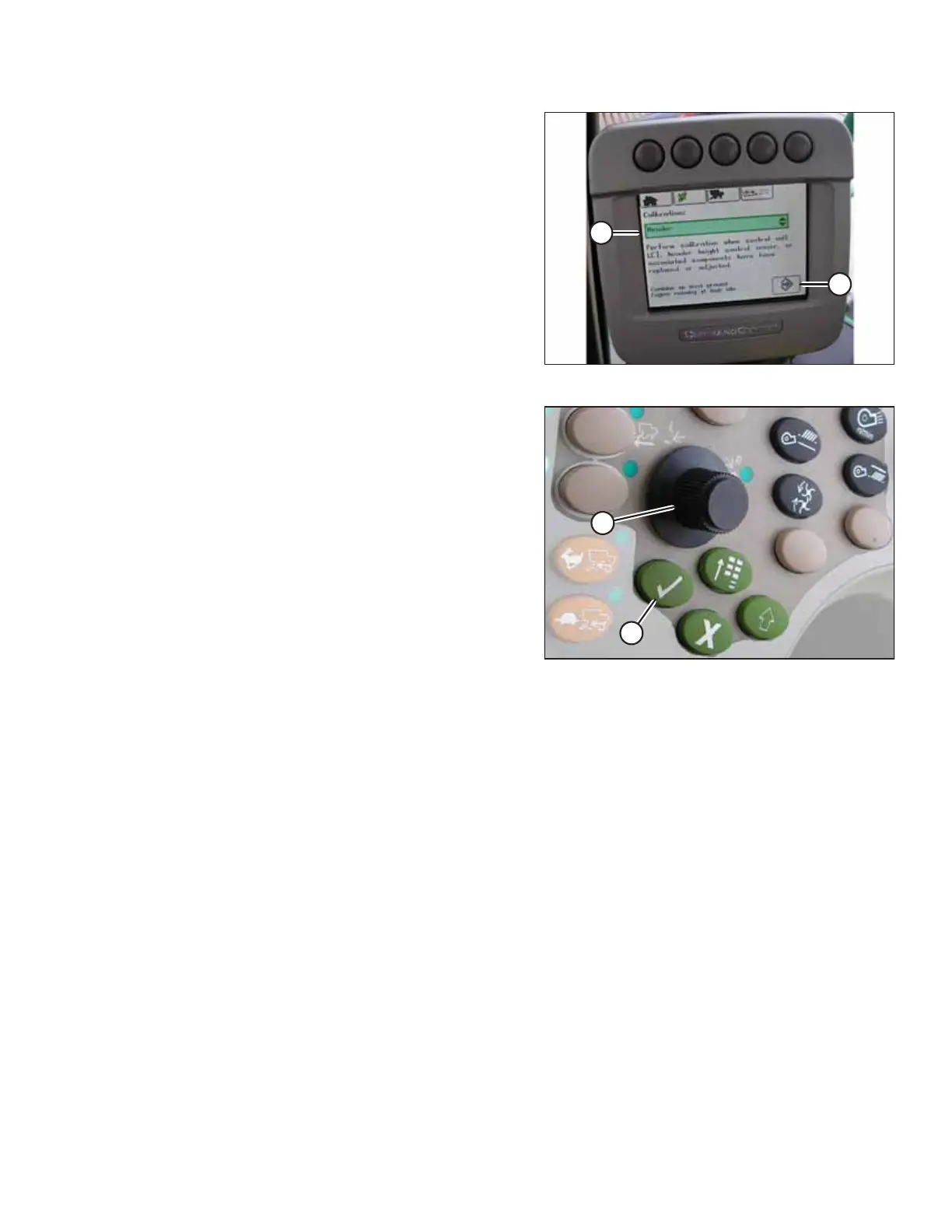

Figure 9.269: John Deere Combine Display
6. Select HEADER in box (A) by scrolling down to the box using
the scroll knob, and then pressing the check mark button
(knob and button are shown in Figure 9.270, page 429).
7. Scroll down to the lower right icon that resembles an arrow
in a diamond (B) and press the check mark button to
select it.
1003570
A
B
Figure 9.270: John Deere Combine Control Console
A - Scroll Knob B - Check Mark Button
8. Follow the steps listed on the monitor to perform the calibration.
NOTE:
If an error code appears on screen, the sensor is not in the correct working range. For instructions, refer to Checking
Voltage Range from the Combine Cab – John Deere S and T Series, page 431 to check and adjust the range.
NOTE:
If float was set heavier to complete the AHHC calibration procedure, adjust to recommended operating float after the
calibration is complete.
