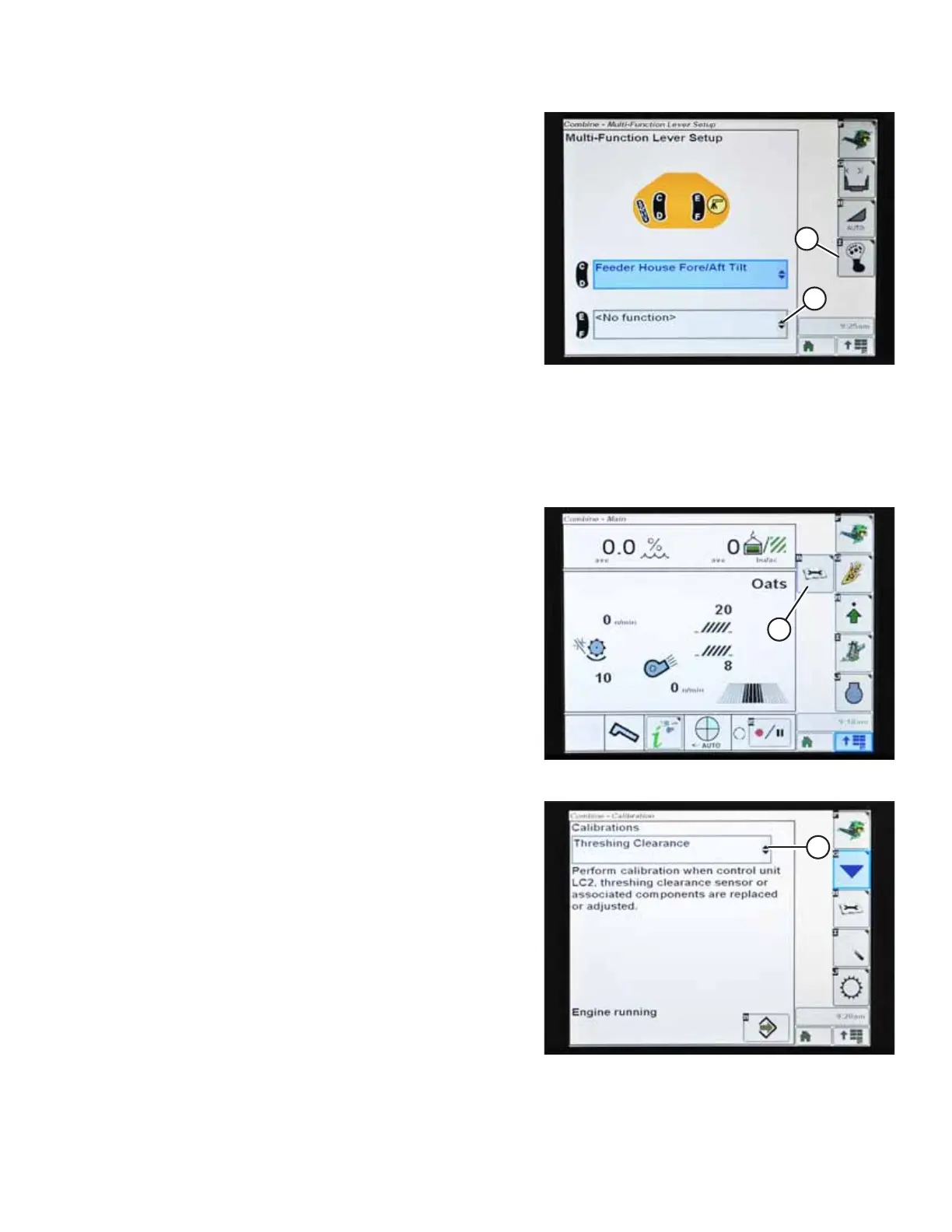

Figure 9.303: John Deere Combine Display
NOTE:
The feeder house fore/aft tilt controls can be changed to
work with buttons E and F by pressing control handle
icon (A) and then selecting FEEDER HOUSE FORE/AFT TILT
from drop-down menu (B).
To calibrate the feeder house fore-aft tilt range, follow these steps:
1. Ensure center-link is set to D.
2. Rest header on down stops and unlock float.
Figure 9.304: John Deere Combine Display
3. Press DIAGNOSTIC icon (A) on the main screen of the
monitor. The CALIBRATION screen displays.
Figure 9.305: John Deere Combine Display
4. Select CALIBRATIONS drop-down menu (A) to view the list
of calibration options.
SETTING UP AUTO HEADER HEIGHT CONTROL
