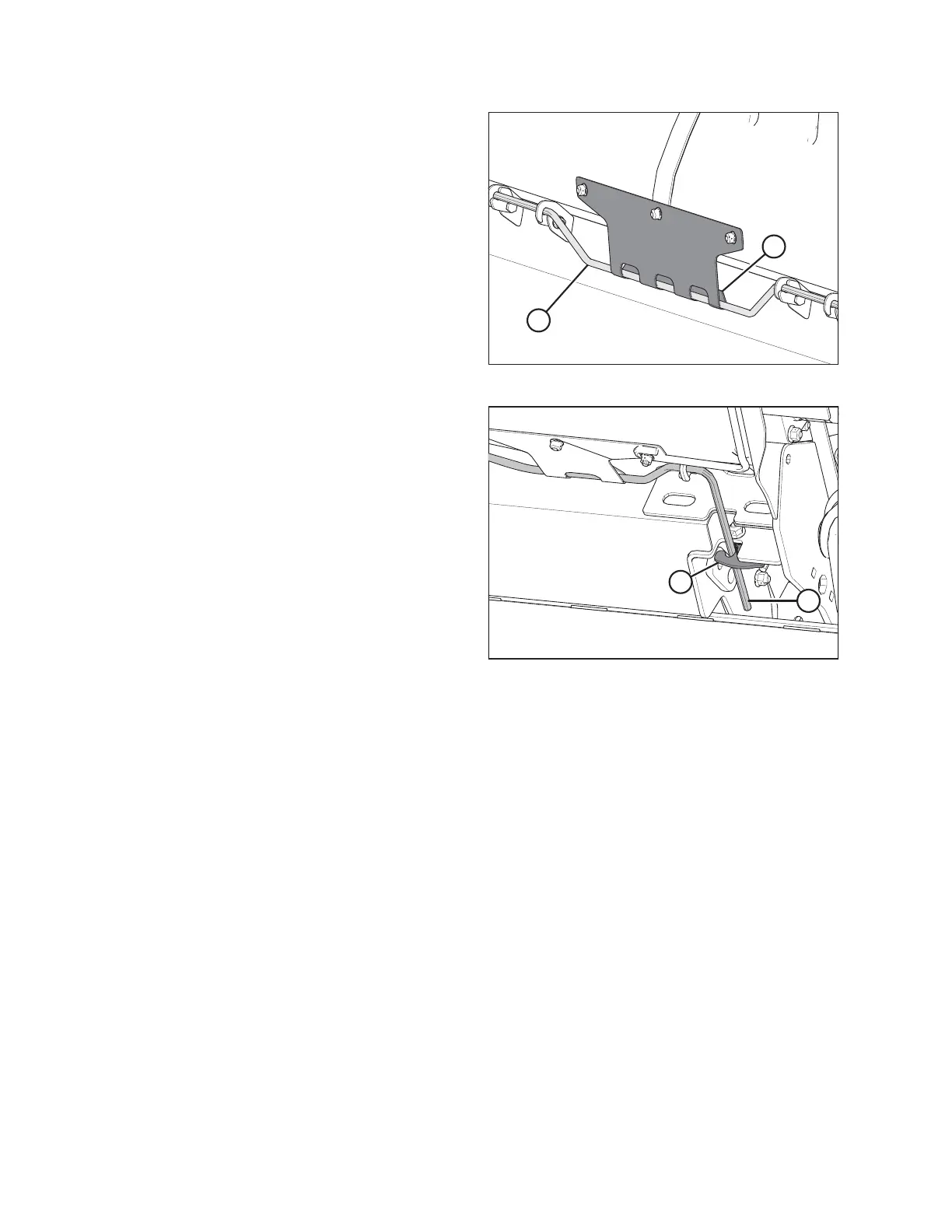

Figure 11.3: Clips Engaged
7. Raise pan and rotate handle (A) so that rod engages
clips (B) on pan.
1016291
A
B
Figure 11.4: Latches Secured
8. Push handle (A) into slot and secure it with latches (B).
9. Open left endshield.
RUNNING UP HEADER
