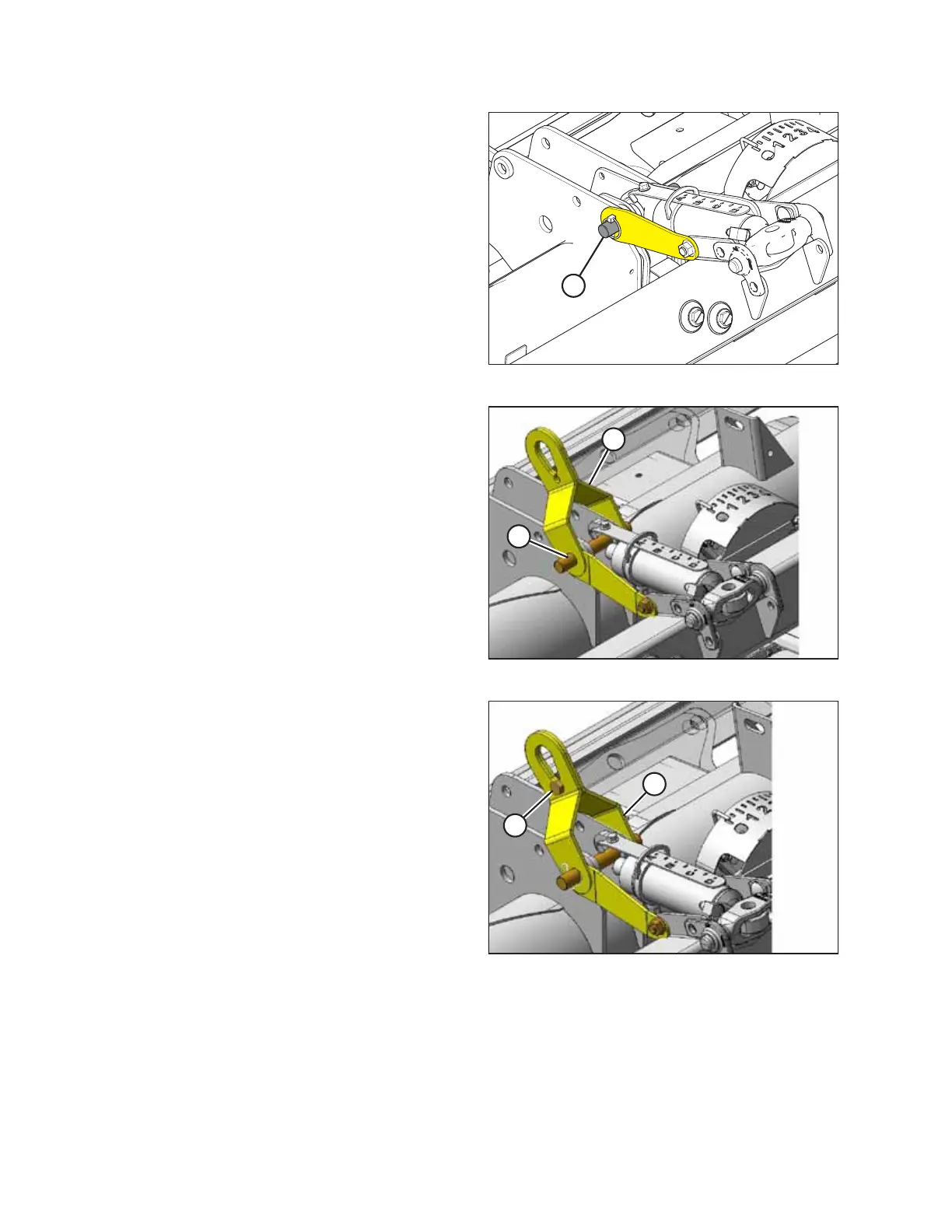

Figure 3.63: Center-Link
15. Remove cotter pins from center-link pin (A). Do NOT
remove center-link pin or strap between header and float
module.
1008304
A
B
Figure 3.64: Lifting Brackets at Center-Link
16. Attach brackets (A) to center-link pin (B) and reinstall
cotter pins.
1008307
A
B
Figure 3.65: Lifting Brackets at Center-Link
17. Reinstall bolt and nut (A) in lifting brackets (B). Tighten bolt.
ASSEMBLING THE HEADER AND FLOAT MODULE
