Removing the outboard leg supports

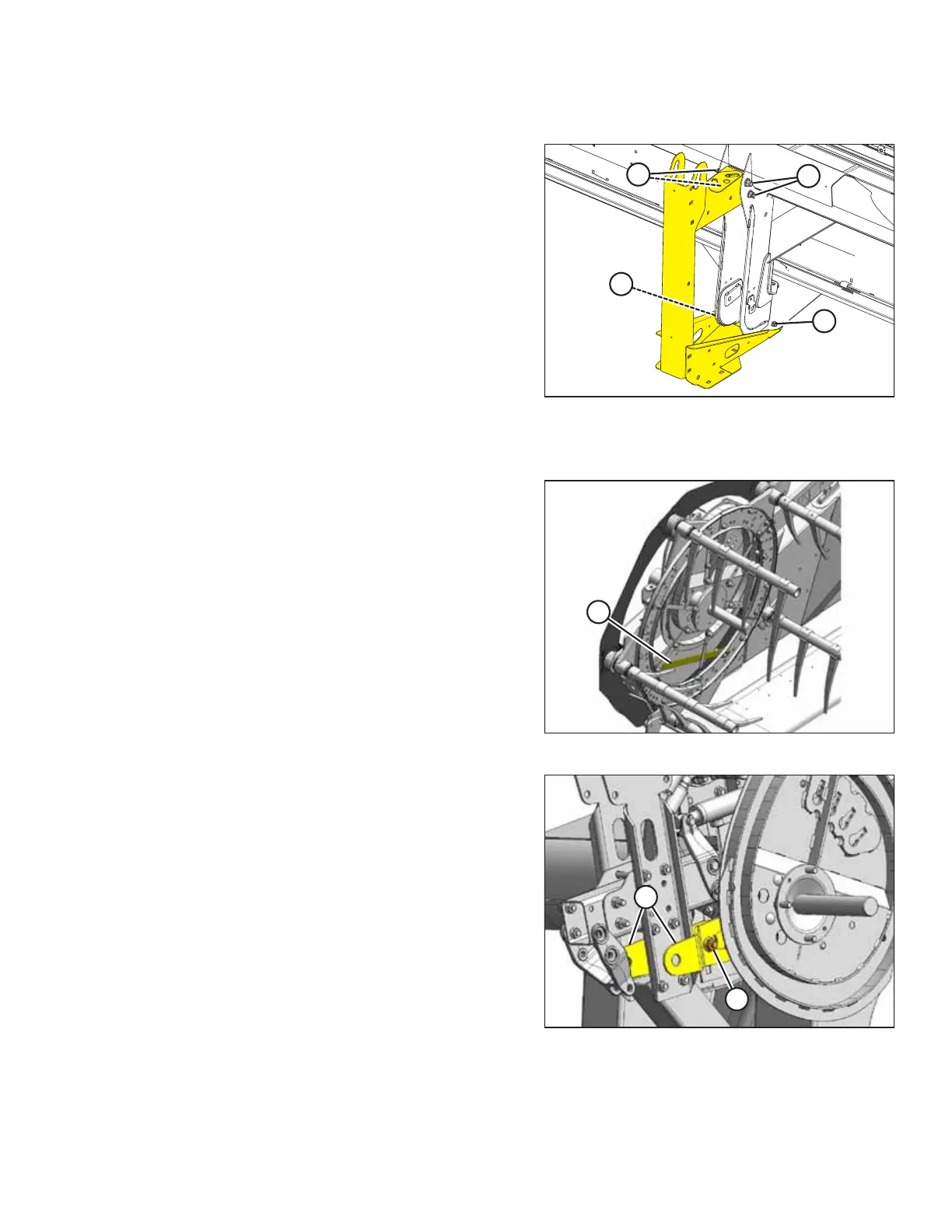

Figure 3.60: Outboard Leg Shipping Stand
11. Remove four bolts (A) and two bolts (B) from the shipping
stands at both outboard header legs. Remove stands.
Removing additional shipping supports and guards
Figure 3.61: Reel Anti-Rotation Strap
12. Remove reel anti-rotation strap (A) between reel and
endshield.
Figure 3.62: Lifting Bracket
13. Loosen existing bolt (A) and disassemble lifting brackets (B).
14. Remove lifting brackets from the center reel support.
