MacDon D1 Series - Page 90

215184 66 Revision A
1008487
A
A

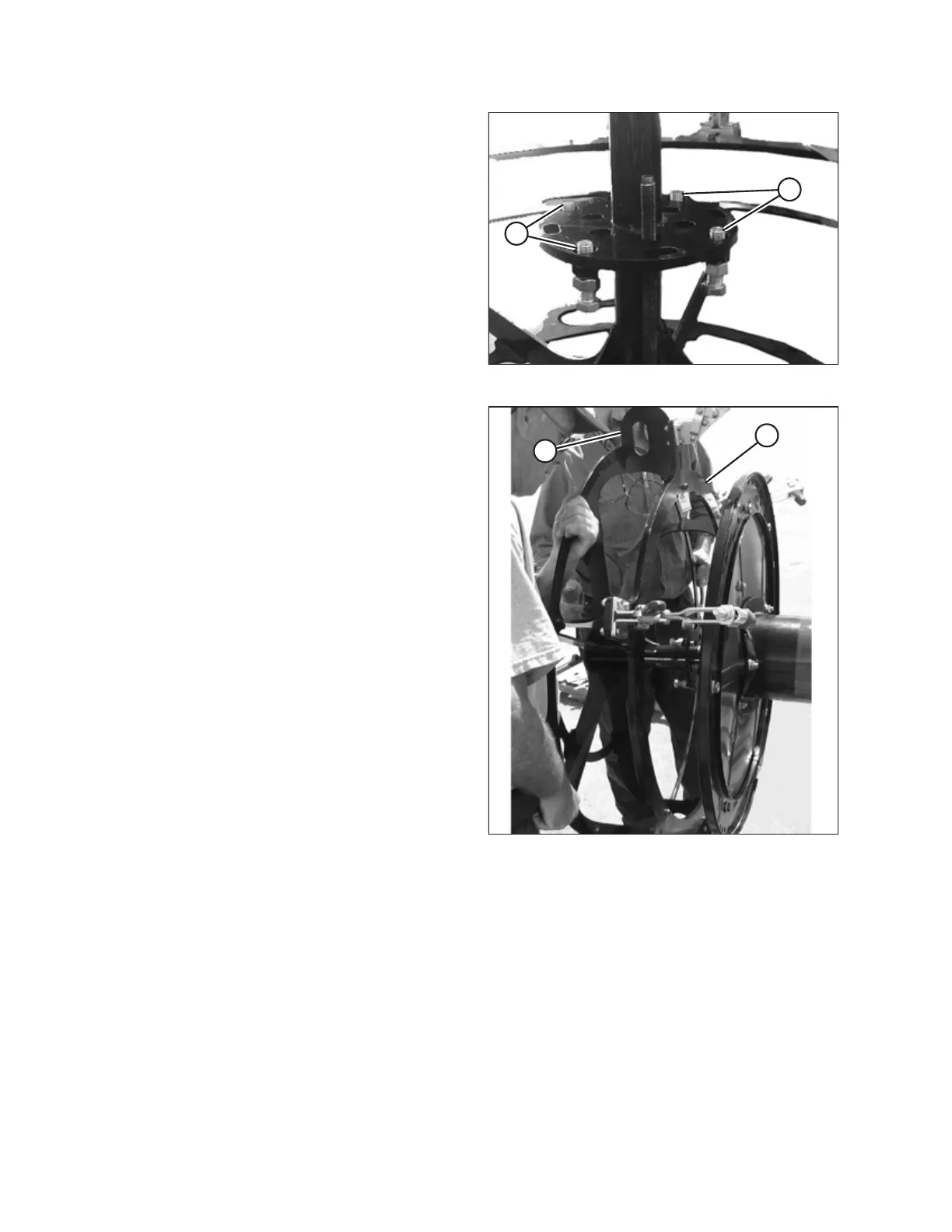

Figure 3.119: Flange on Jig
1. Adjust four bolts (A) at center flange on jig so they protrude
past the plate by 5.5 mm (7/32 in.).
1008492
A
B
Figure 3.120: Jig on Reel Tube
2. Position jig (A) on reel tube by inserting shaft on the jig into
hole in the tube end. Position lift hook (B) in jig at
approximately the 12 o’clock position.
ASSEMBLING THE HEADER AND FLOAT MODULE
