5.2 European Standards
164 SIEPCYEUOQ2V01A Q2V Technical Manual

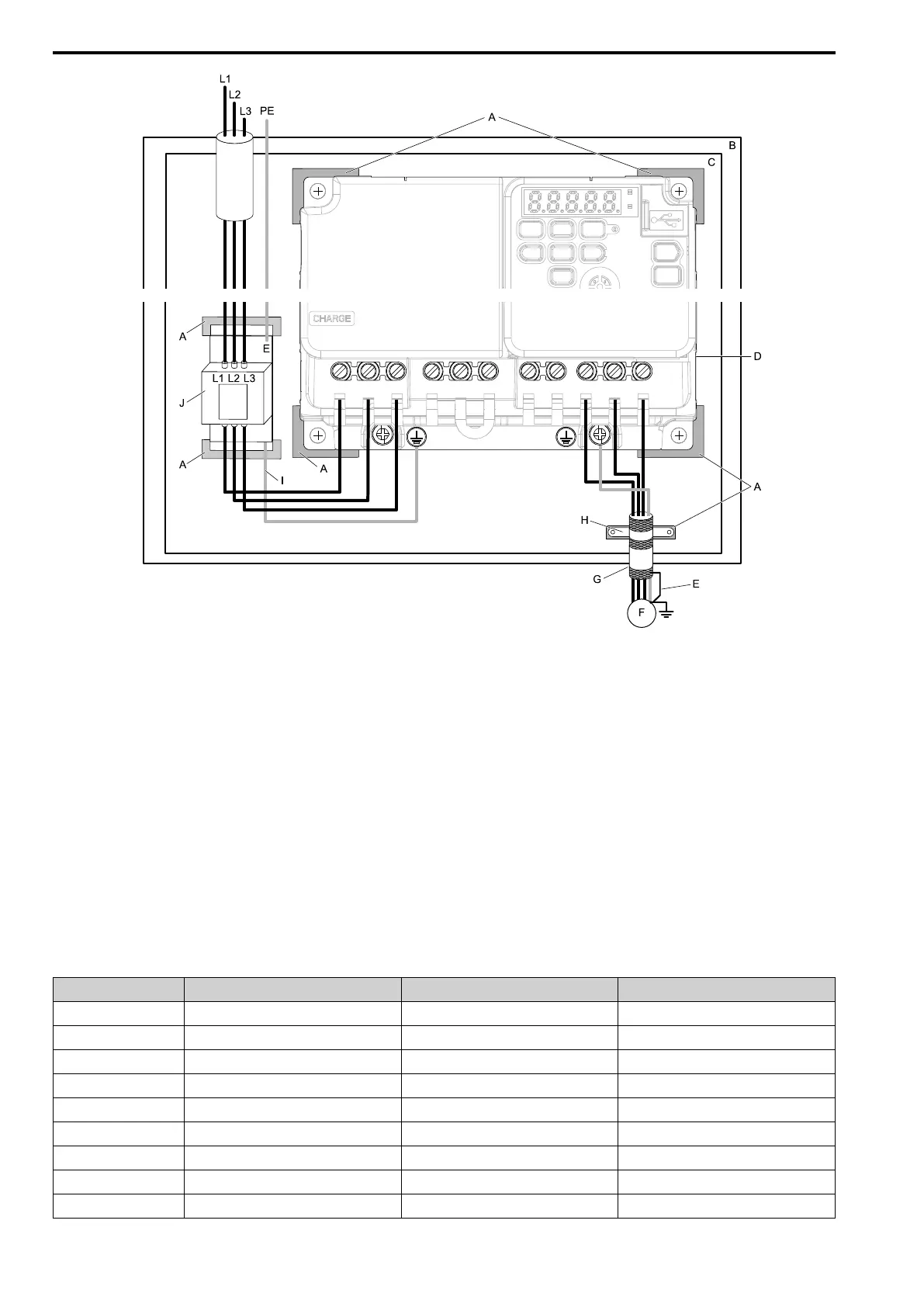

A - Grounding surface (Remove any
paint or sealant.)
B - Enclosure panel
C - Metal plate
D - Drive
E - Ground the shield.
F - Motor
G - Motor cable (Braided shield
cable: 10 m (32.8 ft) maximum)
H - Cable clamp
I - Grounding wire
J - EMC noise filter
Figure 5.13 EMC Noise Filter and Drive Installation Procedure
5. Connect the DC reactor to decrease harmonic distortion.
Refer to DC Reactor Selection on page 165 to select a DC reactor.
Note:
• To maintain compliance with EN 61000-3-2 on drive models 2001 to 2006, 4001 to 4004, install a DC reactor.
Ground Wiring
WARNING! Electrical Shock Hazard. Do not remove covers or touch circuit boards while the drive is energized. If you touch the
internal components of an energized drive, it can cause serious injury or death.
External EMC Noise Filter Selection
Table 5.10 External EMC Noise Filter (2xxxA)
Drive model EMC Noise Filter Model Quantity Manufacturer
2001 FS23637-8-07 1 Schaffner
2002 FS23637-8-07 1 Schaffner
2004 FS23637-8-07 1 Schaffner
2006 FS23637-8-07 1 Schaffner
2010 FS23637-14-07 1 Schaffner
2012 FS23637-14-07 1 Schaffner
2021 FS23637-24-07 1 Schaffner
2030 FS5973-35-07
*1
1 Schaffner
2042 FS5973-60-07
*1
1 Schaffner
