SIEPCYEUOQ2V01A
Q2V
T
echnical
Manual
183

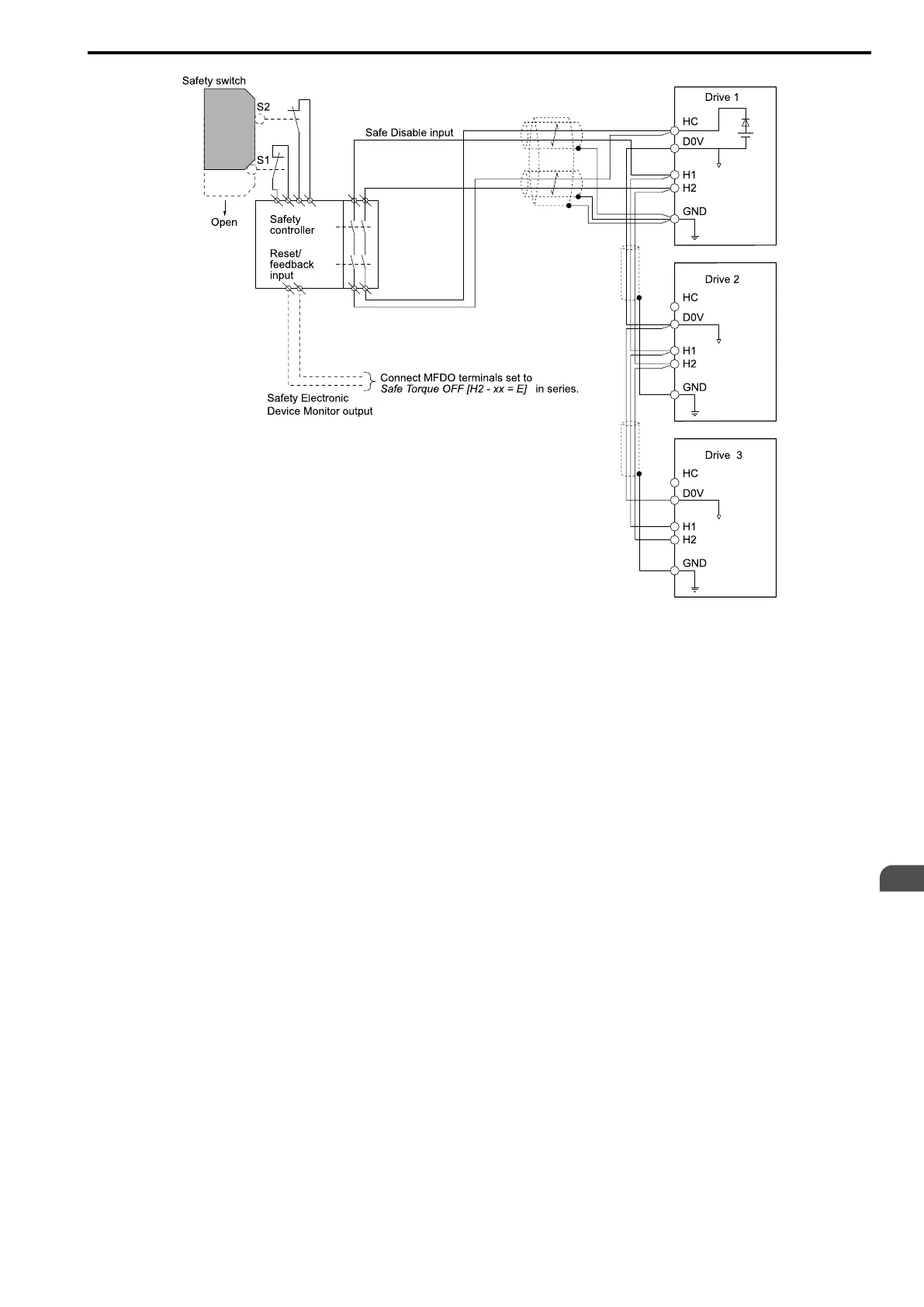

Figure
5.22
Connection
Example
to
Use
the
Internal
Power
Supply
■
T
o
Use
24
V
External
Power
Supply
These
conditions
limit
the
number
of
units
to
connect:
•
External
power
supply
capacity
•
Number
of
MFDIs
used
•
Supply
current
to
the
external
sensors
182
184
