Periodic Inspection and Maintenance
8

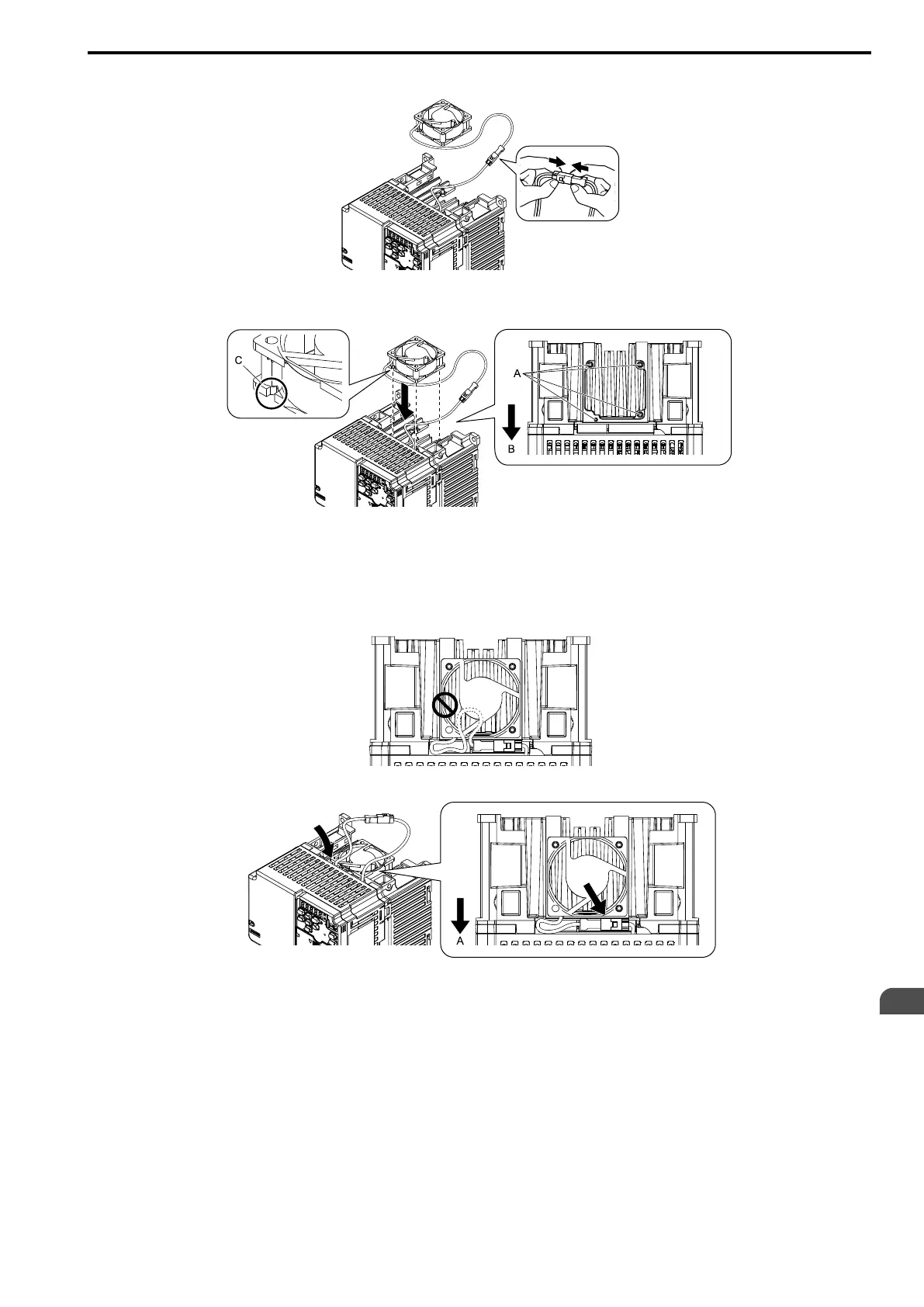

8.4 Replace Cooling Fans
SIEPCYEUOQ2V01A Q2V Technical Manual 275
1. Connect the power supply connector between the drive and cooling fan.
Figure 8.3 Connect the Power Supply Connector
2. Align the notches on the fan with the pins on the drive and install the cooling fans in the drive.
A - Alignment pins on drive
B - Front of drive
C - Notch on fan
Figure 8.4 Install the Cooling Fan
Note:
When you install the cooling fan, make sure that you do not pinch cables between the cooling fan and the drive.
3. Put the cable and connector in the recess of the drive.
A - Front of drive
Figure 8.5 Put the Cable and Connector in the Drive Recess
To Next Page
