8.4 Replace Cooling Fans
SIEPCYEUOQ2V01A Q2V Technical Manual 277
NOTICE: Use the instructions in this manual to replace the cooling fans. When you do maintenance on the fans, replace all the
fans to increase product life. If you install the fans incorrectly, it can cause damage to the drive.
■ Remove a Fan
1. Push the tabs toward the back of the drive and pull up to remove the fan finger guard from the drive.

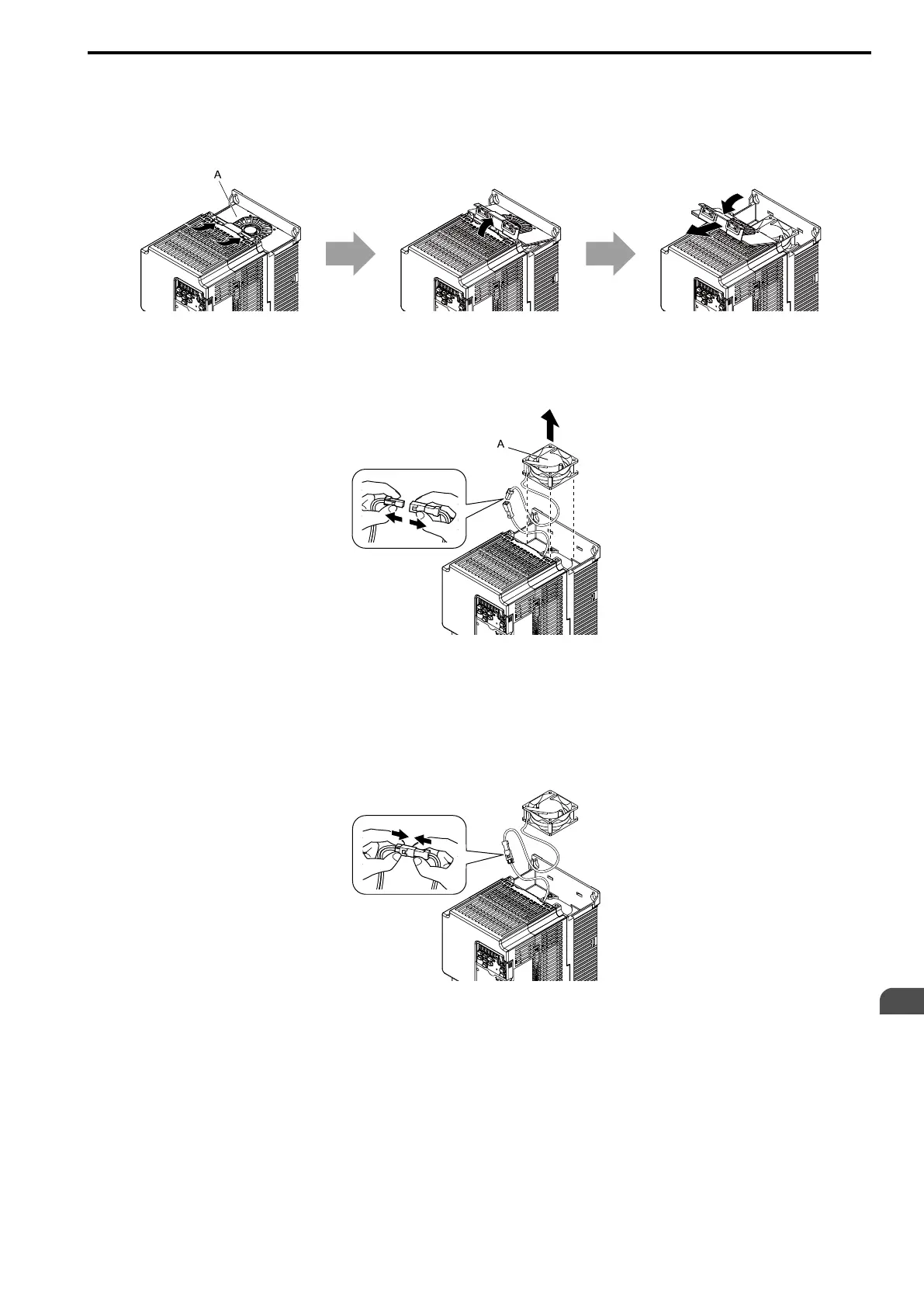

A - Fan finger guard
Figure 8.10 Remove the Fan Finger Guard
2. Pull the cooling fan straight up from the drive. Disconnect the power supply connector and remove the fan
from the drive.
A - Cooling fan
Figure 8.11 Remove the Cooling Fan
■ Install the Cooling Fans
Reverse the removal procedure to install a cooling fan.
1. Connect the power supply connector between the drive and cooling fan.
Figure 8.12 Connecting the power supply connector
