Periodic Inspection and Maintenance
8
8.5 Replace the Drive
SIEPCYEUOQ2V01A Q2V Technical Manual 281

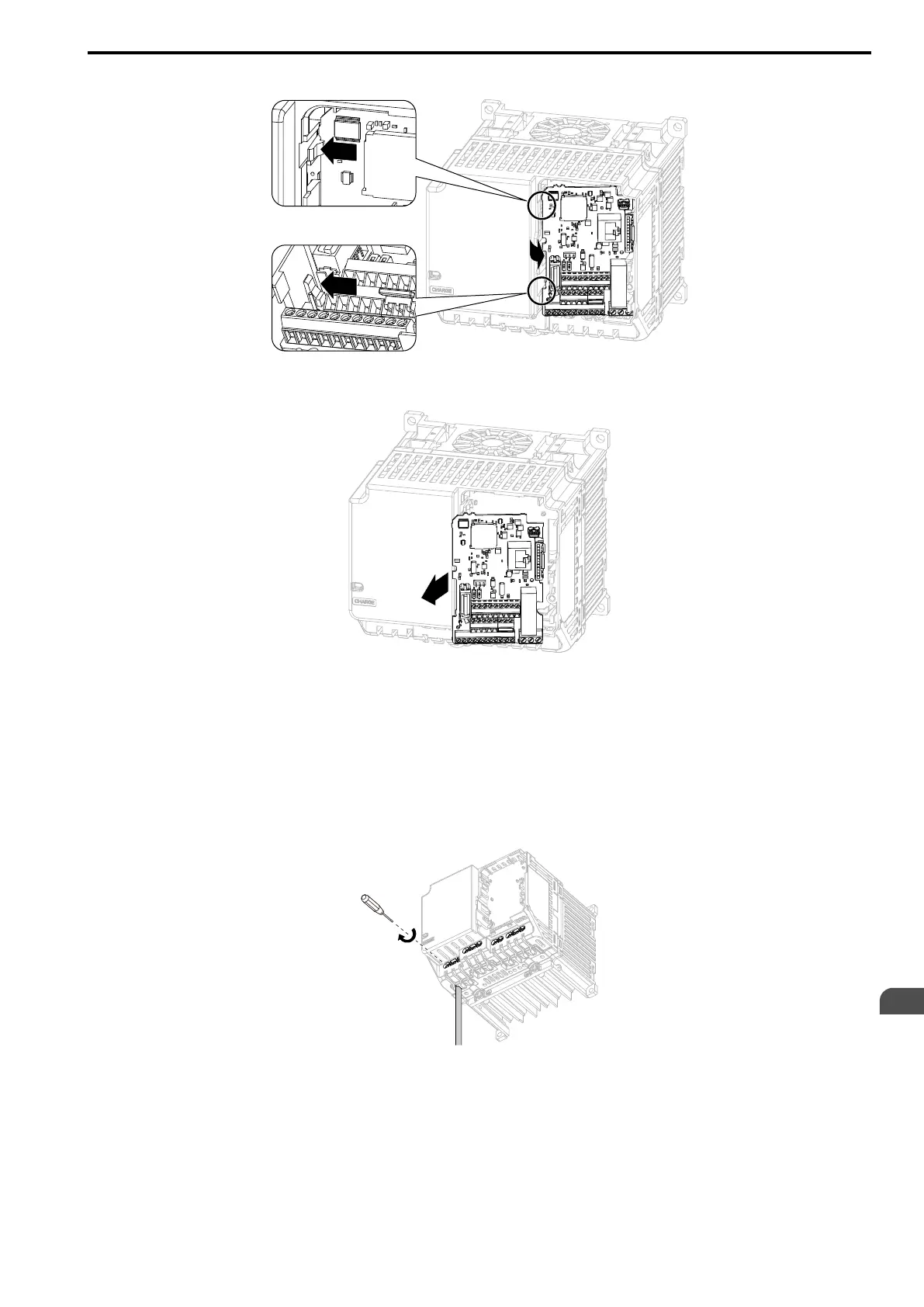

1. Push the tabs to the left that hold the control board to the drive.
Figure 8.20 Unhook the Tabs
2. Pull the left side of the control circuit board out first.
Figure 8.21 Remove the Control Circuit Board
■ Put the Control Circuit Board in a New Drive
Remove the keypad, front cover, and control circuit board of the new drive.
Wire the main circuit terminals of the new drive, then attach the wired control circuit board.
1. Wire the main circuit terminals.
Note:
To wire terminals +1 and +2, remove the jumper between terminals +1 and +2.
Figure 8.22 Wire the Main Circuit Terminals
2. Attach the wired control circuit board to the drive.
Push the control circuit board until the hooks click into place on the drive.
To Next Page
