Mechanical Installation
2
2.3 Installation Position and Distance
SIEPCYEUOQ2V01A Q2V Technical Manual 31
A - 50 mm (1.97 in) minimum
between upper and lower
openings
B - 30 mm (1.18 in) minimum on each
side
C - 100 mm (3.94 in) minimum above
and below

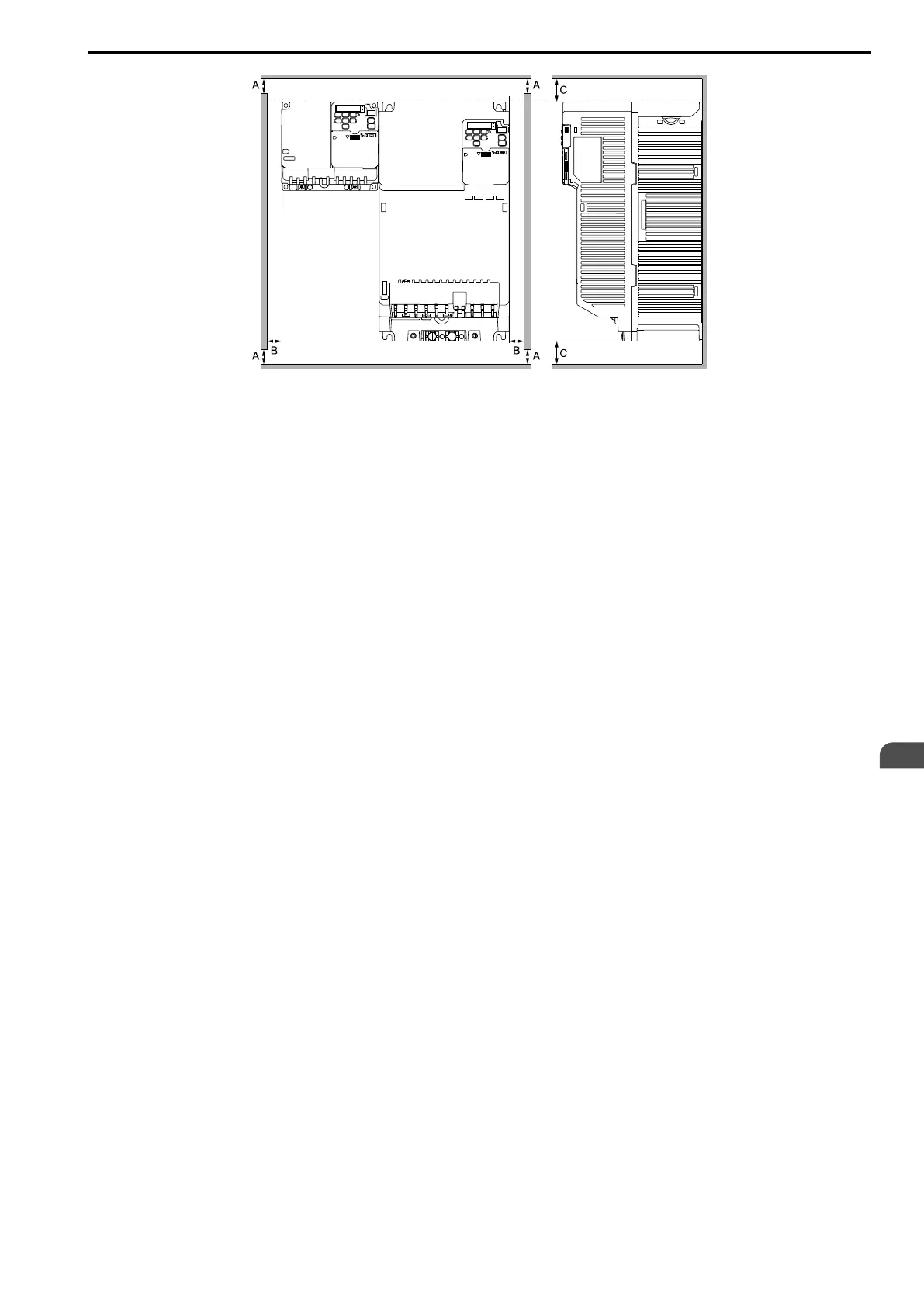

Figure 2.3 Installation Distances for More than One Drive (Side-by-Side)
Note:
When you replace the cooling fans, align the tops of drives that have different dimensions. You can easily replace the cooling fan.
