2.5 Removing/Reattaching Covers
34 SIEPCYEUOQ2V01A Q2V Technical Manual
2. Use a slotted screwdriver to lock the front cover of the drive.
Use a slotted screwdriver with a tip width of 2.5 mm (0.1 in) or less and a thickness of 0.4 mm (0.02 in) or
less.
A - Front Cover Lock

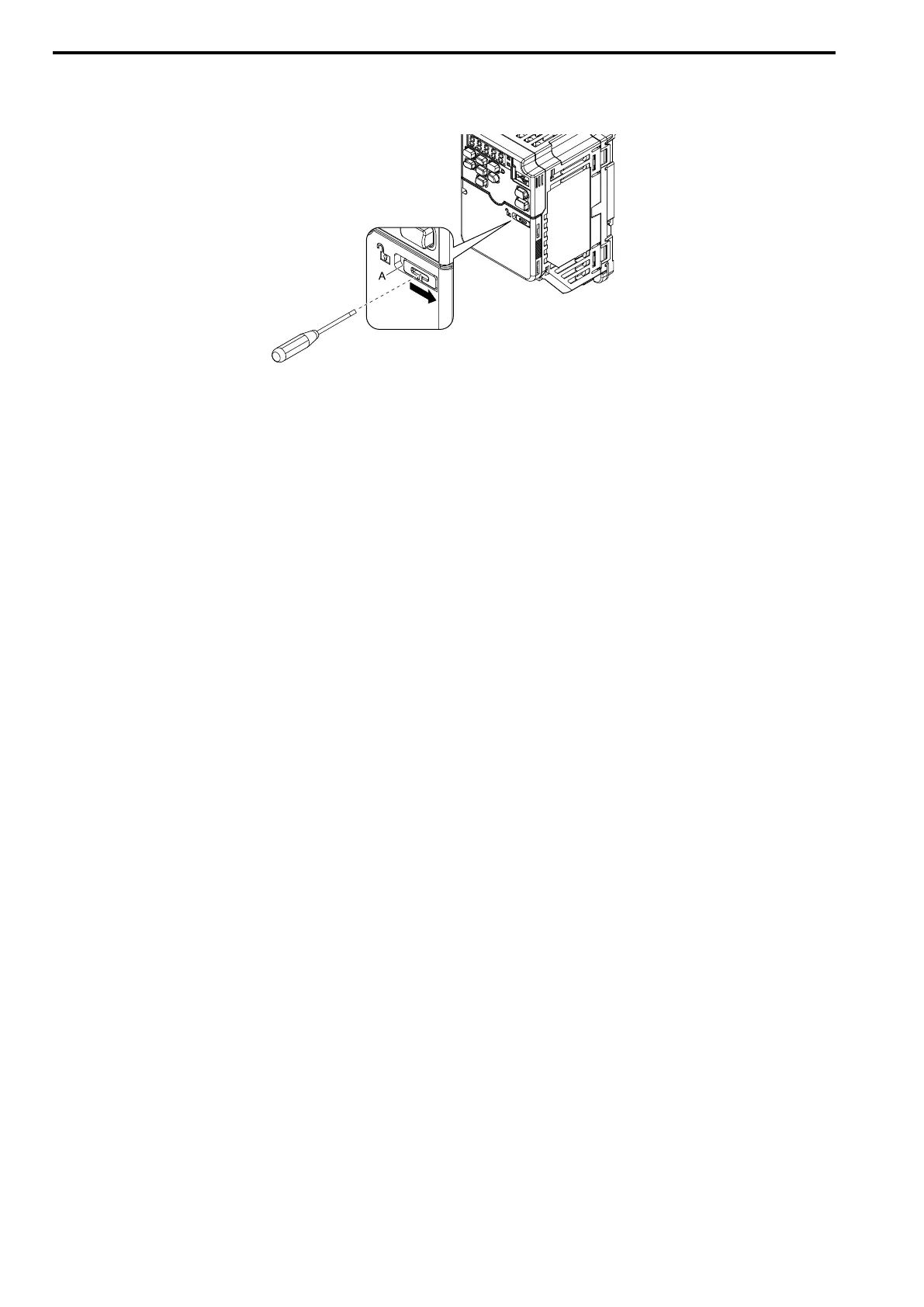

Figure 2.7 Locking the Front Cover
