Parameter Details
12

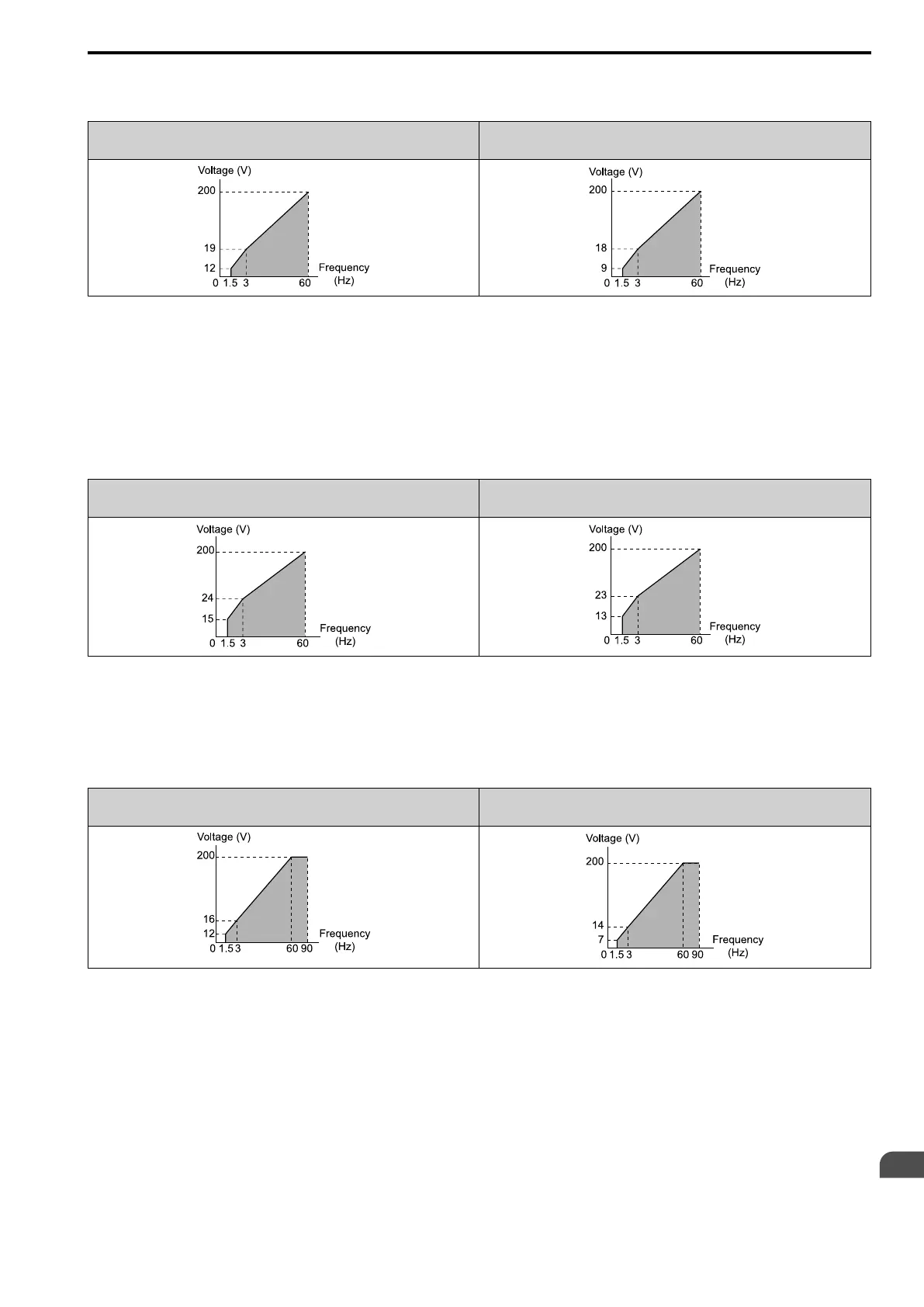

12.5 E: MOTOR
SIEPCYEUOQ2V01A Q2V Technical Manual 529
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD : 2001 - 2021, B001 - B018, 4001 - 4012
ND : 2001 - 2018, B001 - B012, 4001 - 4009
HD : 2030 - 2082, 4018 - 4060
ND : 2021 - 2082, 4012 - 4060
B : HT_60Hz-165V
Use this pattern when high torque is necessary during start up.
Select this pattern only in these conditions:
• The wiring distance between the drive and motor is 150 m (492.1 ft) minimum
• There is an AC reactor connected to the drive output.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD : 2001 - 2021, B001 - B018, 4001 - 4012
ND : 2001 - 2018, B001 - B012, 4001 - 4009
HD : 2030 - 2082, 4018 - 4060
ND : 2021 - 2082, 4012 - 4060
C : HF_60-90Hzmax
Use this constant output pattern to rotate motors at more than 60 Hz. Output voltage is constant when you operate
at more than 60 Hz.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD : 2001 - 2021, B001 - B018, 4001 - 4012
ND : 2001 - 2018, B001 - B012, 4001 - 4009
HD : 2030 - 2082, 4018 - 4060
ND : 2021 - 2082, 4012 - 4060
D : HF_60-120Hzmax
Use this constant output pattern to rotate motors at more than 60 Hz. Output voltage is constant when you operate
at more than 60 Hz.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
