12.7 H: TERMINALS
SIEPCYEUOQ2V01A Q2V Technical Manual 575
Note:
Refer to “d4: FREQUENCY UP/DOWN on page 516” for more information.
■ 18: Ac/Dec Time1
Setting Value Function Description
18 Ac/Dec Time1
Sets the drive to use Acceleration/Deceleration Time 1 [C1-01, C1-02] or Acceleration/Deceleration Time 2 [C1-03, C1-04].
Note:
Refer to “C1: ACCEL / DECEL on page 488” for more information.
■ 19: Ac/Dec Time2
Setting Value Function Description
19 Ac/Dec Time2
Set this function and H1-xx = 18 [Ac/Dec Time1] together. Sets the drive to use Acceleration/Deceleration Time 3 [C1-05, C1-
06] or Acceleration/Deceleration Time 4 [C1-07, C1-08].
Note:
Refer to “C1: ACCEL / DECEL on page 488” for more information.
■ 1A: Drive Enable
Setting Value Function Description
1A Drive Enable
Sets the function to show dnE [Drive Enabled] on the keypad and ignore Run commands when the terminal is OFF.
If you input the Run command before you turn ON the Drive Enable terminal, you must input the Run command
again to operate the drive. When the terminal set for Drive Enable is turned OFF when the drive is operating, the
drive will use the stopping method set in b1-03 [Stopping Method Selection] to stop the motor.
ON : Run command is accepted.
OFF : Run command is disabled. When the drive is running, it stops according to b1-03 setting.
■ 1B: Baseblock NO
Setting Value Function Description
1B Baseblock NO
Sets the command that stops drive output and coasts the motor to stop when the input is ON.
The keypad flashes bb [Baseblock]. If you cancel the baseblock command when the Run command is active, the
drive will restart the motor and use the speed search function.
WARNING! Sudden Movement Hazard. When you use a mechanical holding brake with the drive in a lifting application, you
must close the brake if an input terminal triggers the Baseblock command to stop drive output. If you enter the baseblock
command, the motor will suddenly coast and the load will slip, which can cause serious injury or death.

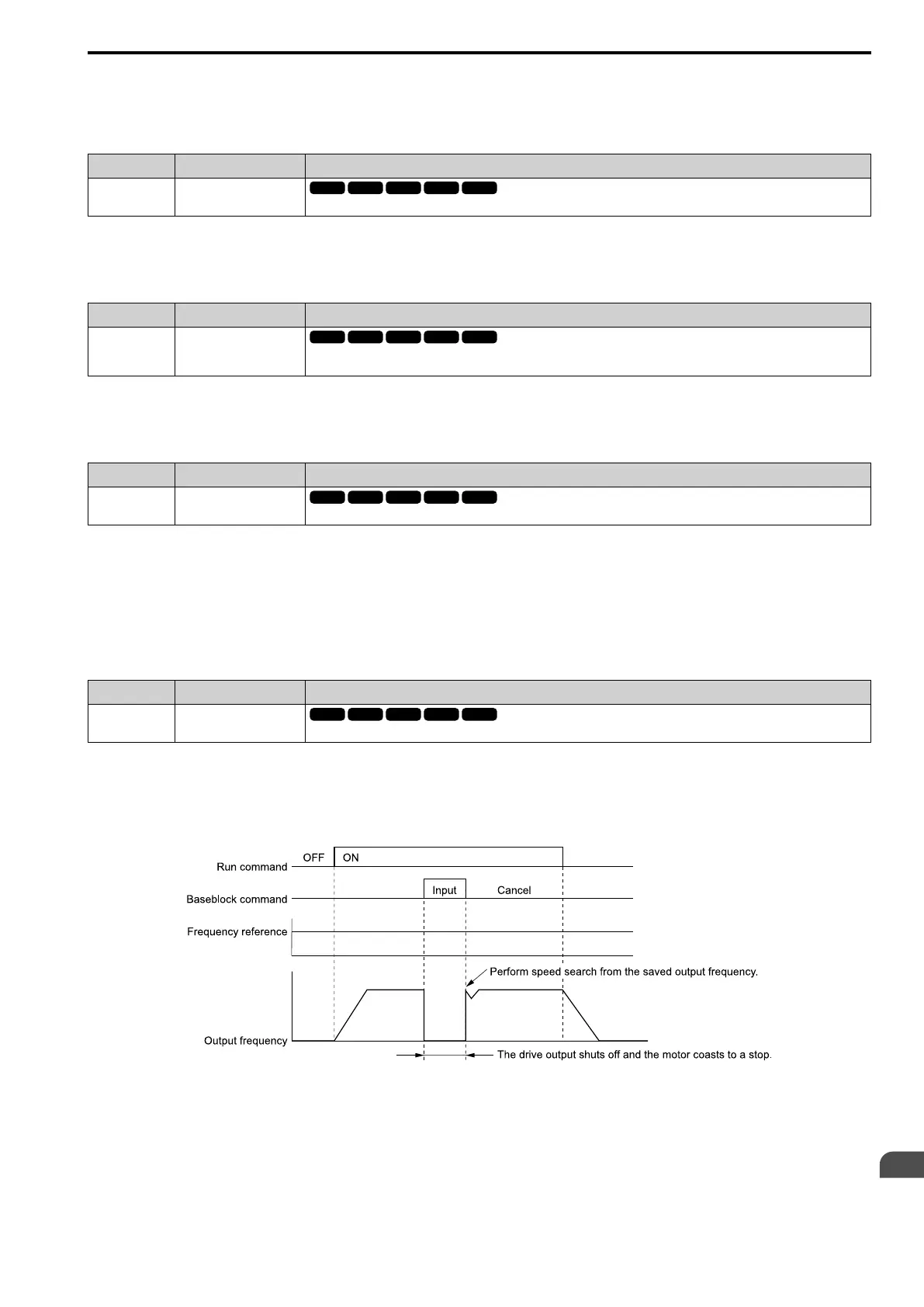

Figure 12.69 Baseblock Command Time Chart
ON : Baseblock (drive output stop)
OFF : Normal operation
