High-function General-purpose Inverter RX2 Series User’s Manual
When you install PG Option Unit 3G3AX-RX2-PG01 to the inverter, it will stand out of the inverter’s front
surface as following dimension. When you install the unit, take a special care for it.
The arrangement of the terminals on the PG Option Unit 3G3AX-RX2-PG01 is shown below.

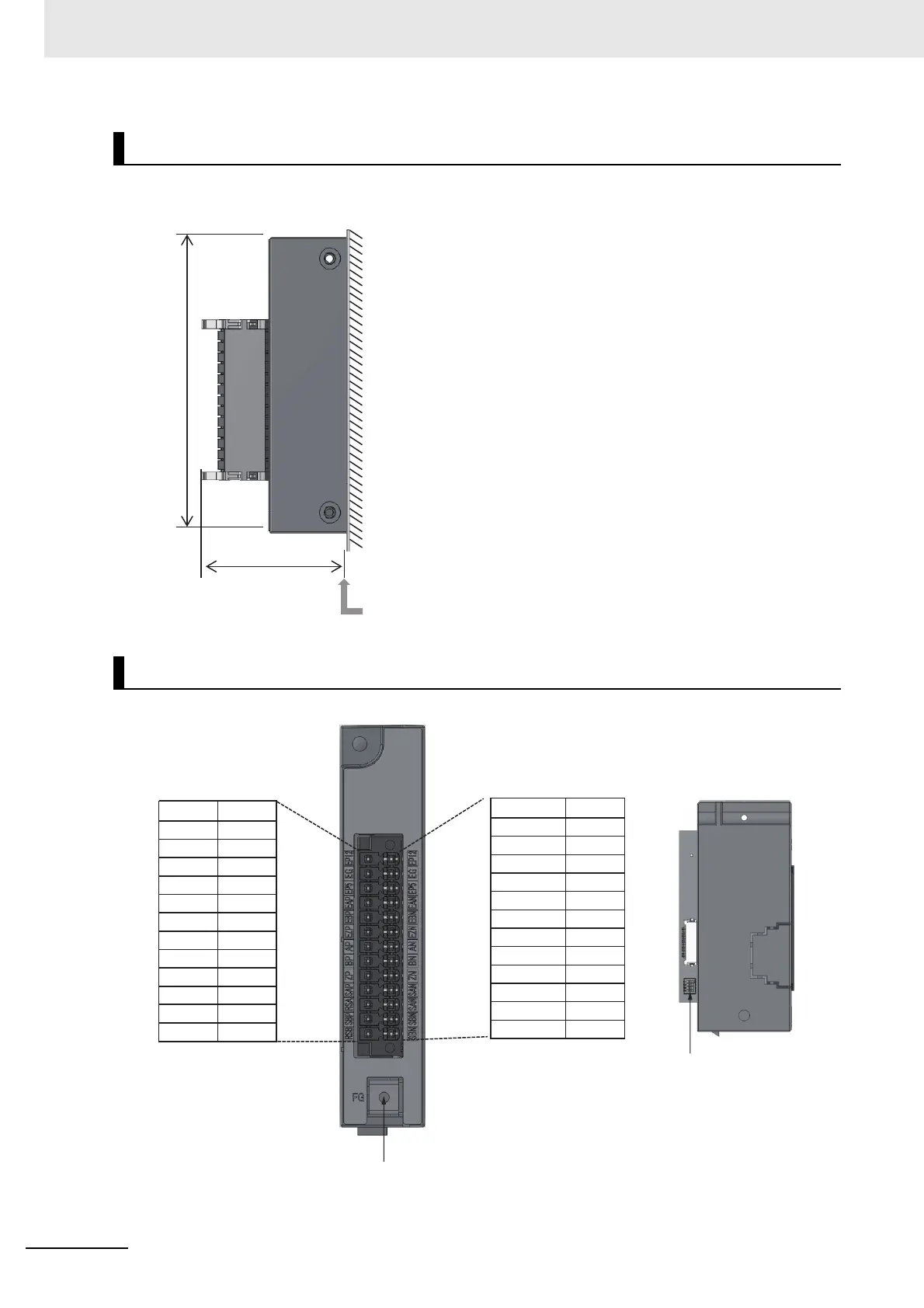

Installation Dimension of PG Option Unit
Terminal Arrangement on PG Option Unit
47mm
96.5mm
3G3RX2 Inverter’s main body
3G3AX-RX2-PG01
Stands out of the main body
3G3RX2
Main body’s surface line
EP12 1
2
EP12
EG 3
4EG
EP5 5
6EP5
EAP 7
8EAN
EBP 9
10 EBN
EZP 11
12 EZN
AP 13
14 AN
BP 15
16 BN
ZP 17
18 ZN
SAP 19
20 SAN
RSA 21
22 SAN
SBP 23
24 SBN
RSB 25
26 SBN
DIP Switch
FG Terminal
