3 Operation
3 - 56
High-function General-purpose Inverter RX2 Series User’s Manual
This section describes how to connect CX-Drive with an inverter.
 Connecting by Registering Inverter Connection Method Beforehand
Create a new inverter project, set the connecting method, and connect with the inverter.
Follow the steps below.

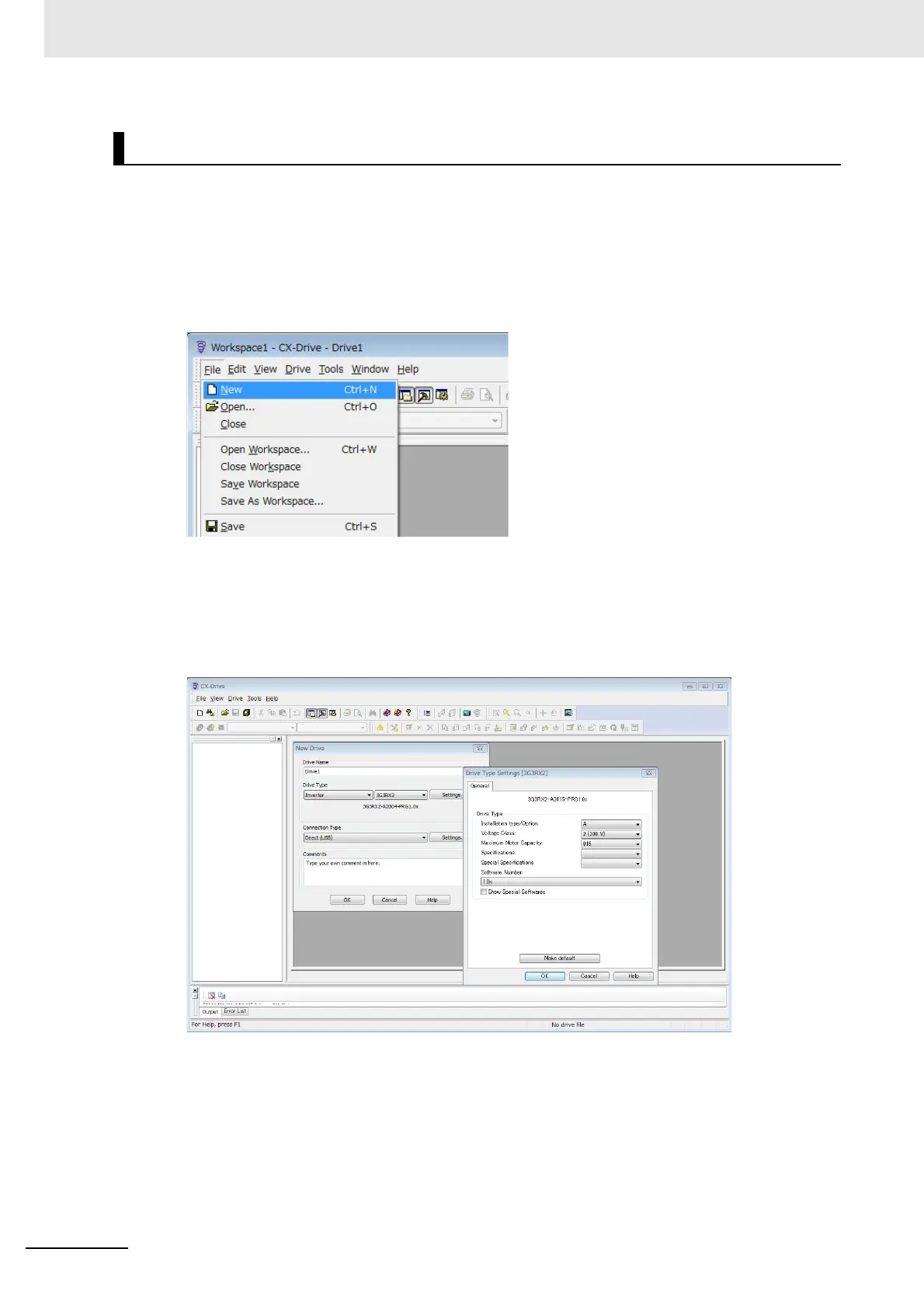

1 Start the CX-Drive and, from the [File] menu, select [New].
2 In the [New Drive] window, set the drive type of the target inverter.
Select “3G3RX2” on [Drive Type]. After that, click the [Settings] button to the right. Set the
Inverter Protective Structure, Voltage Class and Maximum Motor Capacity on the [Drive Type
Settings] window. After these settings, click the [OK] button to close the [Drive Type Settings]
window.
CX-Drive Connection Procedures
