3 Operation
High-function General-purpose Inverter RX2 Series User’s Manual
3-13 Connection and Functions of CX-Drive
3
3-13-1 CX-Drive Connection Method

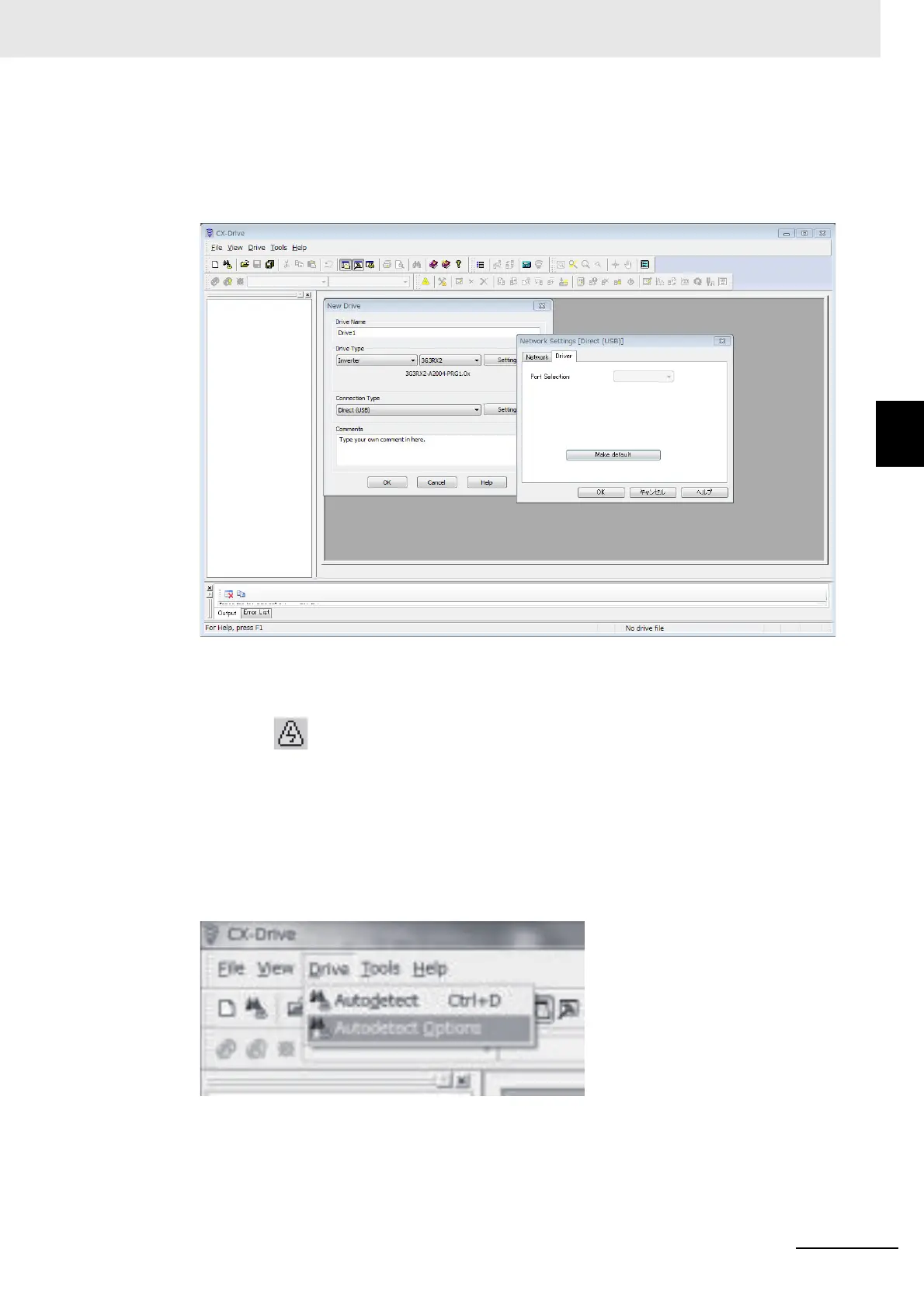

3 In the [New Drive] window, set the type of connection to the inverter.
Under [Connection Type], select [Direct] and click the [Settings] button to the right.
On the [Driver] tab, set the Port Selection to the port name of the computer on which the
CX-Drive is installed.
4 After setting these items, click the [OK] button and close all windows.
The new project is registered in the workspace.
Click the [ ] (Work Online) icon to connect to the inverter.
Automatically Detecting the Connected Inverter
Set the [Autodetect Options] in the CX-Drive and use the Autodetect function to automatically con-
nect to the inverter.
Follow the steps below.
1 Start the CX-Drive and, from the [Drive] menu, select [Autodetect Options] to open the Options
window.
