Omron RX2 Series User Manual

6 - 57
6 Basic Parameter Settings
High-function General-purpose Inverter RX2 Series User’s Manual

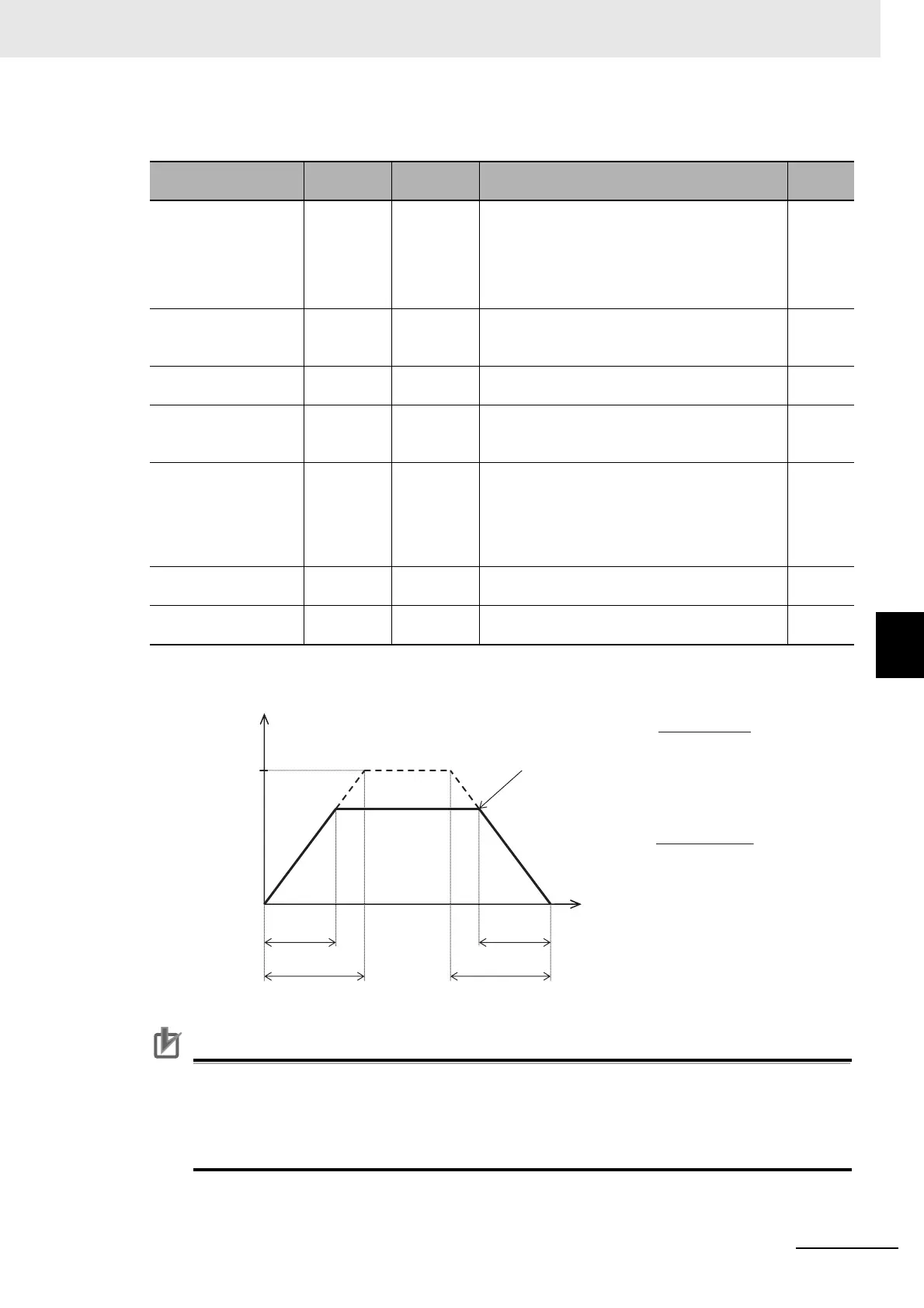

6-7 Acceleration/Deceleration Settings
6
6-7-1 Change Acceleration Time and Deceleration Time
 Parameter
Precautions for Correct Use
However short the acceleration or deceleration time is set, the actual acceleration or decelera-
tion of the motor cannot be shorter than the minimum acceleration or deceleration time that is
determined by the moment of inertia J of the mechanical system and the motor torque. An act
of acceleration or deceleration in a shorter time than the minimum acceleration or deceleration
time may cause an over current or over voltage trip to happen.
Item Parameters Data Description
Default
data
Maximum frequency
For IM,
[Hb105]
For SM
(PMM),
[Hd105]
10.00 to
590.00(Hz)
Set the maximum value for the frequency.
50
*1
*1. Default data when default data selection (UB-02) is set to 01.
Acceleration time set-
ting 1, 1st-motor
[AC120]
0.00 to
3600.00(s)
Set, as the acceleration time, the time that it
takes to rise from 0 Hz to the maximum fre-
quency.
30.00
Deceleration time set-
ting 1, 1st-motor
[AC122]
0.00 to
3600.00(s)
Set, as the deceleration time, the time that it
takes to fall from the maximum frequency to 0 Hz.
30.00
Acceleration/ Deceler-
ation Time input
selection
[AC-01] 00 to 04
00: Parameter set-up
04: Program function DriveProgramming
00
Input terminal
selection
[CA-01] to
[CA-11]
071
Acceleration or deceleration cancellation func-
tion [LAC]
OFF: Function disabled.
ON: Ignore the acceleration or deceleration
time, and follow the command.
-
Acceleration time
(Monitor + Setting)
[FA-10]
0.00 to
3600.00(s)
Display the currently-enabled acceleration time. -
Deceleration time
(Monitor + Setting)
[FA-12]
0.00 to
3600.00(s)
Display the currently-enabled deceleration time. -
(J
L
+J
M
) × N
M
9.55 × (T
B
+T
L
)
t
B=
[FA-10] [FA-12]
(J
L
+J
M
) × N
M
9.55 × (T
S
-T
L
)
t
S=
Set frequency
Time
Output
frequency
Actual
acceleration
time
Actual
deceleration
time
Maximum
frequency
[Hb105]/
[Hd105]
Acceleration time t
s
Deceleration time t
B
J
L
: Moment of inertia J (kg·m
2
) of the load con-
verted into that of the motor shaft.
J
M
: Moment of inertia J (kg·m
2
) of the motor.
N
M
: Revolution speed of the motor (r/min)
T
s
: Maximum acceleration torque (N·m) of the
motor driven by the inverter.
T
B
: Maximum deceleration torque (N·m) of the
motor driven by the inverter.
T
L
: required operating torque (N·m)
