6-7 Acceleration/Deceleration Settings
6

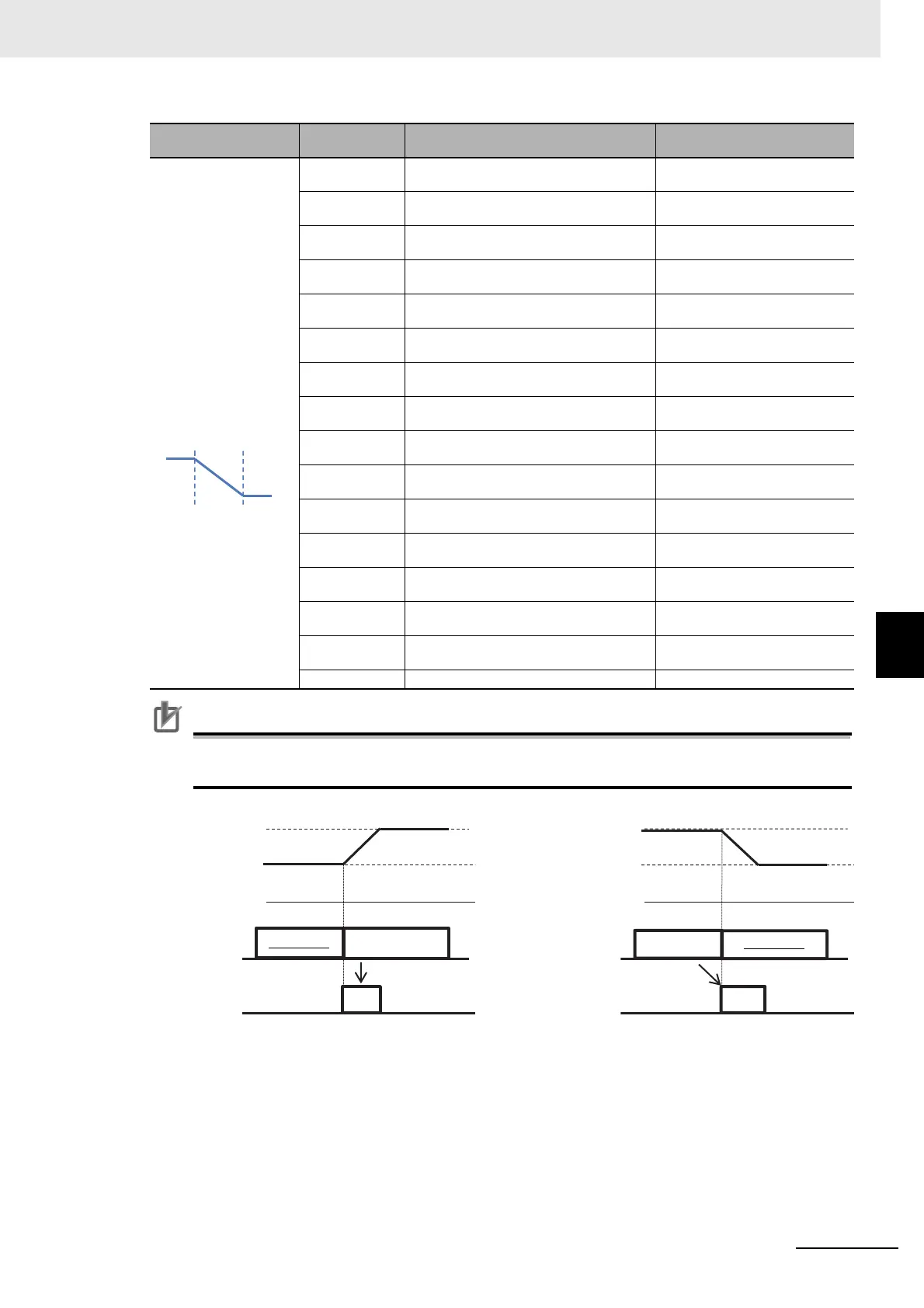

6-7-3 Switching of Acceleration or Deceleration Time with Multi-Speed Step
Precautions for Correct Use
The switching timing of frequency command by multi-speed terminal command is different from
that of the deceleration time.
The frequency after a
speed is OFF will be
lower than the speed
before that.
To the decelerating state
1st speed OFF
Multi-speed 1st speed [Ab-11] > Frequency
after 1st speed is OFF
Deceleration time for multi-speed
1st speed [AC-32]
2nd speed OFF
Multi-speed 2nd speed [Ab-12] > Fre-
quency after 2nd speed is OFF
Deceleration time for multi-speed
2nd speed [AC-36]
3rd speed OFF
Multi-speed 3rd speed [Ab-13] > Frequency
after 3rd speed is OFF
Deceleration time for multi-speed
3rd speed [AC-40]
4th speed OFF
Multi-speed 4th speed [Ab-14] > Frequency
after 4th speed is OFF
Deceleration time for multi-speed
4th speed [AC-44]
5th speed OFF
Multi-speed 5th speed [Ab-15] > Frequency
after 5th speed is OFF
Deceleration time for multi-speed
5th speed [AC-48]
6th speed OFF
Multi-speed 6th speed [Ab-16] > Frequency
after 6th speed is OFF
Deceleration time for multi-speed
6th speed [AC-52]
7th speed OFF
Multi-speed 7th speed [Ab-17] > Frequency
after 7th speed is OFF
Deceleration time for multi-speed
7th speed [AC-56]
8th speed OFF
Multi-speed 8th speed [Ab-18] > Frequency
after 8th speed is OFF
Deceleration time for multi-speed
8th speed [AC-60]
9th speed OFF
Multi-speed 9th speed [Ab-19] > Frequency
after 9th speed is OFF
Deceleration time for multi-speed
9th speed [AC-64]
10th speed OFF
Multi-speed 10th speed [Ab-20] > Fre-
quency after 10th speed is OFF
Deceleration time for multi-speed
10th speed [AC-68]
11th speed OFF
Multi-speed 11th speed [Ab-21] > Fre-
quency after 11th speed is OFF
Deceleration time for multi-speed
11th speed [AC-72]
12th speed OFF
Multi-speed 12th speed [Ab-22] > Fre-
quency after 12th speed is OFF
Deceleration time for multi-speed
12th speed [AC-76]
13th speed OFF
Multi-speed 13th speed [Ab-23] > Fre-
quency after 13th speed is OFF
Deceleration time for multi-speed
13th speed [AC-80]
14th speed OFF
Multi-speed 14th speed [Ab-24] > Fre-
quency after 14th speed is OFF
Deceleration time for multi-speed
14th speed [AC-84]
15th speed OFF
Multi-speed 15th speed [Ab-25] > Fre-
quency after 15th speed is OFF
Deceleration time for multi-speed
15th speed [AC-88]
No multi-speed Other than those above Deceleration time [AC122]
Setting state
Multi-speed
command
Command state
Acceleration or deceleration
time to be used
Deceleration time for
multi-speed Nth speed
Nth speed
[Ab-12]
[Ab-11]
[AC-34]
1st speed 2nd speed
2nd
speed
Output
frequency
Frequency
command
Acceleration
time
[Ab-12]
[Ab-11]
[AC-36]
1st speed2nd speed
2nd
speed
Output
frequency
Frequency
command
Deceleration
time
