6 Basic Parameter Settings
6 - 64
High-function General-purpose Inverter RX2 Series User’s Manual
The following table shows the multi-speed commands and their corresponding acceleration or deceler-
ation times.

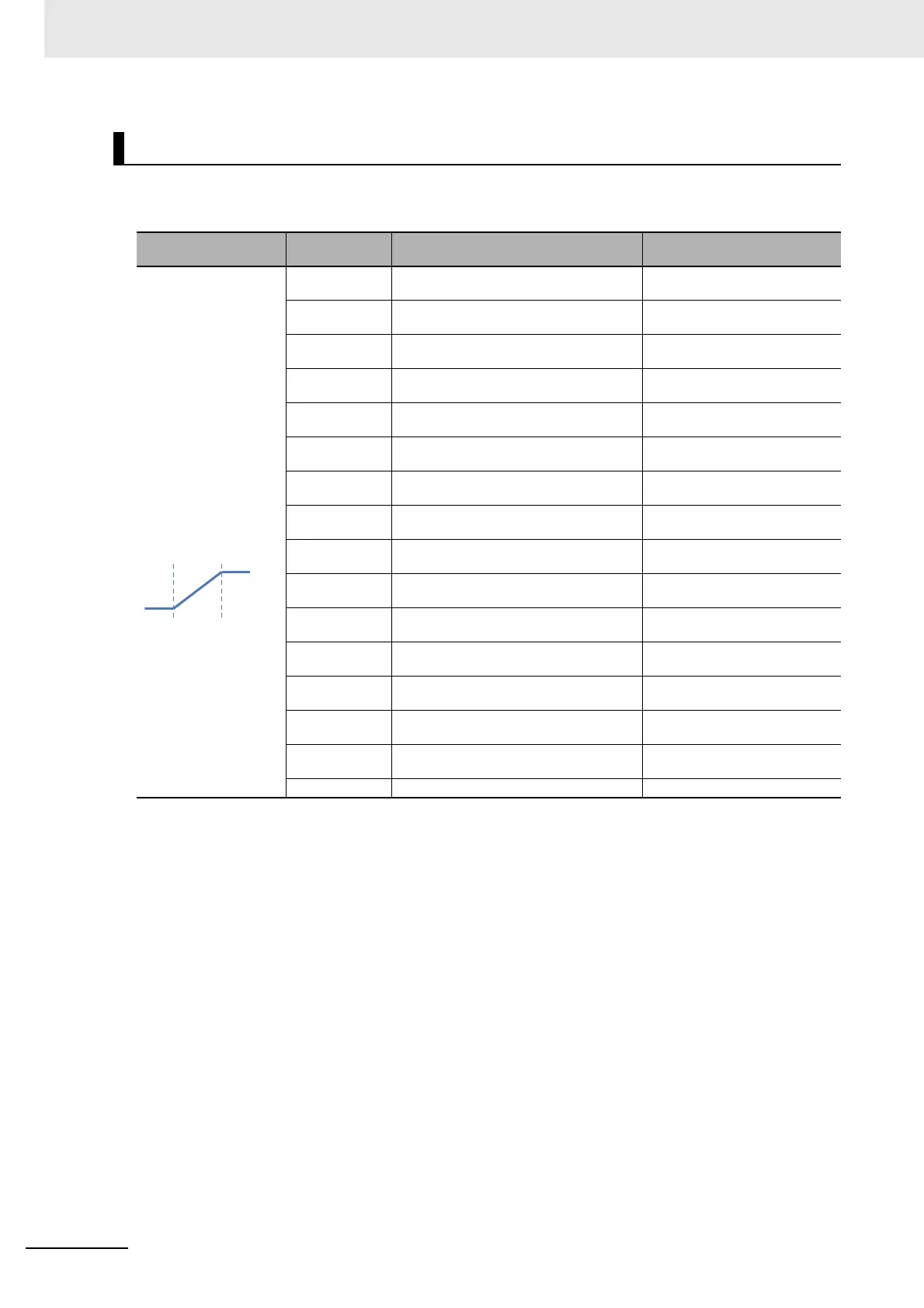

Acceleration or Deceleration Time Table
Setting state
Multi-speed
command
Command state
Acceleration or deceleration
time to be used
The frequency after a
speed is ON will be
higher than the speed
before that.
To the accelerating state
1st speed ON
Multi-speed 1st speed [Ab-11] > Frequency
before 1st speed is ON
Acceleration time for multi-speed
1st speed [AC-30]
2nd speed ON
Multi-speed 2nd speed [Ab-12] > Fre-
quency before 2nd speed is ON
Acceleration time for multi-speed
2nd speed [AC-34]
3rd speed ON
Multi-speed 3rd speed [Ab-13] > Frequency
before 3rd speed is ON
Acceleration time for multi-speed
3rd speed [AC-38]
4th speed ON
Multi-speed 4th speed [Ab-14] > Frequency
before 4th speed is ON
Acceleration time for multi-speed
4th speed [AC-42]
5th speed ON
Multi-speed 5th speed [Ab-15] > Frequency
before 5th speed is ON
Acceleration time for multi-speed
5th speed [AC-46]
6th speed ON
Multi-speed 6th speed [Ab-16] > Frequency
before 6th speed is ON
Acceleration time for multi-speed
6th speed [AC-50]
7th speed ON
Multi-speed 7th speed [Ab-17] > Frequency
before 7th speed is ON
Acceleration time for multi-speed
7th speed [AC-54]
8th speed ON
Multi-speed 8th speed [Ab-18] > Frequency
before 8th speed is ON
Acceleration time for multi-speed
8th speed [AC-58]
9th speed ON
Multi-speed 9th speed [Ab-19] > Frequency
before 9th speed is ON
Acceleration time for multi-speed
9th speed [AC-62]
10th speed ON
Multi-speed 10th speed [Ab-20] > Fre-
quency before 10th speed is ON
Acceleration time for multi-speed
10th speed [AC-66]
11th speed ON
Multi-speed 11th speed [Ab-21] > Fre-
quency before 11th speed is ON
Acceleration time for multi-speed
11th speed [AC-70]
12th speed ON
Multi-speed 12th speed [Ab-22] > Fre-
quency before 12th speed is ON
Acceleration time for multi-speed
12th speed [AC-74]
13th speed ON
Multi-speed 13th speed [Ab-23] > Fre-
quency before 13th speed is ON
Acceleration time for multi-speed
13th speed [AC-78]
14th speed ON
Multi-speed 14th speed [Ab-24] > Fre-
quency before 14th speed is ON
Acceleration time for multi-speed
14th speed [AC-82]
15th speed ON
Multi-speed 15th speed [Ab-25] > Fre-
quency before 15th speed is ON
Acceleration time for multi-speed
15th speed [AC-86]
No multi-speed Other than those above Acceleration time [AC120]
Acceleration time for
multi-speed Mth speed
Mth
speed
