6 Basic Parameter Settings
High-function General-purpose Inverter RX2 Series User’s Manual
6-7 Acceleration/Deceleration Settings
6
6-7-3 Switching of Acceleration or Deceleration Time with Multi-Speed Step
Example (1) If the multi-speed 3rd speed is engaged and the revolution is accelerating, the enabled
acceleration time is the acceleration time setting for Multispeed-3 [AC-38].
Example (2) If the multi-speed 1st speed is engaged and the revolution is decelerating, the enabled
deceleration time is the deceleration time setting for Multispeed-3 [AC-40] for the multi-speed 3rd
speed that has been engaged until the multi-speed 1st speed is engaged.

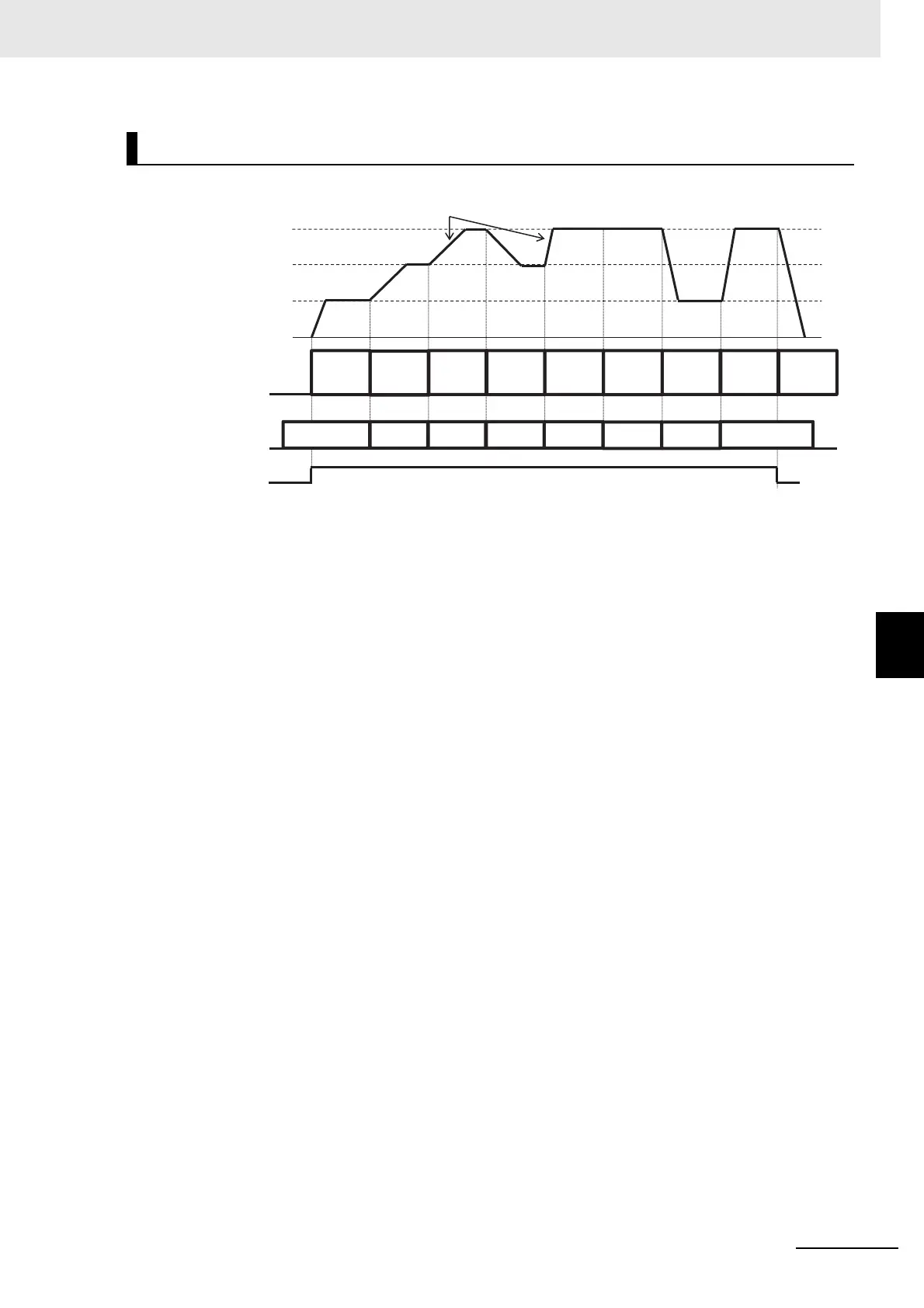

Exemplar Operation
FW
[AC-30]
[AC-34]
[AC-38]
[AC-40]
[AC-
42]
[AC
-
40]
[AC-42]
[AC-44]
If the set frequency is the same, only the acceleration or
deceleration time can be changed.
3rd speed [Ab-13], 4th speed [Ab-14]
2nd speed [Ab-12]
1st speed [Ab-11]
Output
frequency
Acceleration or
deceleration
time
Multiple
speeds
1st speed
2nd speed 3rd speed 3rd speed2nd speed 4th speed 1st speed
4th speed
1st speed
acceleration
2nd speed
acceleration
3rd speed
acceleration
3rd speed
deceleration
4th speed
acceleration
Command
unchanged
3rd speed
deceleration
4th speed
acceleration
4th speed
deceleration
Example (1)
Example (2)
