Omron RX2 Series User Manual

6 Basic Parameter Settings
6 - 62
High-function General-purpose Inverter RX2 Series User’s Manual

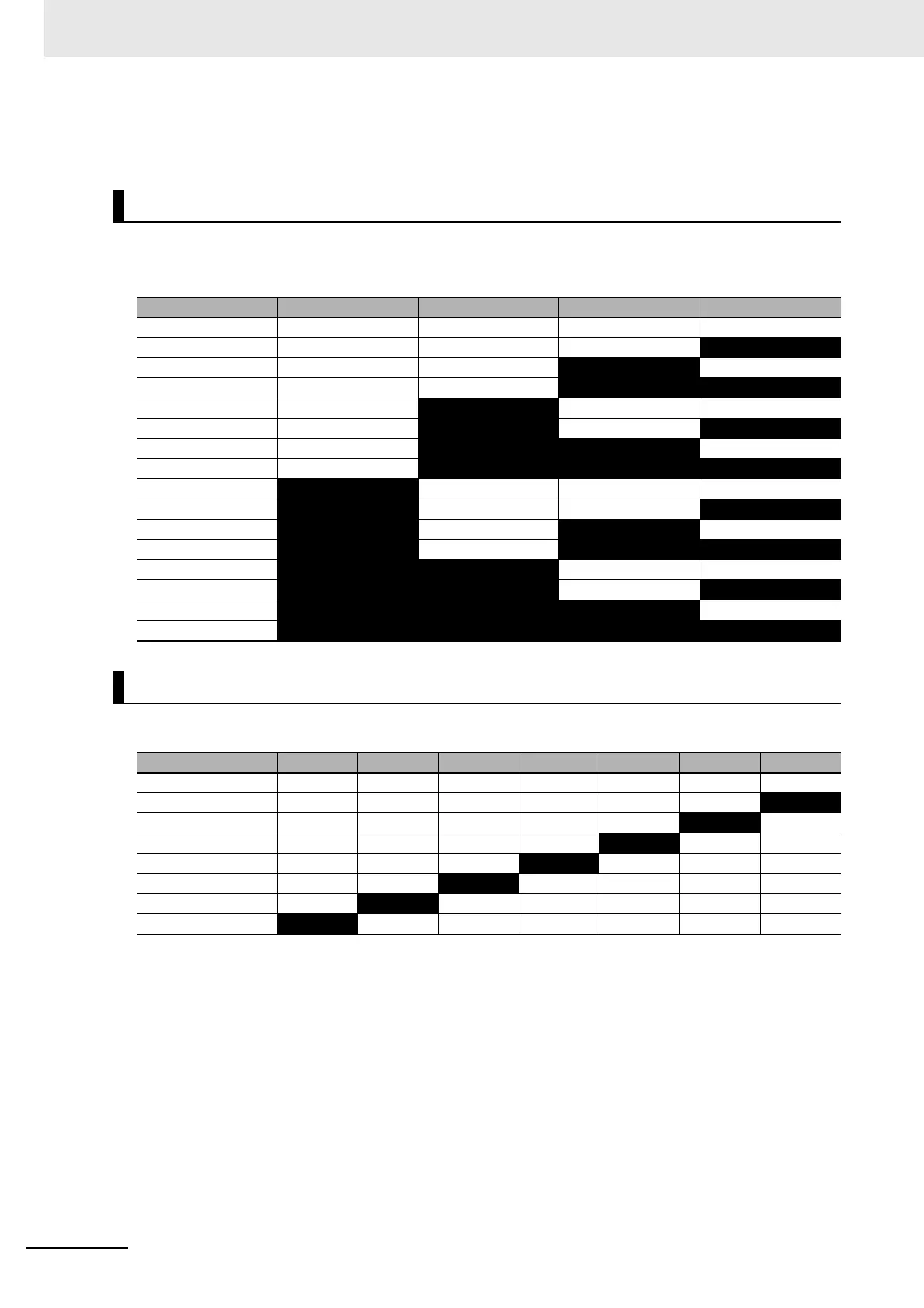

Shown below are the multi-speed table for binary operation (when [Ab-03] = 00) and that for bit opera-
tion (when [Ab-03] = 01).
[Ab-03]=00.
Input terminal function 003 [CF1] to 006 [CF4]
[Ab-03] = 01; Input terminal function 007 [SF1] to 013 [SF7]
Table for Binary Operation
Multiple speeds CF4 CF3 CF2 CF1
0th speed OFF OFF OFF OFF
1st speed OFF OFF OFF
ON
2nd speed OFF OFF
ON OFF
3rd speed OFF OFF
ON ON
4th speed OFF
ON OFF OFF
5th speed OFF
ON OFF ON
6th speed OFF
ON ON OFF
7th speed OFF
ON ON ON
8th speed ON OFF OFF OFF
9th speed
ON OFF OFF ON
10th speed
ON OFF ON OFF
11th speed ON OFF ON ON
12th speed
ON ON OFF OFF
13th speed
ON ON OFF ON
14th speed ON ON ON OFF
15th speed
ON ON ON ON
Table for Bit Operation
Multiple speeds SF7 SF6 SF5 SF4 SF3 SF2 SF1
0th speed OFF OFF OFF OFF OFF OFF OFF
1st speed ------
ON
2nd speed - - - - -
ON OFF
3rd speed - - - -
ON OFF OFF
4th speed - - -
ON OFF OFF OFF
5th speed - -
ON OFF OFF OFF OFF
6th speed -
ON OFF OFF OFF OFF OFF
7th speed
ON OFF OFF OFF OFF OFF OFF
