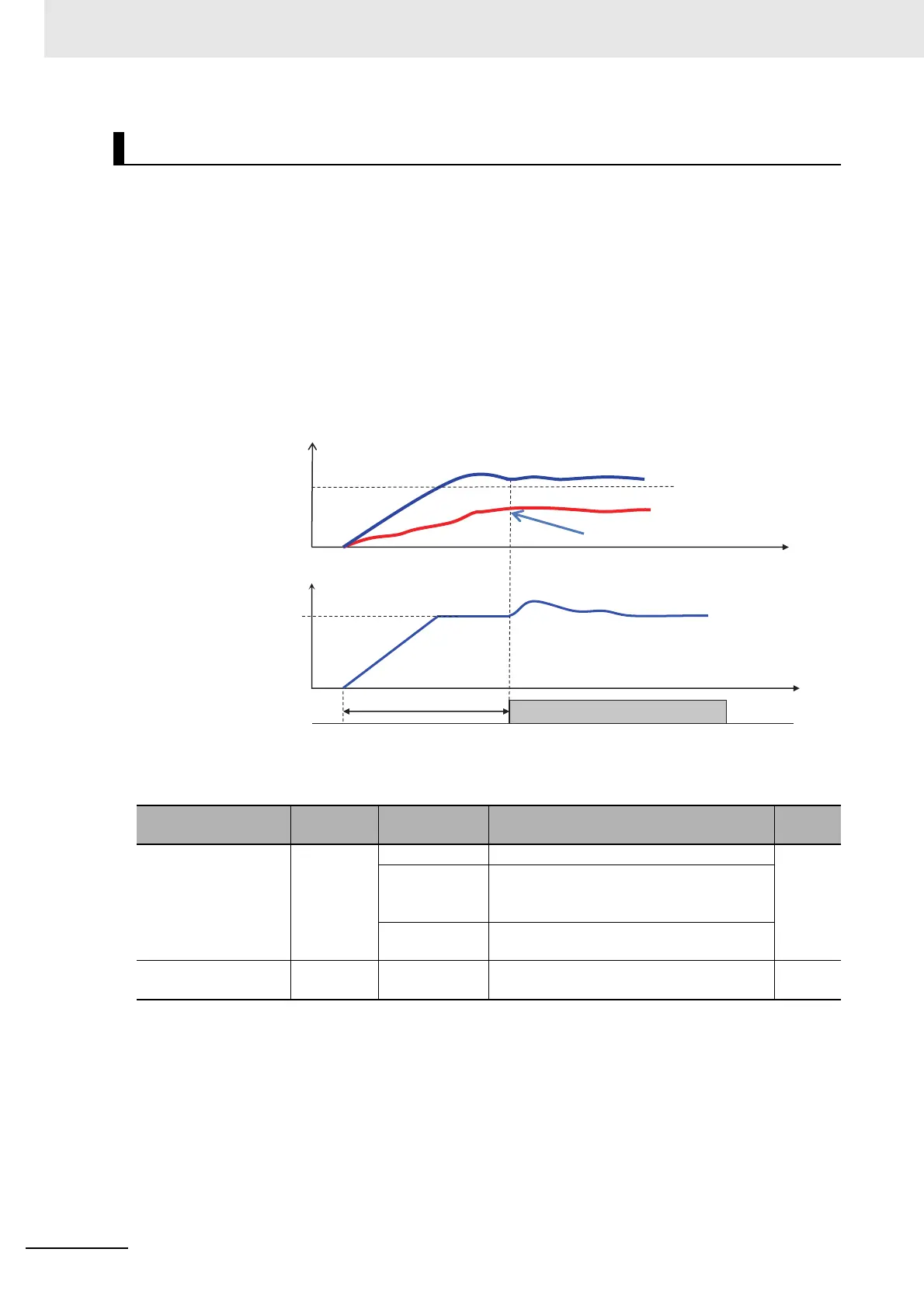

It is a function to detect breakage of pipes such as water leakage.
Abnormality will be judged when PID-FB value is lower than [AH-82] PID start abnormality judgment
level after the elapse of [AH-80] soft-start time following PID soft-start.
Abnormal operations vary depending on the setting of [AH-81] PID start abnormality judgment imple-
mentation selection at the time of abnormality judgment.
• Nothing will be done when [AH-81] is 00.
• When [AH-81] is 01, it will trip with [E120] PID start abnormality error after the abnormal status
elapsed the set time for [AH-80].
• When [AH-81] is 02, the [SSE] terminal will be turned ON after the abnormal status elapsed the
set time of [AH-80].
The [SSE] terminal will stay ON until it stops.
 Parameter
PID Start Abnormal Judgment
Item Parameter Data Description
Default
data
PID soft start error
detection enable
[AH-81]
00 Disable
00
01
Enable It will trip with [E120] PID start abnor-
mality error when start abnormality is
judged.
02
Enable The [SSE] terminal will be turned ON
when start abnormality is judged.
PID soft start error
detection level
[AH-82]
0.00 to
100.00(%)
Is a level to judge start abnormality. 0.00
ON
OK
NG
PID operation
PID start abnormality
judgment level [AH-82]
Feedback value
Soft-start time [AH-80]
Time
Acceleration according to [AH-78]
Abnormality occurrence
Soft-start
target level [AH-76]
Output Frequency
