Omron RX2 Series User Manual

8 Applied Settings
8 - 32
High-function General-purpose Inverter RX2 Series User’s Manual

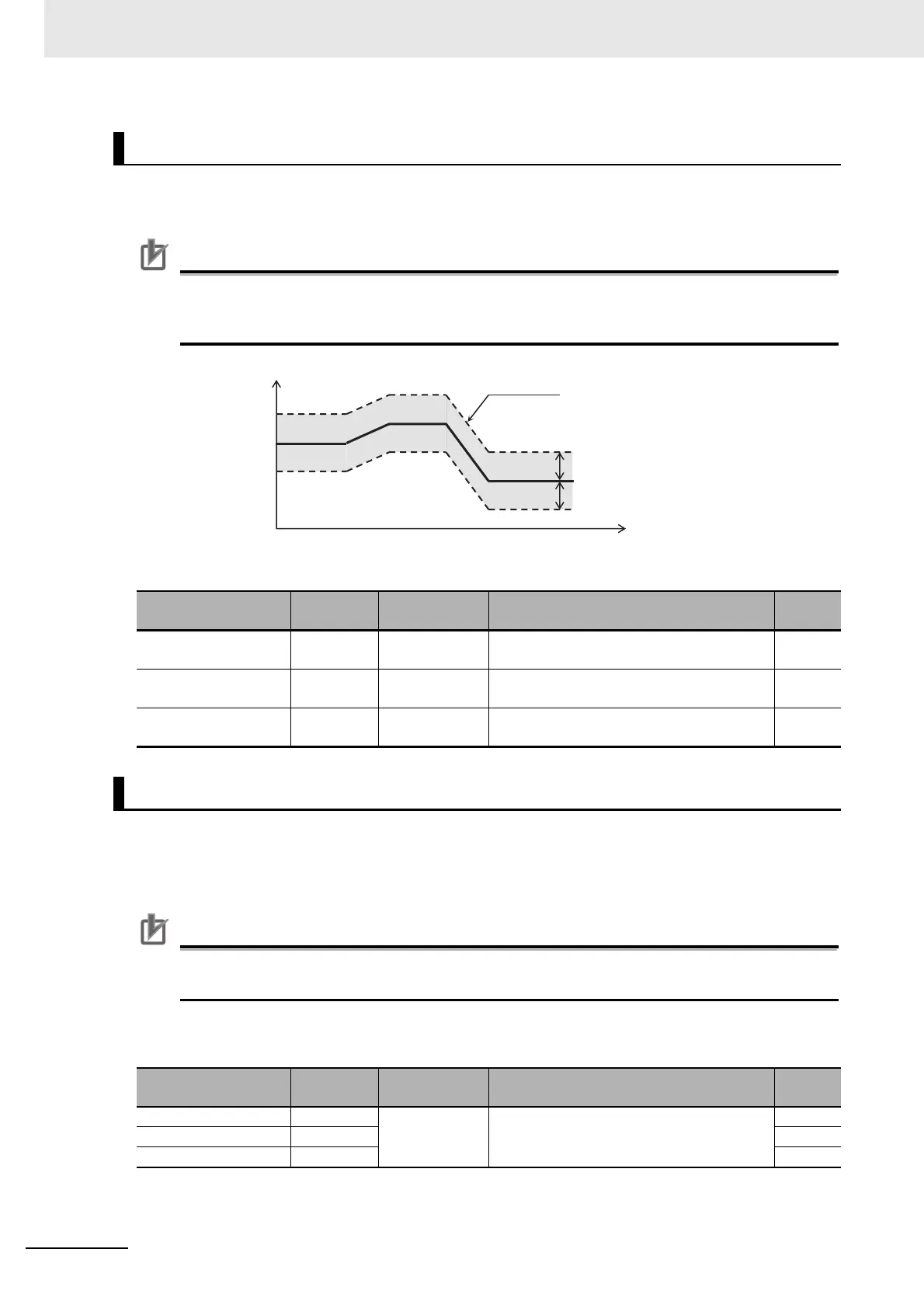

PID output is restricted to a changeable range based on the target value.
The limitation function of PID for which 0.00 was set for the following changeable range will be disabled.
Precautions for Correct Use
In the case of using this function, set the corresponding PID changeable range
([AJ/16]/[AJ-36]/[AJ-56]). Restriction will be set with the maximum speed as 100% (PID target
value ± changeable range).
 Parameter
In normal PID control, the inverter does not output a negative figure for frequency command and limits
at 0 Hz. If you select 02 (with reverse output) for each selection [AJ-01]/[AJ-21]/[AJ-41] of
PID2/PID3/PID4, frequency command can be output in a reverse direction, if the result of the corre-
sponding PID calculation was negative.
Precautions for Correct Use
When [AJ-01]/[AJ-21]/[AJ-41] is set to 02 (with reverse output), the PID changeable range limit
function [AJ-16]/[AJ-36]/[AJ-56] will be extended to the negative direction.
 Parameter
PID2/PID3/PID4 Changeable Range Limitation
Item
Terminal
name
Data Description
Default
data
PID2 output range [AJ-16]
0.00 to
100.00(%)
Changeable range based on PID2 target
value
0.00
PID3 output range [AJ-36]
0.00 to
100.00(%)
Changeable range based on PID3 target
value
0.00
PID4 output range [AJ-56]
0.00 to
100.00(%)
Changeable range based on PID4 target
value
0.00
PID2/PID3/PID4 Reverse Output
Item
Terminal
name
Data Description
Default
data
PID2 enable [AJ-01]
02
Enable (if command becomes negative, it
outputs in a reverse direction)
00
PID3 enable [AJ-21] 00
PID4 enable [AJ-41] 0
PID2/
PID3/
PID4
PID changeable range [AJ-16]/[AJ-36]/[AJ-56]
PID changeable range [AJ-16]/[AJ-36]/[AJ-56]
Time (s)
PID output
range
PID output (%)
PID target value
