Omron RX2 Series User Manual

11 Options
11 - 40
High-function General-purpose Inverter RX2 Series User’s Manual
3G3AX-NFI27/NFI28/NFI29/NFI48/NFI49/NFI4A
Model
Dimensions [mm]
A B C D E F G H J J2 K L M N P W
3G3AX-
NFI27
217 200 185 170 120 90 44 115 85 82 20
R2.75
Length 7
5.5
dia.
M6 M4 17
3G3AX-
NFI28
254 230 215 200 150 120 57 115 80 75 30
R3.75
Length 8
6.5
dia.
M8 M6 23
3G3AX-
NFI29
314 300 280 260 200 170 57 130 90 85 35
R3.75
Length 8
6.5
dia.
M8 M6 23
3G3AX-
NFI48
217 200 185 170 120 90 44 115 85 85 20
R2.75
Length 7
5.5
dia.
M6 M4 17
3G3AX-
NFI49
254 230 215 200 150 120 57 115 80 75 30
R3.75
Length 8
6.5
dia.
M8 M6 23
3G3AX-
NFI4A
314 300 280 260 200 170 57 130 90 85 35
R3.75
Length 8
6.5
dia.
M8 M6 23

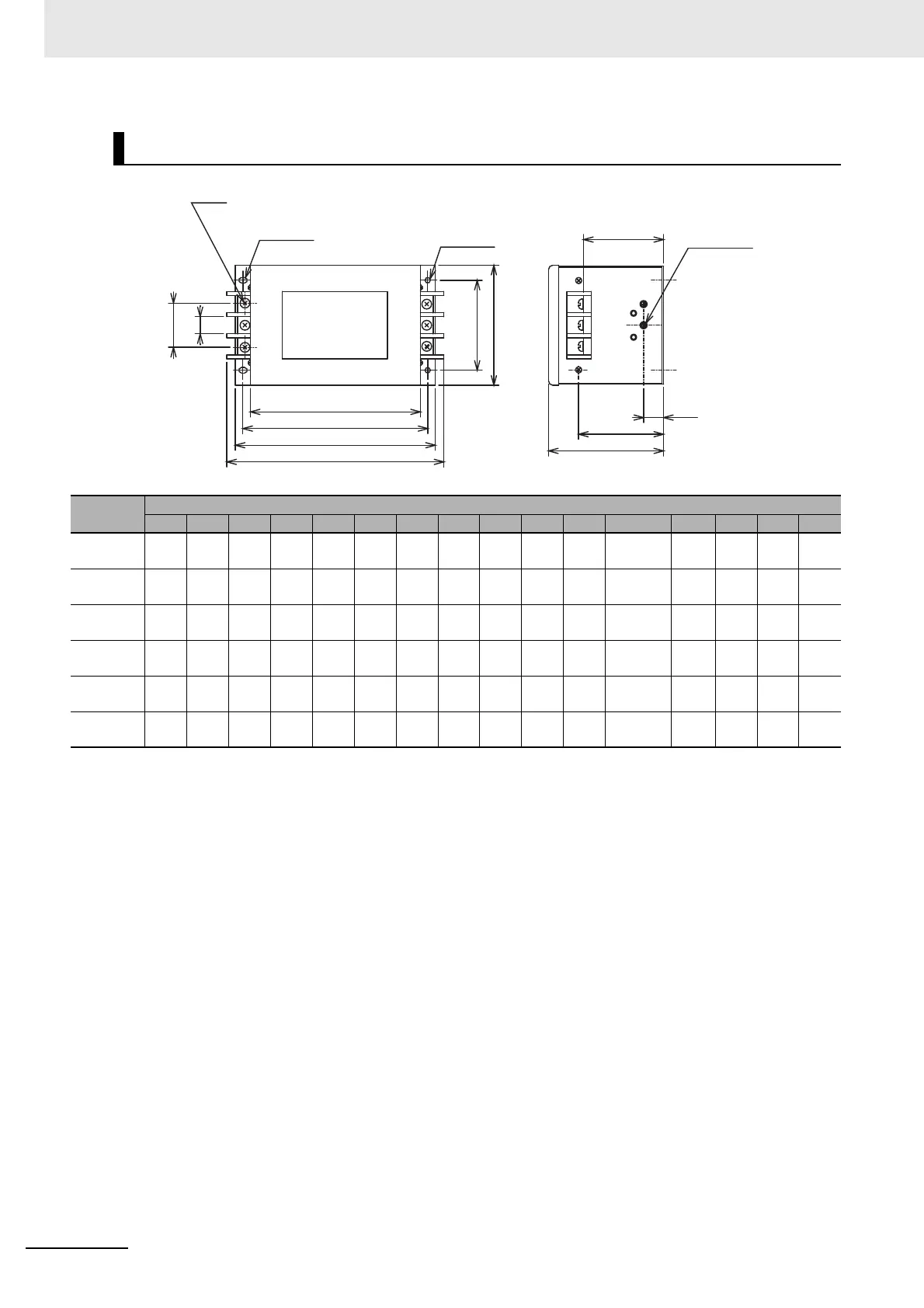

IN
IN
Inverter side
A
6-N
G
Power supply side
L1' L2' L3'
B
C
D
F
E
W
2-L
2-M
J
H
J2
K
Ground
terminal P
L3 L2 L1
