Programmable Phase Shift: ±5ns to 500ms with 5ns resolution
Maximum Number of Cards: 6
Ordering Information: 1204-19 1PPS 10V output module, BNC connector

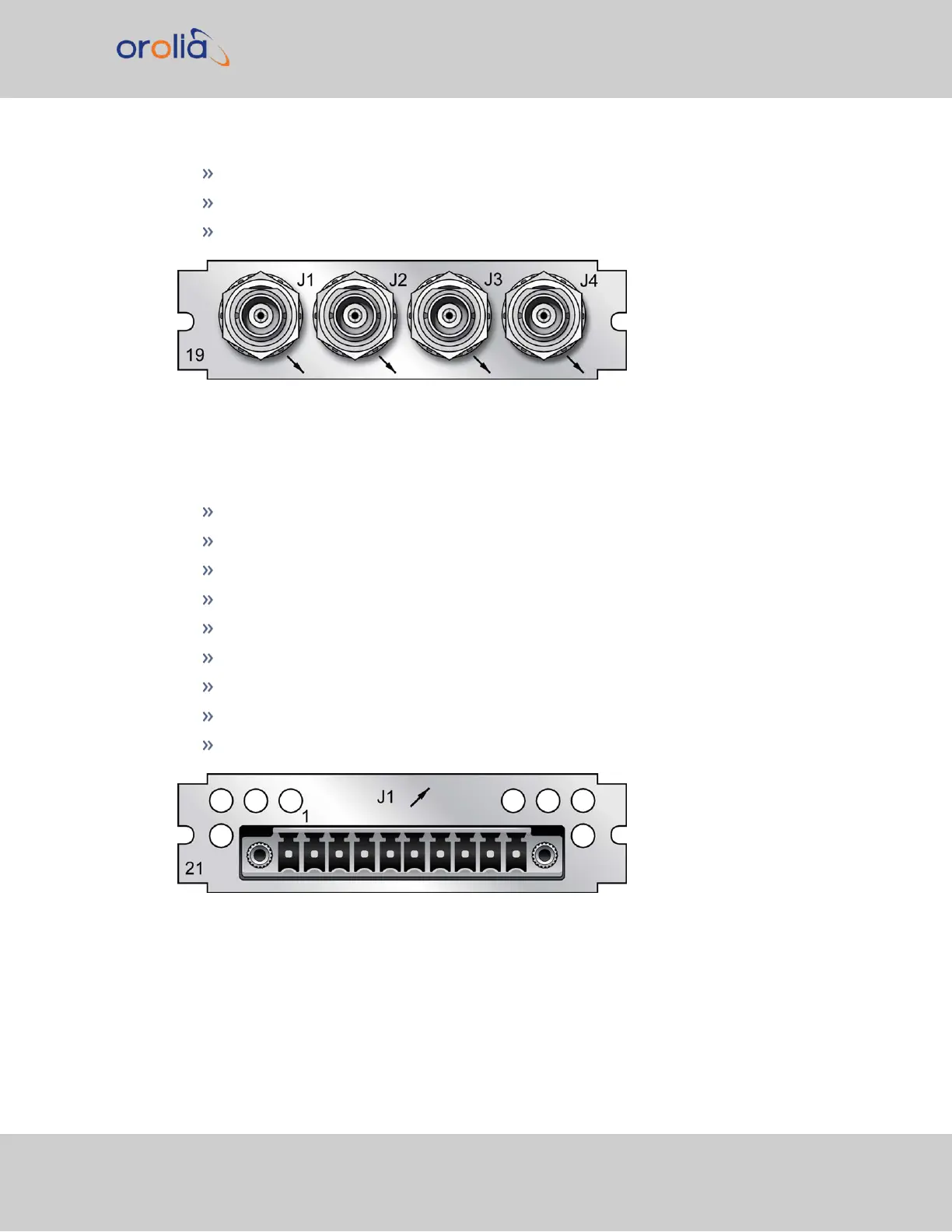

Figure 5-12: Model 1204-19 option card rear plate
Model 1204-21 1PPS Output (RS-485): Specifications
Inputs/Outputs: (4) 1PPS output
Signal Type and Connector: RS-485 (terminal block)
Output Load Impedance: 120Ω
Rise Time to 90% of Level: <10ns
Programmable Pulse Width: 100ns to 900ms with 20ns resolution
Absolute Phase Error: ±50ns (1σ)
Programmable Phase Shift: ±5ns to 500ms with 5ns resolution
Maximum Number of Cards:6
Ordering Information: 1204-21 1PPS RS-485 output module, terminal block
Figure 5-13: Model 1204-21 option card rear plate
SecureSync 2400 User Manual 355
