Model 1204-21 terminal block pin assignments
Pin No. Function
1 1PPS Output 1 +
2 1PPS Output 1 -
3 GND
4 1PPS Output 2 +
5 1PPS Output 2 -
6 1PPS Output 3 +
7 1PPS Output 3 -
8 GND
9 1PPS Output 4 +
10 1PPS Output 4 -

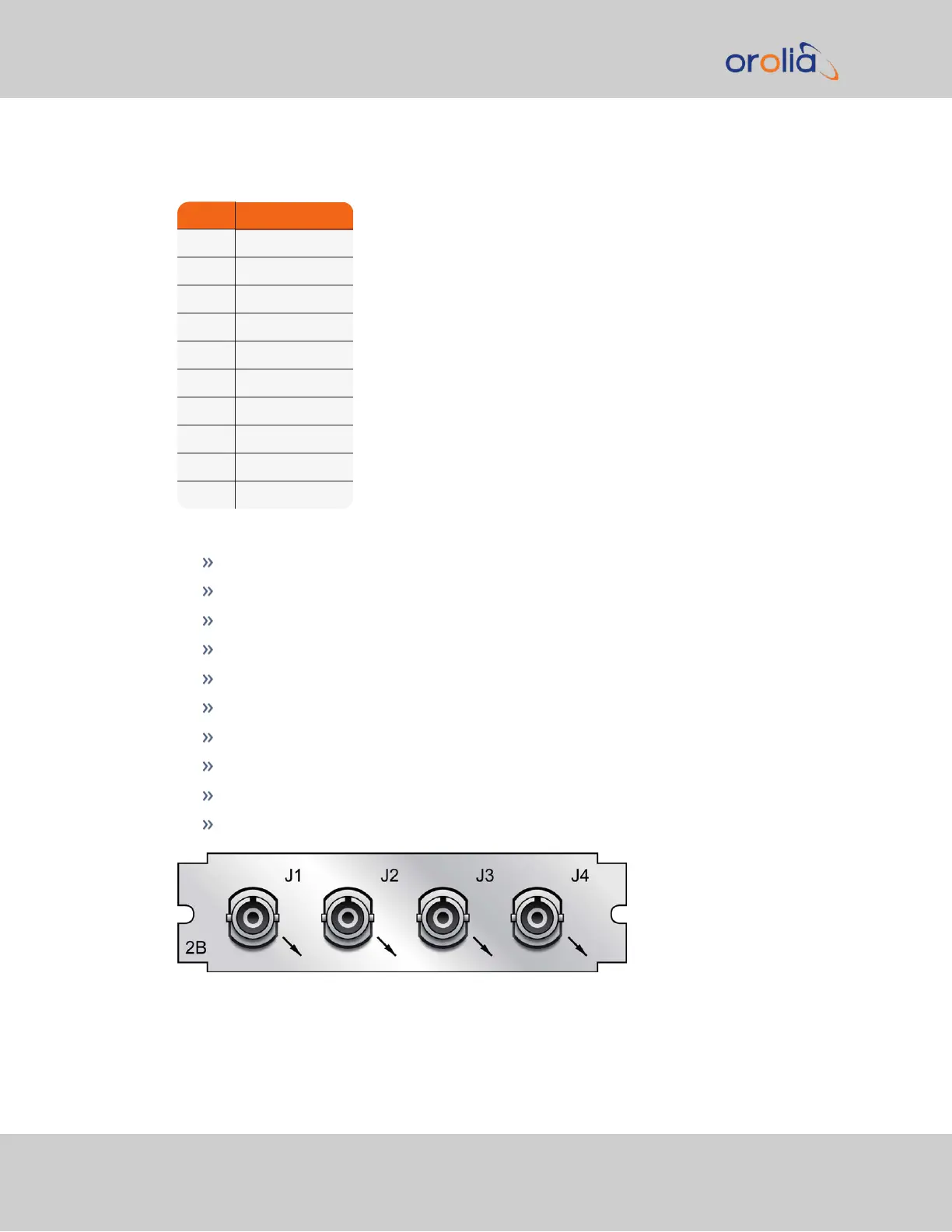

Model 1204-2B 1PPS Output (Fiber Optical): Specifications
Inputs/Outputs: (4) 1PPS output
Operating Wavelength: 820/850nm
Optical Power: -15dBm average into 50/125 fiber
Fiber Optic Compatibility: 50/125μm, 62.5/125μm multi-mode cable
Optical Connector: ST
Programmable Pulse Width: 100ns to 900ms with 20ns resolution
Absolute Phase Error: ±50ns (1σ)
Programmable Phase Shift: ±5ns to 500ms with 5ns resolution
Maximum Number of Cards: 6
Ordering Information: 1204-12B 1PPS Fiber Optic output module, ST connector
356 SecureSync 2400 User Manual
APPENDIX
