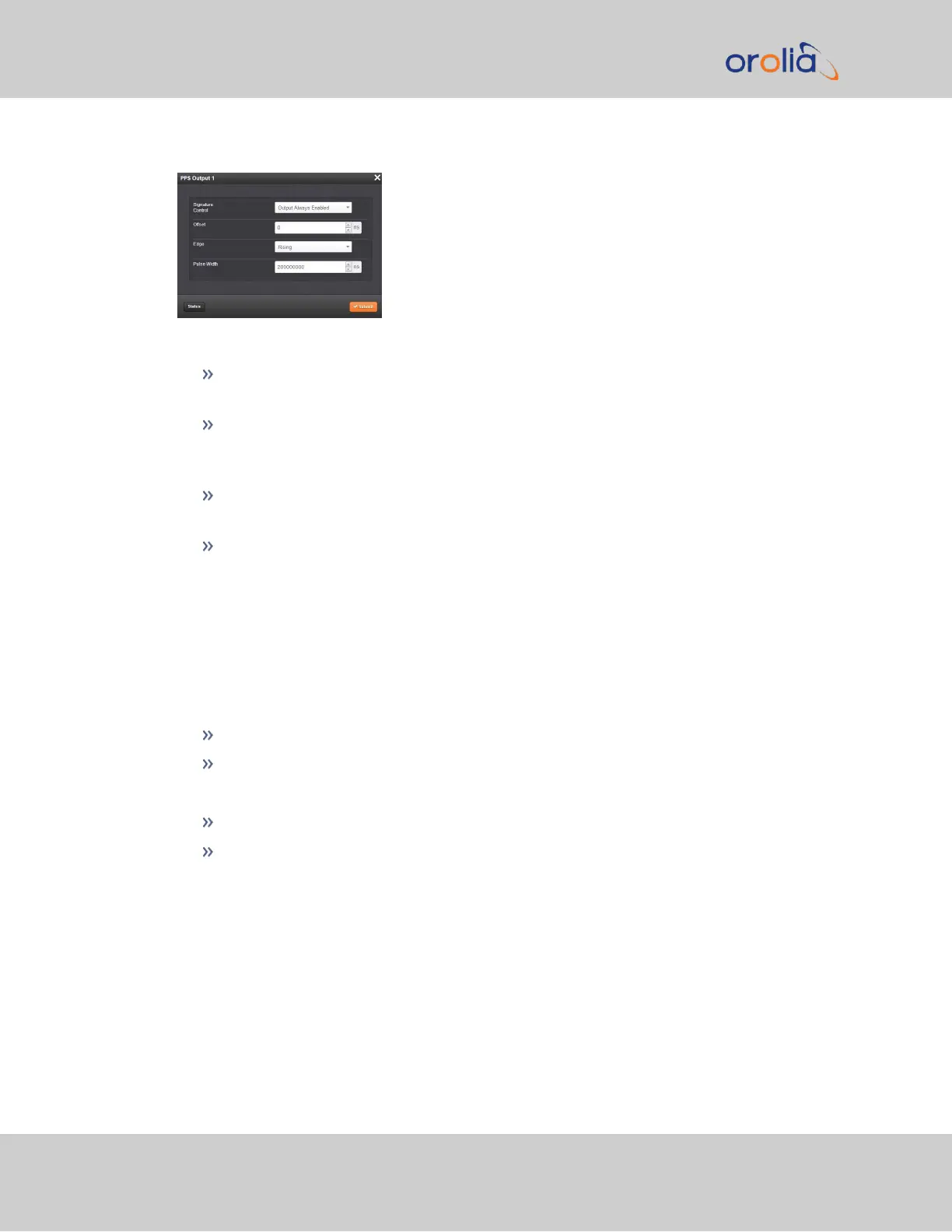

The fields available are:
Signature Control: Used to control when the 1PPS output signal will be present.
See: "Signature Control" on page161.
Offset: Used to account for 1PPS cable delays or other latencies in the 1PPS output.
The Offset value is entered and displayed in nanoseconds (ns). The available Offset
range is -500 to +500ms.
Edge: The operator can select if the output signal is a positive (reference on the
rising edge) or a negative (reference on the falling edge) pulse.
Pulse Width: Configures the Pulse Width of the 1PPS output. The Pulse Width is
entered and displayed in nanoseconds (ns). The default Pulse Width is 200 mil-
liseconds.
1PPS Output: Status Window
To view the current settings of a 1PPS output, go to its Status window. For instructions,
see: "Viewing Input/Output Configuration Settings" on page334.
The Web UI list entries for these cards are:
1PPS In/Out
1PPS In/Out, Fiber
The connector numbers are:
J2, J3, J4 (model -28)
J2, J3 (model -2A)
360 SecureSync 2400 User Manual
APPENDIX
