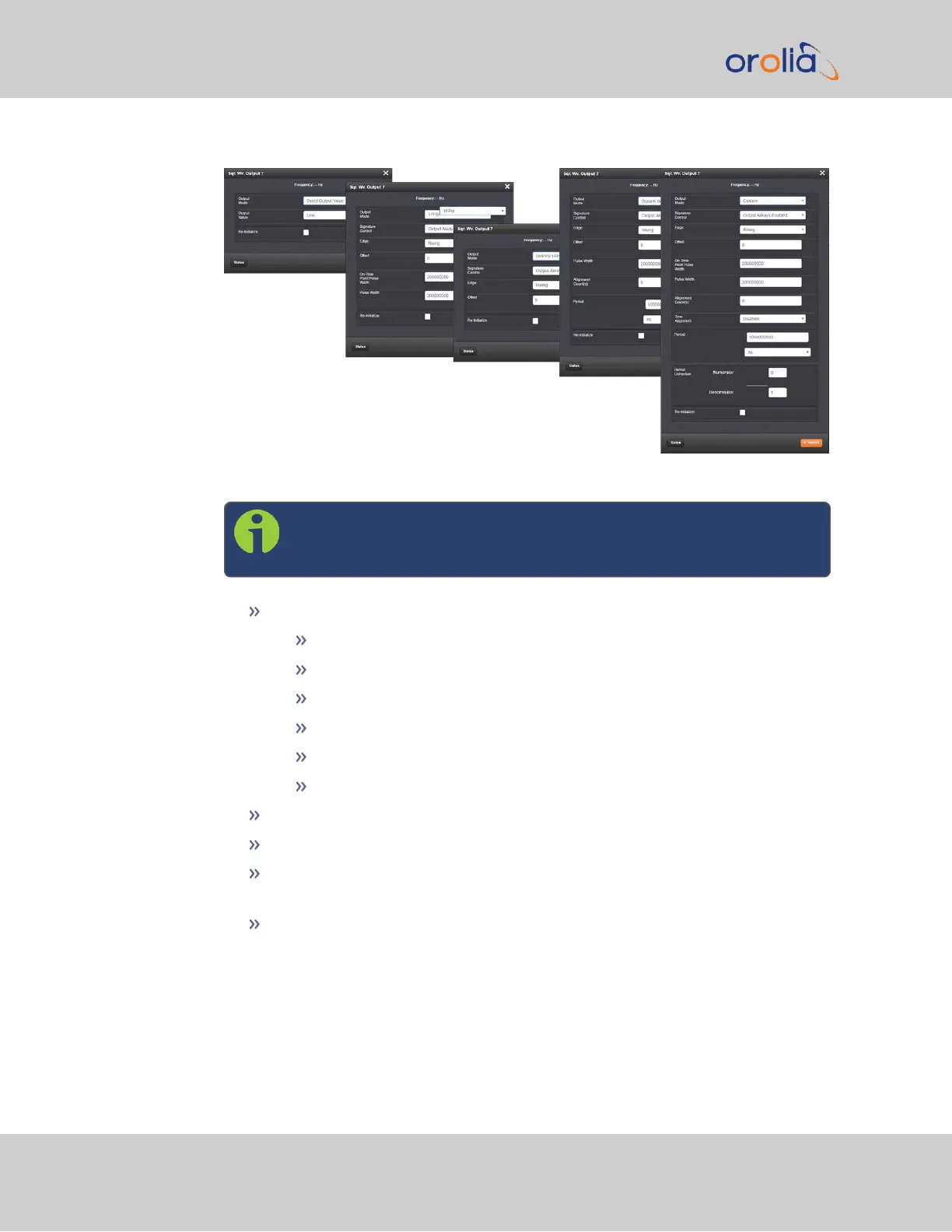

The Edit window allows the configuration of the following settings:
Note: The fields viewable are contextually determined according to
the Output Mode.
Output Mode:
Direct Output Value
1PPS
1PPM
5MPPS/1PPS
Square Wave
Custom
Output Value: Determines the output level (Low or High).
Re-Initialize: Re-initializes square wave generation and aligns to 1PPS.
Signature Control: Controls when the output will be present. See also: "Sig-
nature Control" on page161.
Edge: Used to determine if the on-time point of the output is the Rising or
Falling edge of the signal.
380 SecureSync 2400 User Manual
APPENDIX
