Screen" on page166 for more information on how to configure and read the Sys-
tem Time). Local timescale allows a Local Clock to apply a time offset for Time Zone
and DST correction.
A Local Clock can be set up through the Time Management page: This
option will appear under the name of the local clock you have set up. See for
more information. Local timescale allows a Local Clock to apply a time offset
for Time Zone and DST correction.
The incoming input time information may be provided as local time, but Sys-
tem Time may be configured as UTC time, so internal computations need to
be performed. With the Timescale field set to “Local”, select the name of a
previously created Local Clock. The Time Zone and DST rules, as configured
in the Local Clock will be applied to the front panel time display. See for more
information on Local Clocks.
Baud Rate: Determines the speed at which the output port will operate.
Data Bits: Defines the number of Data Bits for the output port.
Parity: Configures the parity checking of the output port.
Stop Bits: Defines the number of Stop Bits for the output.

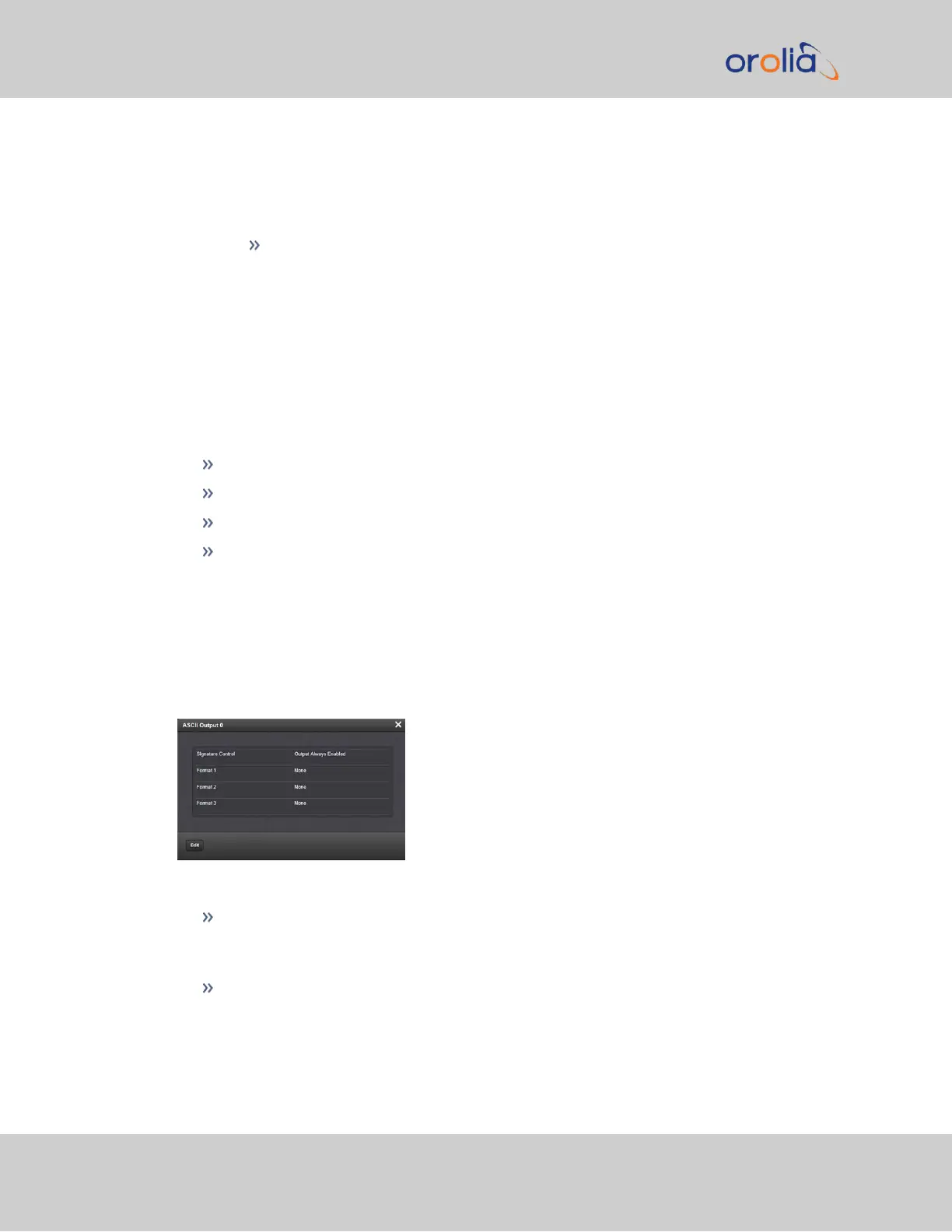

ASCII Time Code Output: Status Window
To view the current settings of the ASCII Output, go to its Status window. For instruc-
tions, see: "Viewing Input/Output Configuration Settings" on page334.
The Web UI list entries for this card are: ASCII TIMECODE RS-232 and ASCII TIMECODE
RS-485.
The Status window displays the following settings:
Signature Control: Indicates whether Signature Control is enabled (Signature Con-
trol determines when the ASCII data stream will be enabled to be present). See also:
"Signature Control" on page161.
Format 1: Indicates the configured format of the ASCII time code input data stream.
