Orolia SecureSync 2400 User Manual

Format 2: Indicates the configured format of the second consecutive ASCII time
code input data stream.
Format 3: Indicates the configured format of the third consecutive ASCII time code
input data stream.

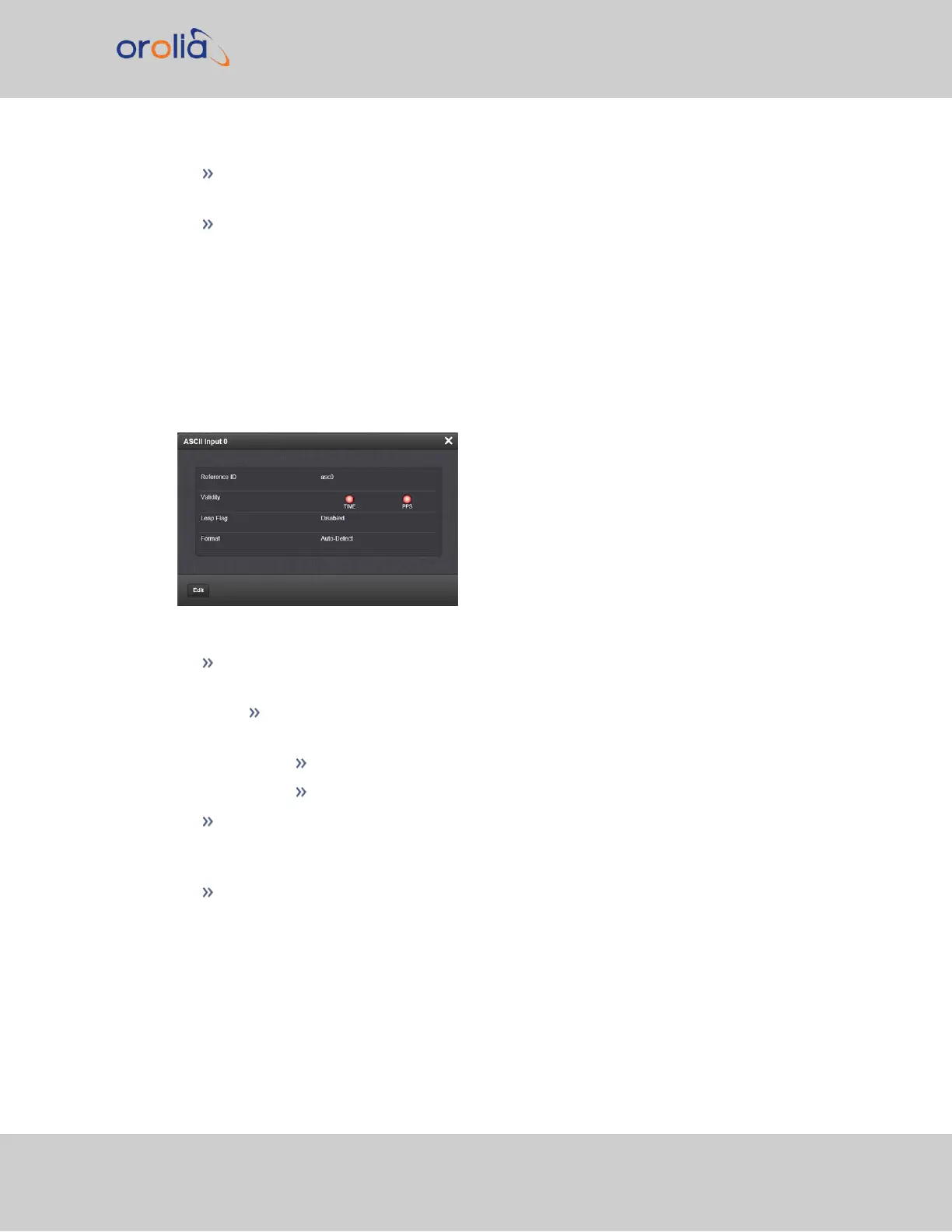

ASCII Time Code Input: Status Window
To view the current settings of the ASCII Input (also referred to as ‘Reference’), go to its
Status window. For instructions, see: "Viewing Input/Output Configuration Settings" on
page334.
The Web UI list entries for this card are: ASCII TIMECODE RS-232 and ASCII TIMECODE
RS-485.
The Status window displays the following settings:
Reference ID: Indicates the letters used in the Input Reference Priority table for this
particular input reference.
Validity: Indicates whether the ASCII input data is present and considered
valid for Time and 1PPS references.
A green light indicates a valid reference.
An orange light indicates the reference is not considered valid.
Leap Flag: Displays whether the incoming data stream is indicating that a pending
leap second is to be added to the UTC timescale at the end of the month. See "Leap
Seconds" on page176.
Format: Indicates the configured format of the ASCII time code input data stream.
SecureSync 2400 User Manual 457
