Note: The supplied antenna cable is 2.4m (96") long. Longer cables
are available upon request. The antenna does not require a separate
power supply.
5.
Connect the antenna cable to the SecureSync unit via the SMA connector on the
option card -3E rear plate. The SecureSync can be in a powered off or a powered on
state during antenna installation.

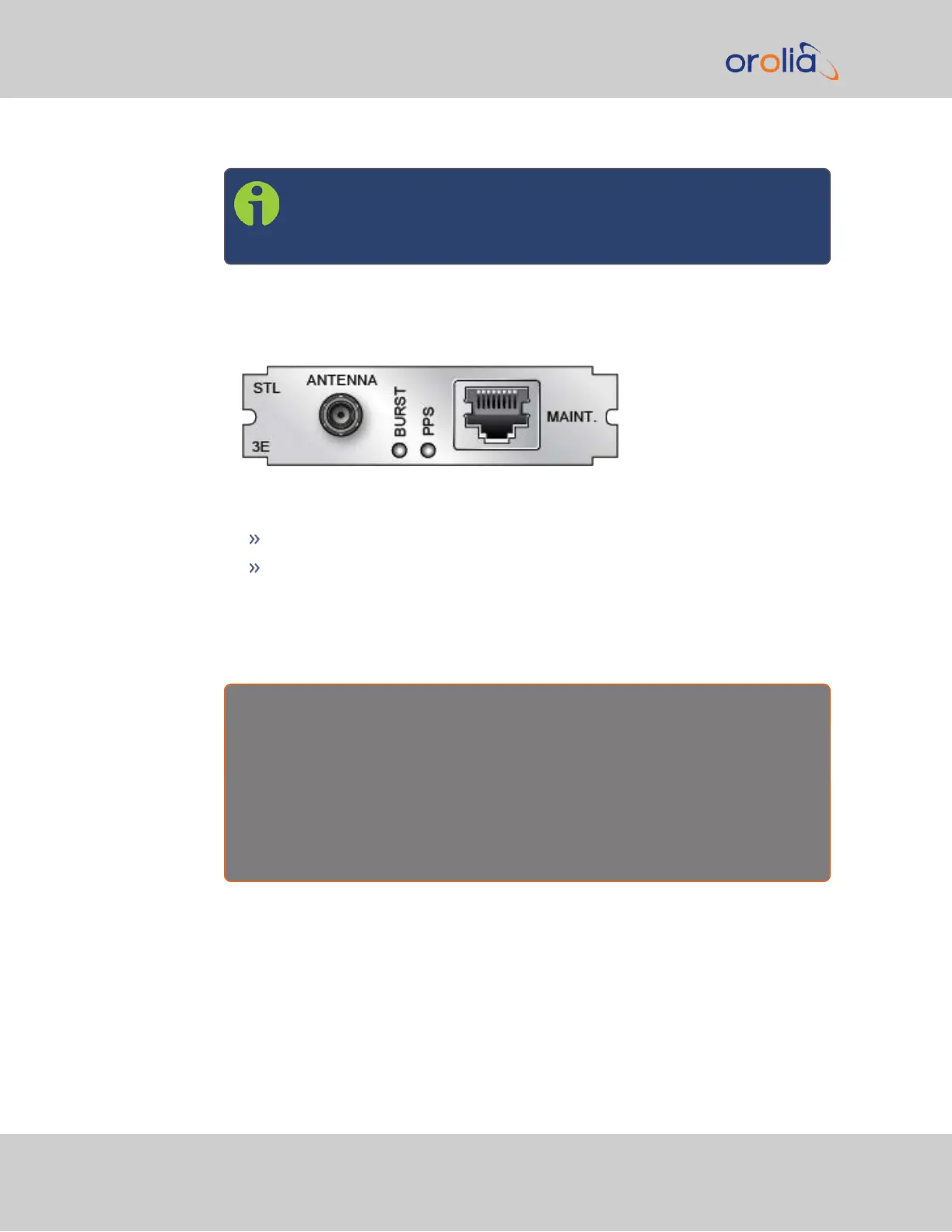

Figure 5-52: Model 1204-3E option card rear plate
If the unit is ON, verify that the BURST lamp is blinking.
If the unit is OFF, turn it on, and wait until the BURST lamp is blinking.
If the BURST lamp is not blinking after the subscription has been activated, the
STL receiver is not receiving an STL signal. Check the antenna cable and its con-
nections, and the antenna location. Move the antenna to another location (higher or
closer to an outside wall).
R e a r P l a t e L E D s :
BURST: Indicates the incoming STL burst rate. A high burst rate (desired) is indicated
by the LED flashing quickly.
PPS: Indicates that the STLreceiver is sending out a PPS signal to SecureSync. One (1)
pulse per second means that the receiver is locked. NOTE: It can take approximately 10
minutes or longer until the receiver is locked. This depends on the burst rate (see
"Burst Rate" on page485.)
Both LEDs have equivalent indicators in the Web UI STL 0 status window:
480 SecureSync 2400 User Manual
