Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-128
REP 12.7 Exit Sensor (CT-Q7)
Removal
1. Turn off the main power and disconnect the power cord.
2. Open Top Cover.

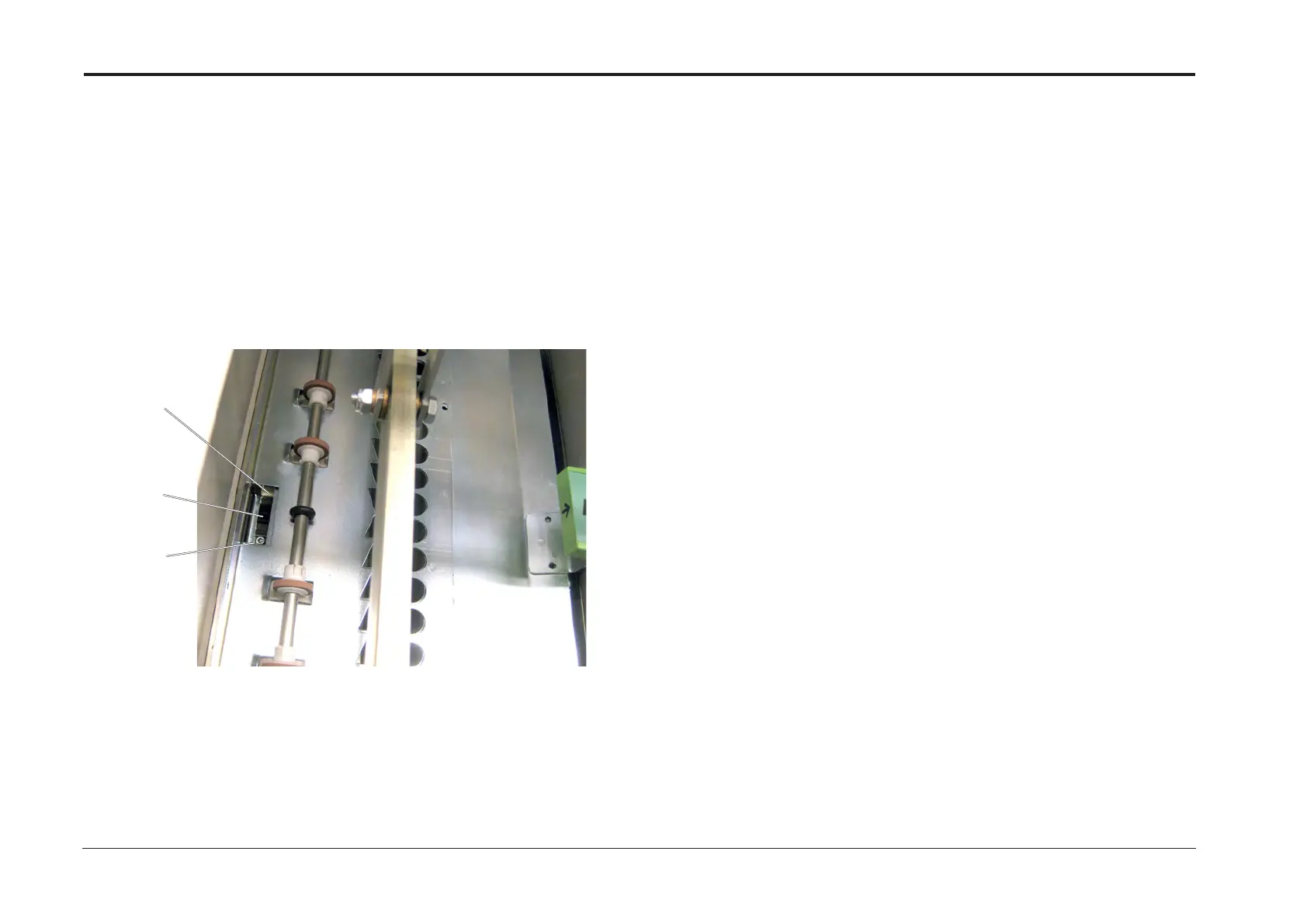

3. Remove the screw [A].
4. Disconnect the connector [B] .
5. Remove the Exit Sensor (CT-Q7) [C].
Parts List on PL 12.46
Replacement
1. Reverse removal procedure.
[A]
[B]
[C]
To Next Page
